9 Modular Machine Concept Example of the SIPLACE X4 NCH2 NCH1 NCH2 NCH1 C&P / T H X/HF MTC/X/HF C&P/TH NCH2 NCH1 NCH2 NCH1 PA1 PA2 C&P/TH MTC/X/HF X/HF C&P/TH BZ Buffer zone C&P Collect & Place he…

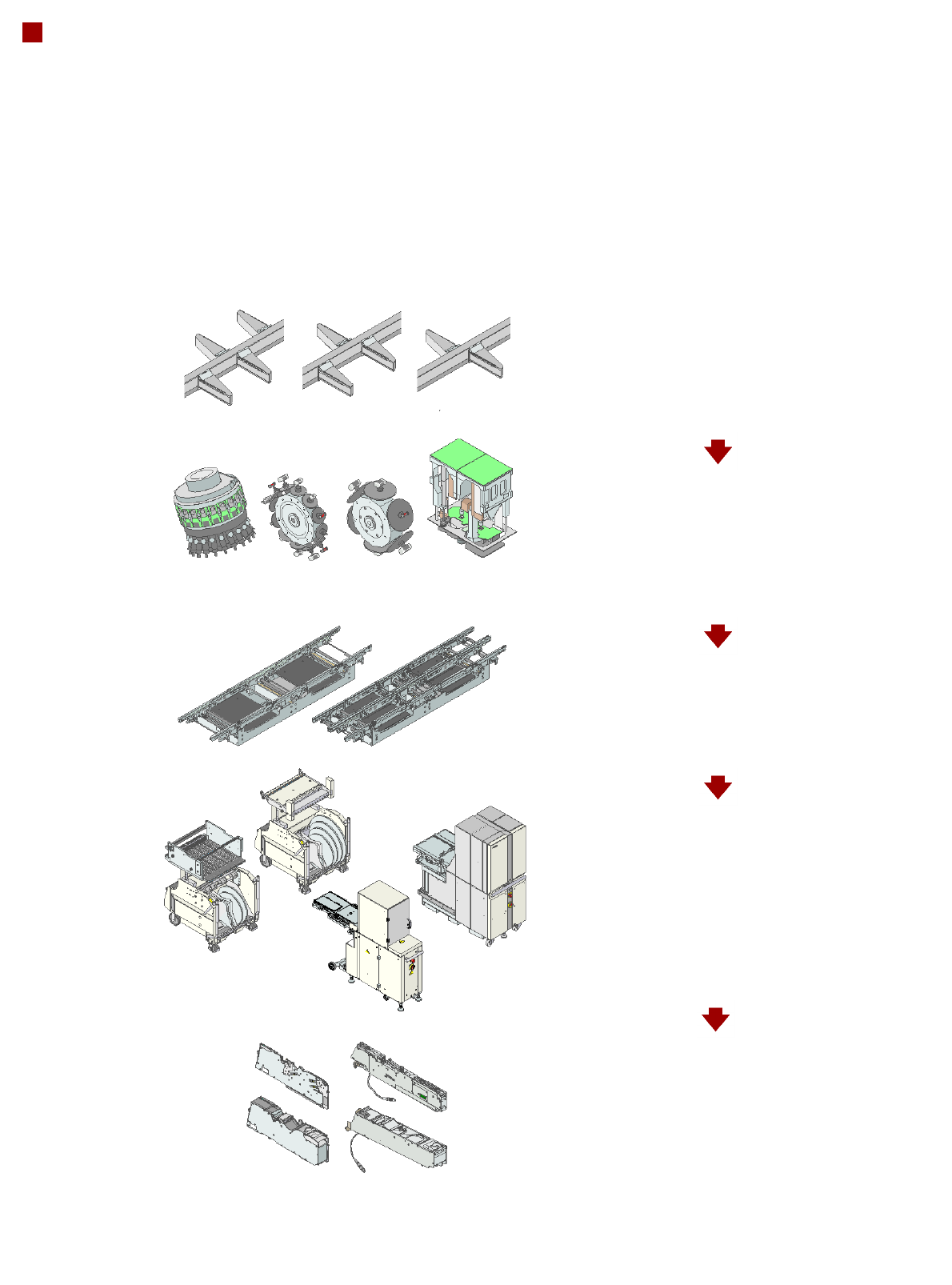

Modular Machine Concept

Step 1: Placement machine without heads and

component changeover tables

SIPLACE X4

SIPLACE X3

SIPLACE X2

Step 2: Selection of the placement heads

20-nozzle C&P head

12-nozzle C&P head

6-nozzle C&P head

TwinHead

Step 3: Selection of the conveyor

Single conveyor

Flexible dual conveyor

Step 4: Selection of the component

changeover tables, MTC, WPC

SIPLACE X component changeover table

SIPLACE HF component changeover table

MTC

WPC

Step 5: Selection of the feeder modules

X tape feeder modules

S tape feeder modules

Label presenter module

Reject conveyor

Linear vibratory feeder

Waffle-pack tray holder

Modular Machine Concept

Example of the SIPLACE X4

NCH2

NCH1

NCH2

NCH1

C&P/TH

X/HF

MTC/X/HF

C&P/TH

NCH2

NCH1

NCH2

NCH1

PA1

PA2

C&P/TH

MTC/X/HF

X/HF

C&P/TH

BZ Buffer zone

C&P Collect&Place head

HF SIPLACE HF compo-

nent changeover table

MTC Matrix Tray Changer

NCH1 Nozzle changer, row 1

NCH2 Nozzle changer, row 2

OP Operator panel

PA1 Placement area 1

PA2 Placement area 2

TH TwinHead

X SIPLACE X component

changeover table

Machine Performance

Types of placement

head

20-nozzle Collect&Place head (C&P20)

12-nozzle Collect&Place head (C&P12)

6-nozzle Collect&Place head (C&P6)

SIPLACE TwinHead (TH)

PLEASE NOTE IPC value [comp./h]

According to the vendor-neutral conditions of the IPC 9850 standard pub-

lished by the Association of Connecting Electronics Industries.

SIPLACE Benchmark value [comp./h]

The SIPLACE benchmark value is measured during the machine accep-

tance tests. It corresponds to the conditions set out in the SIPLACE scope of

service and supply.

Theoretical maximum output value [comp./h]

The theoretical maximum output value is calculated from the most favorable

conditions for each machine type and setting, and corresponds to the theo-

retical conditions normally used in the industry.

SIPLACE X4 placement system

Number of gantries 4

Placement area 1 Placement area 2 IPC value Benchmark value Theoretical value

C&P20 / C&P20 C&P20 / C&P20 81,000 90,000 124,000

C&P20 / C&P20 C&P12 / C&P12 65,000 71,400 102,500

C&P20 / C&P20 C&P12 / C&P6 60,300 65,300 94,000

C&P20 / C&P20 C&P12 / TH 57,500 63,800 89,000

C&P20 / C&P20 C&P6 / C&P6 56,900 63,300 85,000

C&P20 / C&P20 C&P6 / TH 53,100 59,400 80,000

C&P20 / C&P20 TH / TH 47,800 52,500 75,000

C&P12 / C&P12 C&P12 / C&P12 49,000 52,800 81,500

C&P12 / C&P12 C&P12 / C&P6 44,300 46,700 72,500

C&P12 / C&P12 C&P12 / TH 41,500 45,200 67,500

C&P12 / C&P12 C&P6 / C&P6 40,900 44,700 64,000

C&P12 / C&P12 C&P6 / TH 37,100 40,800 59,000

C&P12 / C&P12 TH / TH 31,800 33,900 53,500

C&P12 / C&P6 C&P12 / C&P6 39,600 40,600 64,000

C&P12 / C&P6 C&P12 / TH 36,800 39,100 59,000

C&P12 / C&P6 C&P6 / C&P6 36,200 38,600 55,000

C&P12 / C&P6 C&P6 / TH 32,400 34,700 50,000

C&P12 / C&P6 TH / TH 27,100 27,800 45,000

C&P12 / TH C&P12 / TH 34,000 37,600 53,500

C&P12 / TH C&P6 / TH 29,600 33,200 45,000

C&P12 / TH TH / TH 24,300 26,300 40,000

C&P6 / C&P6 C&P6 / C&P6 32,800 36,600 46,000

C&P6 / C&P6 C&P6 / TH 29,000 32,700 41,000

C&P6 / C&P6 TH / TH 23,700 25,800 36,000

C&P6 / TH C&P6 / TH 25,200 28,800 36,000

C&P6 / TH TH / TH 19,900 21,900 31,000

TH / TH TH / TH 14,600 15,000 26,000
