28 Component Feeding S Tape Feeder Modules Packaging Model Width [mm] Loca- tions Transpor t increment [mm] Max. tape height [mm] Paper and blister tape s 2 x 8 mm S a 3 x 8 mm S a 3 x 8 mm S 0201 b 3 x 8 mm SL c 1 x 12/…
27
Component Feeding

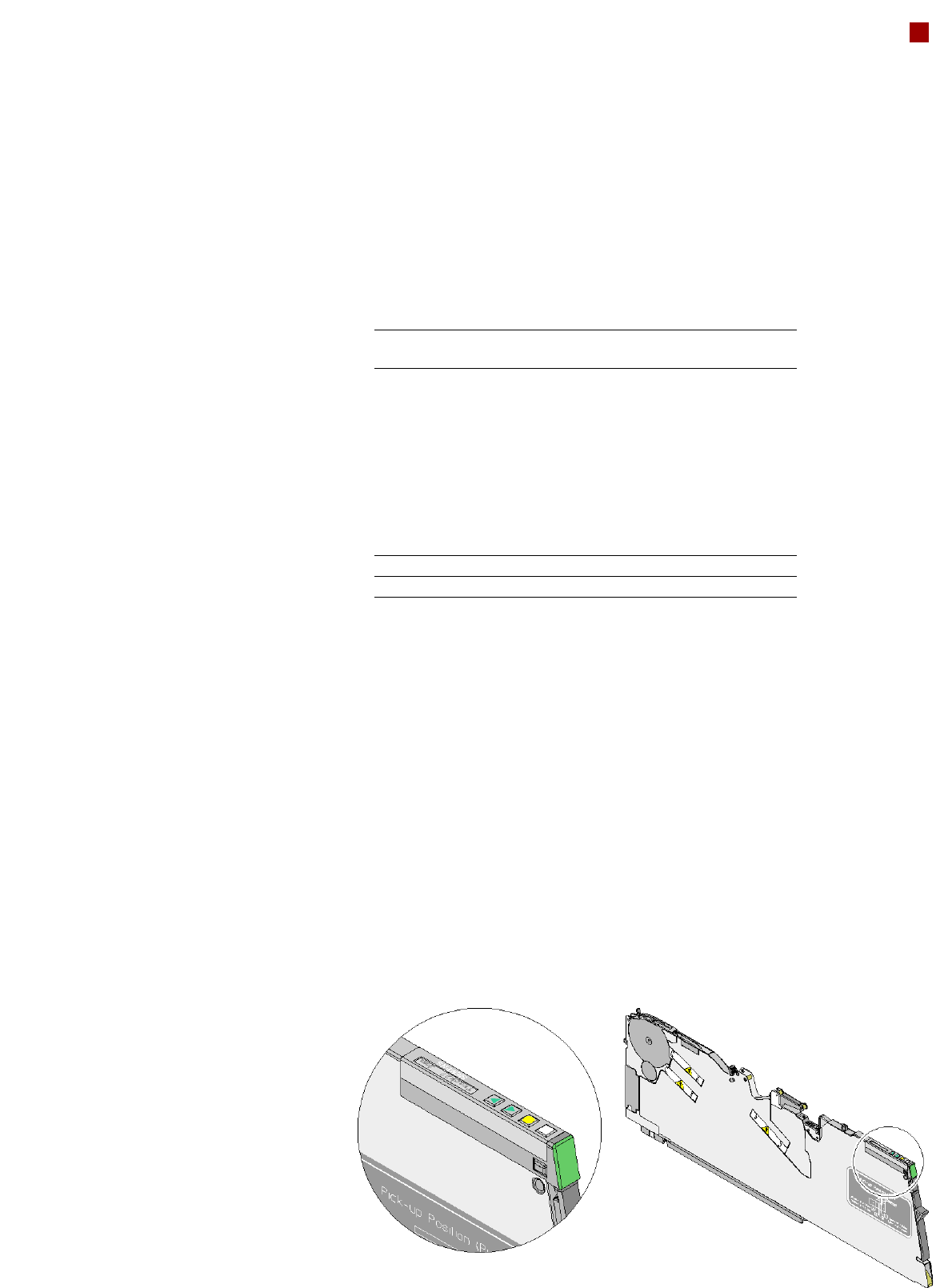

X Tape Feeder Modules
SIPLACE X tape feeder
modules are intelligent tape
feeder modules for flexible
production environments.
They greatly simplify set-up
and conversion tasks. All
SIPLACE X feeder modules
support tape splicing as stan-
dard, which prevents
machine stoppages when
refilling.
The benefits at a glance:
Conversion-friendly
• All SIPLACE X tape feeder
modules are designed as
single-track feeder mod-
ules. This minimizes any
restrictions during conver-
sion.
• Conversion is fast and
straightforward, and can
even be done during a
production run.
• Omega profiles on both
the tape feeder module
and the table allow the
tape feeder modules to be
attached and removed
while production is run-
ning.
Operator-friendly
• Contactless data and
power transmission make
it easier to attach/remove
the tape feeder modules
• Menu-driven LCD display
with full graphics capabil-
ity supports the operator
with the latest information
• A multicolor status dis-
play signals the operating
statuses of the X tape
feeder module:
- Green: “Standby/Set-up
in progress”
- Orange: “Component
running out”
- Red: “Fault”
- LED off: “Tape feeder
module is not in current
set-up and may be
removed”
Robust
• Brushless motors extend
the service life of the X
tape feeder modules.
Intelligent
• A unique tape feeder mod-
ule ID ensures that the
component is assigned
exactly to the tape feeder
module. This makes reli-
able set-up verification
very simple.
• Component pitch, feeding
speed and other functions
are set automatically
when you download the
set-up program.
High feeding accuracy
• Closed-loop control dis-
tance measurement guar-
antees highly accurate
component feeding, even
with 01005 components.
a) PSA Kit available as an option.
b) 01005-compliant.
c) In 4mm increments.
d) PSA Kit, standard.
Technical data
Tape feeder
module
Width
[mm]
Loca-
tion
Transport incre-
ment [mm]
Max. tape
height [mm]
8 mm X
a,b
10.8 1 1/2/4/8 3.5
12 mm X
a
22.6 2 4 - 16
c
6.5
16 mm X
d
34.4 3 4 - 20
c
25
24 mm X
d
34.4 3 4 - 32
c
25
32 mm X
d
46.2 4 4 - 40
c
25
44 mm X
d
58.0 5 4 - 52
c
25
56 mm X
d
69.8 6 4 - 64
c
25
72 mm X
d
81.6 7 4 - 80
c
25
88 mm X
d
105.2 9 4 - 96
c
25
Tape reels 178 to 483 mm in diameter (7" - 19")
Changeover time 8 s
28
Component Feeding
S Tape Feeder Modules
Packaging Model Width
[mm]
Loca-
tions
Transport
increment [mm]
Max. tape
height [mm]
Paper and
blister tapes
2 x 8 mm S
a
3 x 8 mm S
a
3 x 8 mm S 0201
b
3 x 8 mm SL
c
1 x 12/16 mm S
30.6
30.6
30.6
30.6
30.3
1
1
1
1
1
2/4
2/4/8
2/4
2/4/8
4/24
d
3.5
e
3.5
1.5
3.5
15
e
Blister tapes 1 x 24/32 mm S
1 x 24/32 mm SDP
f
1 x 44 mm S
1 x 44 mm SDP
f
1 x 56 mm S
1 x 56 mm SDP
f
1 x 72 mm S
1 x 88 mm S
42.4
42.4
54.6
54.6
66.6
66.6
82.6
98.6
1.5
1.5
2
2
2.5
2.5
3
3.5
4/40
d
4/40
d
4/52
d
4/52
d
4/68
d
4/68
d
4/80
d
4/96
d
15
25
15
25
15
25
15
15
Tape reels 178 - 483 mm diameter (7" - 19")
Cycle S feeder modules up to 20 mm transport distance < 150 ms
Changeover
time
15 s
a) Extra fiducials provided for feeder position detection.
b) For 0201 and 0402 in paper tapes.
c) SL = Shutterless, for all components in the 8mm component tape 0201 (paper, blister)
d) Variable in 4 mm increments.
e) PSA Kit available as an option.
f) DP = Deep Pocket.
29
Component Feeding
Alternative SIPLACE Feeder Modules
Technical data
Linear vibratory feeder, type 3
Packaging form
Number of tracks and width
Location
Stick magazines
SIPLACE X component
changeover table
a
3 x 9.5 mm
2 x 15 mm
1 x 30 mm
Takes up 3 locations of a
3 x 8 mm X feeder module
SIPLACE HF component
changeover table
3 x 9.5 mm
2 x 15 mm
1 x 30 mm
Takes up 1 location of a
3 x 8 mm S feeder module
Dip module
for SIPLACE HF component
changeover table
Takes up 3 locations of a 3 x 8 mm S feeder module
Linear dip module (LDU X)
for SIPLACE X component
changeover table
Takes up 9 locations of an 8 mm X feeder module,
no more than 1 per head
a) with X adapter.
Linear vibratory feeder, type 3
Linear dip module
Description
Linear vibratory feeders
are used to process compo-
nents in stick magazines.
They are easy to set up on
the SIPLACE HF or
SIPLACE X component
changeover table using the X
adapter. They can be refilled
without stopping the
machine.
The DIP module is suitable
for dip-fluxing flip-chips,
CSPs (chip-scale/size pack-
ages) and for wetting flip-chip
bumps with isotropic, con-
ductive adhesive.
Other alternative feeder
modules for the SIPLACE HF
component changeover table
are the label presenter, the
surftape feeder module and
the reject conveyor. The
adapter X allows both the
label presenter module and
the reject conveyor to be set
up on the SIPLACE X com-
ponent changeover table.
