5 − 36

2) Edit a ball pattern.

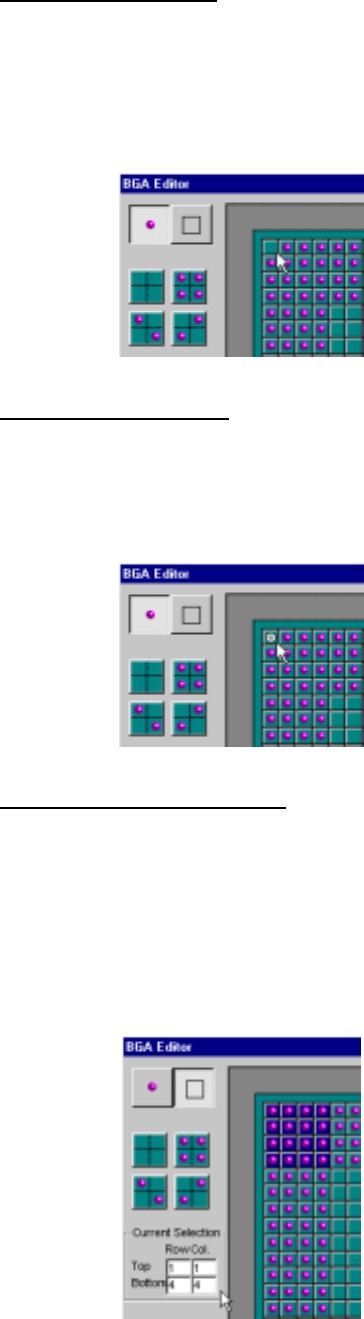

2-1 Creating a ball pattern

Select the “Ball/Index” push button provided in the Tool box. Move the

cursor over the displayed ball pattern, then click the left button of the

trackball. It allows you to create a ball pattern.

- When you click the left button again, the displayed ball pattern is

cleared.

2-2 Creating an index mark

When you click the right button of the trackball, it allows you to create

an index mark.

- When you click the right button again, the displayed index mark is

cleared.

2-3 Arranging balls in a rectangle

Select the “rectangle” push button provided in the Tool box. Move the

cursor over the area you want to edit of the displayed ball pattern.

Move the trackball while holding down the left button of the trackball.

You can arrange balls in a rectangle.

- The color of the area of balls you set changes, and the coordinates

of the start and end points of the area being selected appear in the

“Current Position” fields.

5 − 37

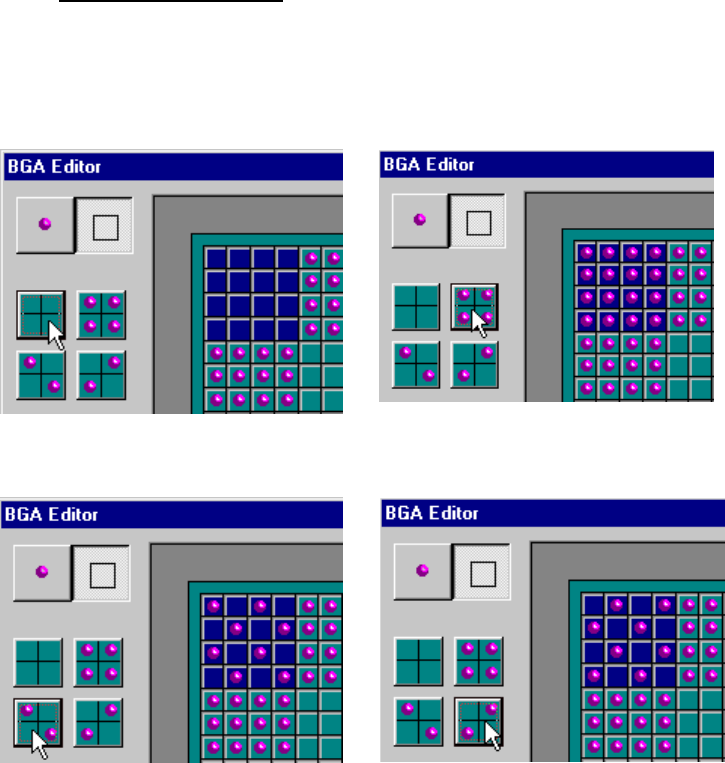

2-4 Selecting a ball pattern

When you select one of four filling patterns, the ball pattern of the

selected area is changed to the selected pattern.

* Four types of ball pattern selecting screens are shown below.

Pattern 1 Pattern 2

Pattern 3 Pattern 4

5 − 38

3) Saving

3-1 Quitting the ball pattern editing operation

After editing a ball pattern, click the <OK> button.

- The following screen appears.

When you click the <Cancel> button, it cancels your ball pattern

editing.

When you click the <Yes> button, the “Add a new ball pattern” dialog

box appears on the screen.

When you click the <No> button, the edited ball pattern is saved.

♦ - Enter a ball pattern name, then click the <OK> button. The

edited ball pattern is saved.

- When you click the <Save> button, the “Add a new ball pattern”

dialog box appears on the screen. Enter a ball pattern name,

then click the <OK> button. The edited ball pattern is saved.

- When you click the <Cancel> button, the machine cancels your

ball pattern editing.
