5 − 44 2) Number of leads to be r ecognized Enter t he number of leads at each cor ner to be recog nized. See t he conditions for entering the number of leads shown in T able 5.2.3.16 below . T able 5.2.3.16.1 Range of t…
5 − 43
Recognized
Recognized
Recognized
Recognized
Recognized
Recognized
The leads located at the inside are not recognized.
Recognized
Recognized
The leads located on the outside are not recognized.
⑰ View Field, L Top, R Top, L Bot., and R Bot.
Set the range of leads to be recognized and that not recognized of a
connector.
When you click this setting item with the right button, the selection pop-up
menu appears on the screen.
All Recognizes all leads.
Only the both ends lead Specify the range of leads to be recognized with being viewed from the leads
on both ends.
Both ends lead exclusion Specify the range of leads not recognized with being viewed from the leads
on both ends.
- When you select “Only the both ends lead” or “Both ends lead exclusion”,
enter the number of leads on each side to the “L Top”, “R Top”, “L Bot.”, and
“R Bot.” fields to specify the range of leads recognized or not recognized.
- When you select “All”, you cannot specify the range of the number of leads.

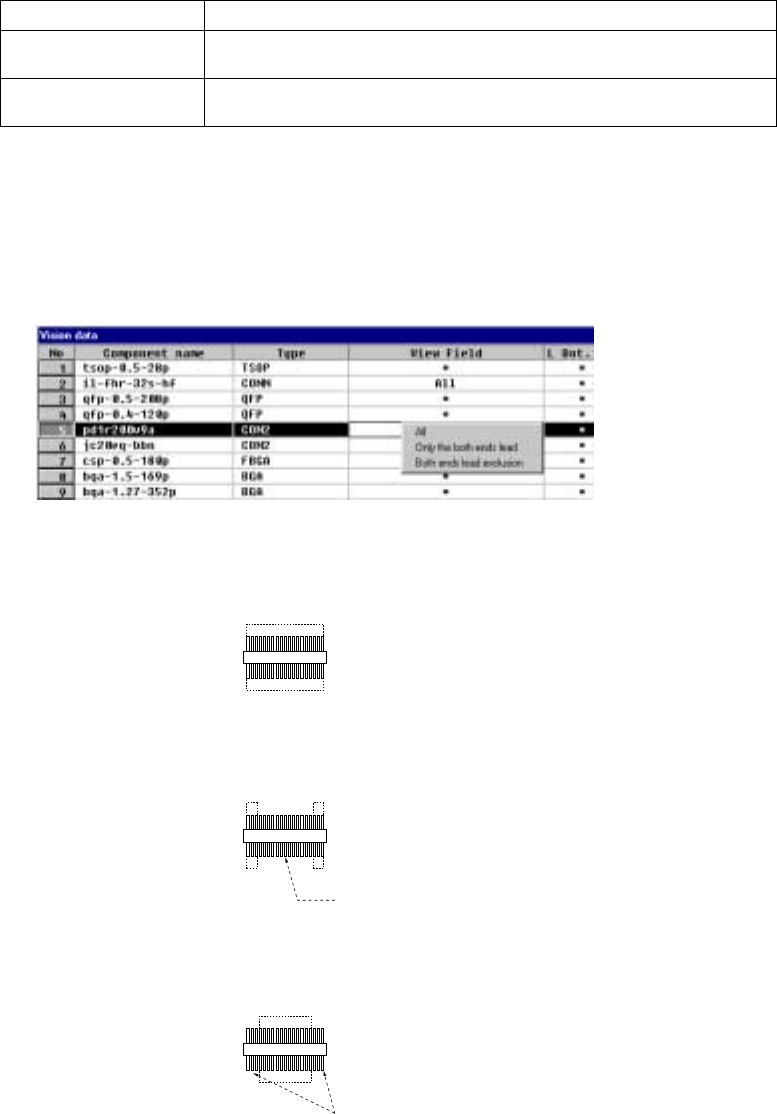

1) Meaning and image of each lead recognition pattern
･ All leads: All leads are to be recognized.
･ Only the both ends lead:
Only leads located on both sides are to be recognized.
･ Both ends lead exclusion:
Leads except the specified leads located on both sides are to be
recognized.
5 − 44
2) Number of leads to be recognized
Enter the number of leads at each corner to be recognized. See the
conditions for entering the number of leads shown in Table 5.2.3.16 below.
Table 5.2.3.16.1 Range of the number of leads
Range of the number of leads
Component type Recognition pattern
Upper
left
corner
Upper
right
corner
Lower
left
corner
Lower
right
corner
Unidirectional
connector
All
Only the both ends lead
Both ends lead exclusion
****
1-3
0-3
****
1-3
0-3
****
****
****
****
****
****
Bidirectional
connector
Z-shaped lead
connector
All
Only the both ends lead
Both ends lead exclusion
****
1-3
0-3
****
1-3
0-3
****
1-3
0-3
****
1-3
0-3
⑱ Corr.(Brightness correction)
Set the threshold to be applied when the machine recognizes an
outline-recognized component.
- “0” is set as the initial value. If the machine cannot recognize such a
component, adjust the initial value between – 127 and + 127. When a
component looks darker, set the smaller number. When you can see even
the background of a component, increase the value.
5 − 45
⑲ Exp (Expansion)
Set this item for an extended-lead connector, or unidirectional connector.
- When you click this item with the right button, the selection pop-up menu
appears on the screen.
▼ When you click the [Edit] command, the following screen appears.
Profile Set the shape of a lead.
- Flat lead
- Gullwing lead
By default, “Gullwing lead” is selected.
Recog offset
(Recognition
offset)
Displays the recognition center offset which was set on
the “Expansion” window invoked from the Component
data screen. You cannot edit any of these values on
this screen. This item shows the coordinates of the
lead center A with being viewed from the component
pick-up position C.
LREP.
(Rightmost
lead position)
Enter the coordinates of the rightmost lead position:
coordinates of the rightmost lead center B with being
viewed from the lead center A. The default value is
determined based on the lead pitch and number of
leads.
♦ When you finish entering all of data, click the <OK> button. The “Vision
data” screen reappears.
Notes:
①
The machine cannot recognize images of an extended-lead connector with
dividing it.
②
Note that only one point, the rightmost lead position is set on this screen, so
the recognition precision is insufficient.
Ｃ
ＣＣ
Ｃ
Ａ
ＡＡ
Ａ
Ｂ
ＢＢ
Ｂ
