Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
41
2.3 Preparatory work
: Move the tray supply of the MTC2 into the lowest position.
2
This is not absolutely essential - replacement is still possible if it is not done. 2
2
: Switch the placement machine and MTC2 off at the main switch.
: Dock the MTC2 out of the placement machine.
: Disconnect the MTC2 from the power supply.
2
The MTC2 MUST be disconnected from the main power supply since the front protective cover
will be unscrewed, thus exposing live parts. 2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
42
2.4 Removing the protective covers

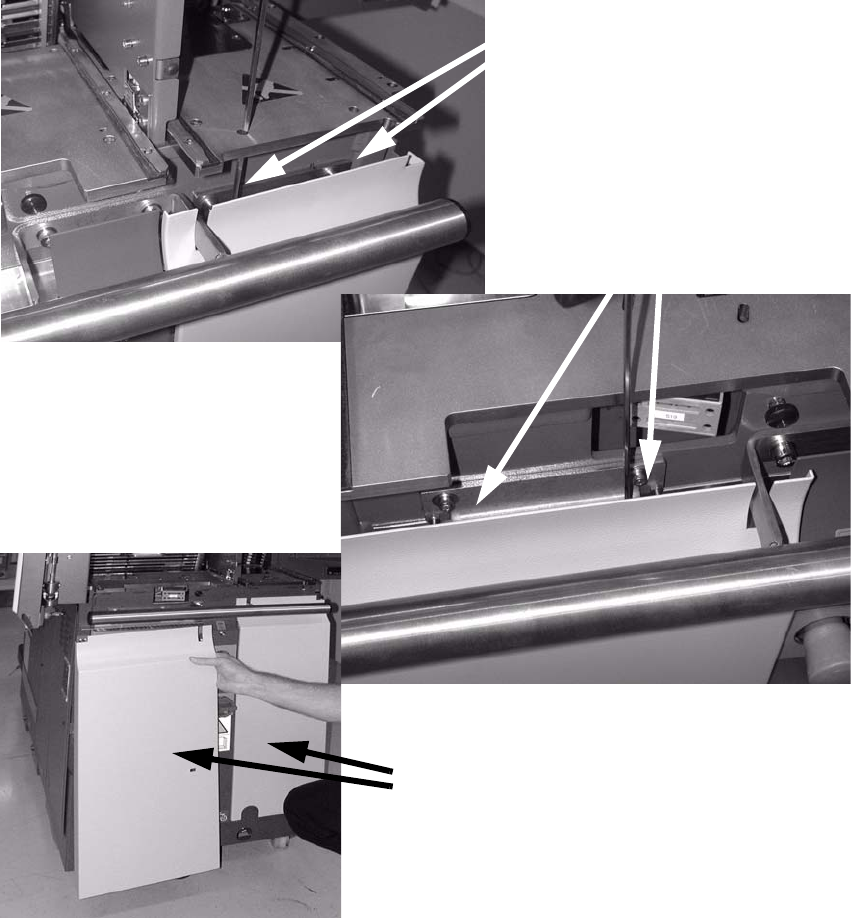

: Loosen the screws and remove the panels on the front of the MTC2.
2
2
2
2
2
2 screws on the right-hand side
2 screws on the left-hand side
Remove the panel on both sides
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
43

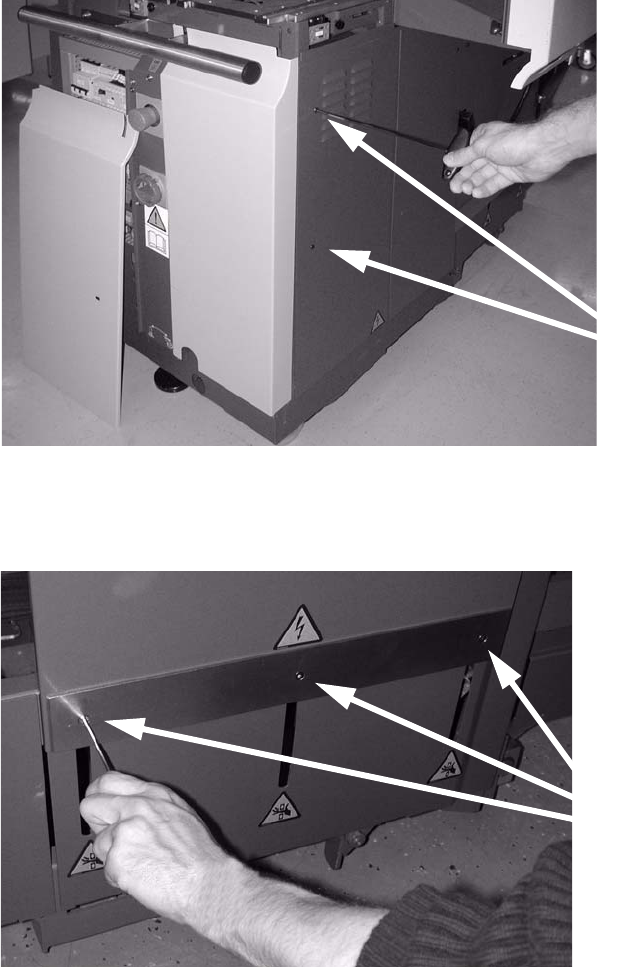

: Remove the side panel.
2
2
: Loosen the screws on the approach guard and remove the guard.
2
2
2
2
2
2
Screws
Screws
