Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
65

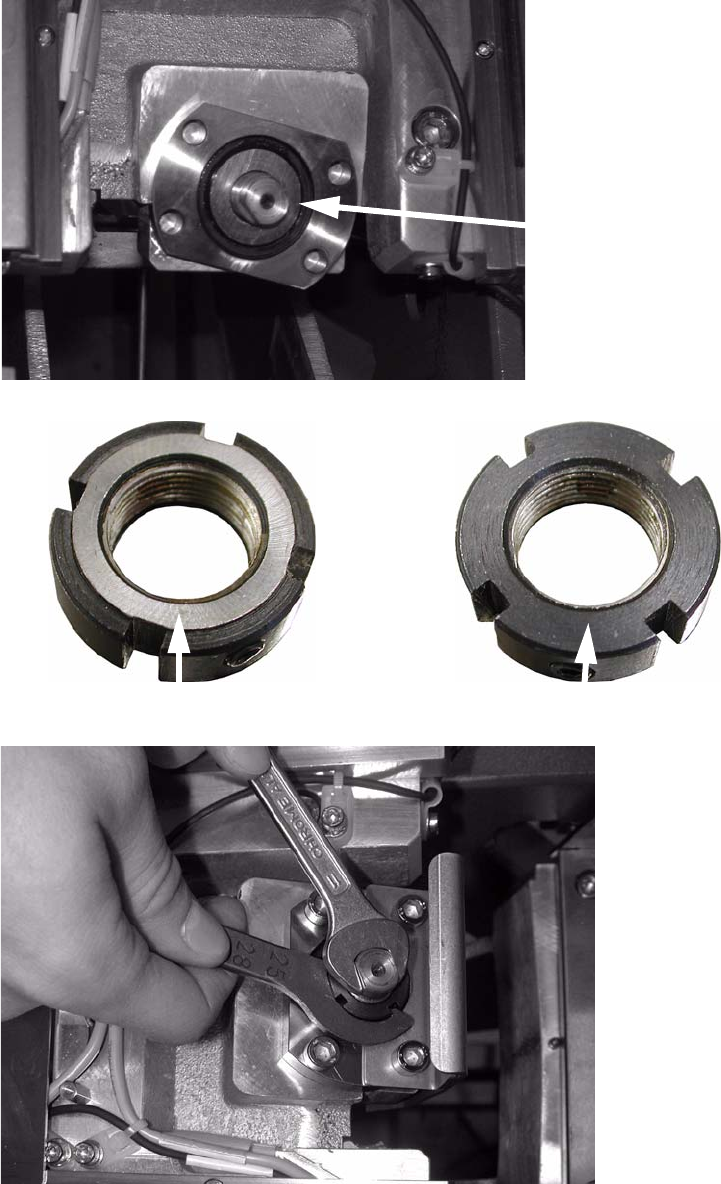

: Insert the top locating bearing so that the spindle (after being inserted) does not have too much
clearance.
2
2
Insert the locating bearing
Polished side down
Unpolished side up
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
66

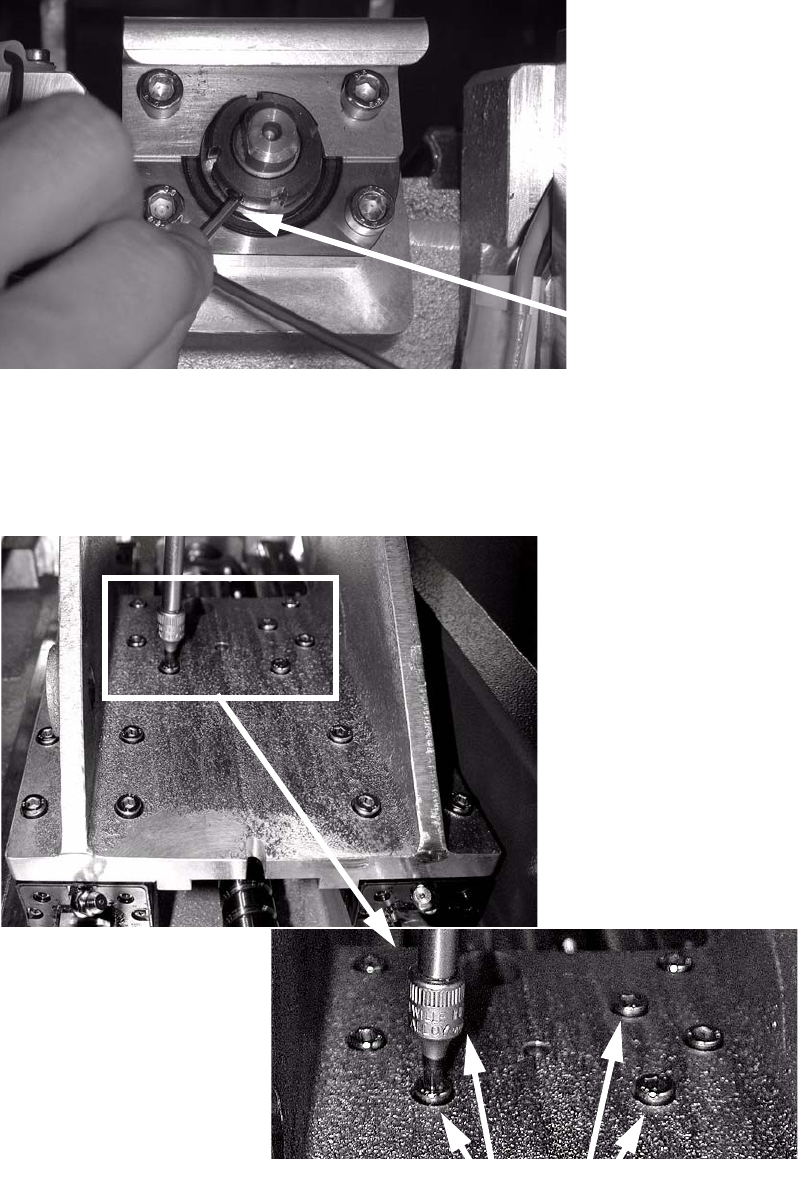

: Insert the locking screw and tighten it.
2
2
: Turn the tray supply upwards into its end position using the cordless screwdriver.
: Tighten the screws of the spindle nut block using a diagonal sequence.
2
Locking screw
4 screws
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
67

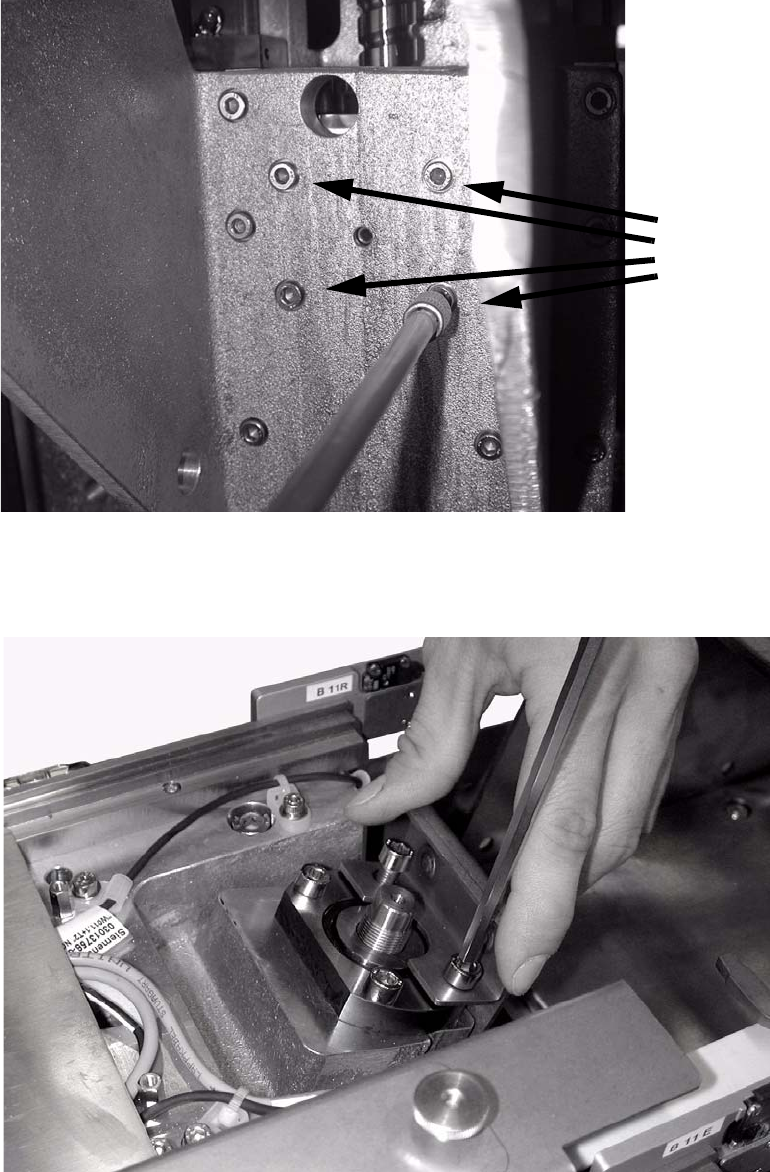

: Loosely tighten the four screws on the spindle nut block using a diagonal sequence.
2
2
: Attached the angled plate and loosely tighten the four screws.
2
2
Tighten 4 screws
using diagonal
sequence
