Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
56
: Push the motor inwards on both sides in order to slacken the belts.
: Remove the toothed belts on both sides.
: Remove the motor.
: Loosen the screws on the cover of the feed axis and remove the cover.
2

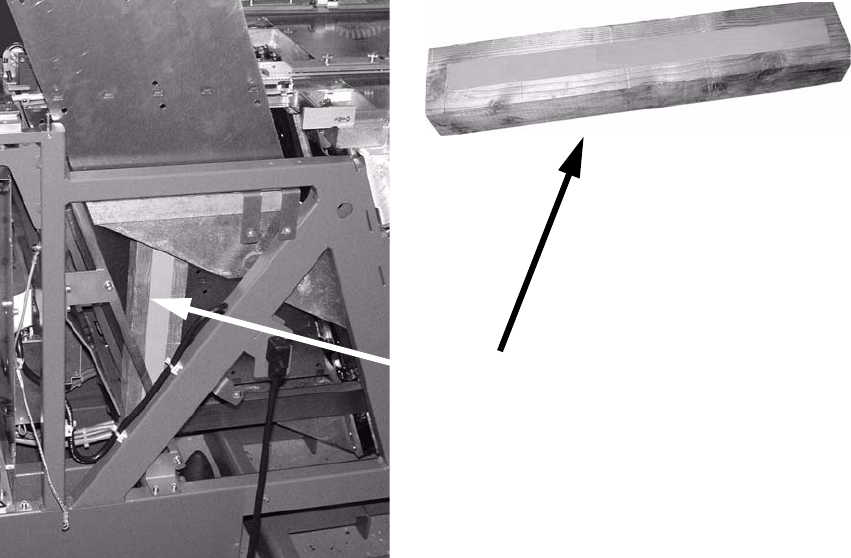

: Raise the tray supply manually and place a suitable lifting device (such as the wooden block
in the photograph) beneath it so it cannot slip down.
2
2
2
2
2
2
2
2
2
2
Lifting device
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
57

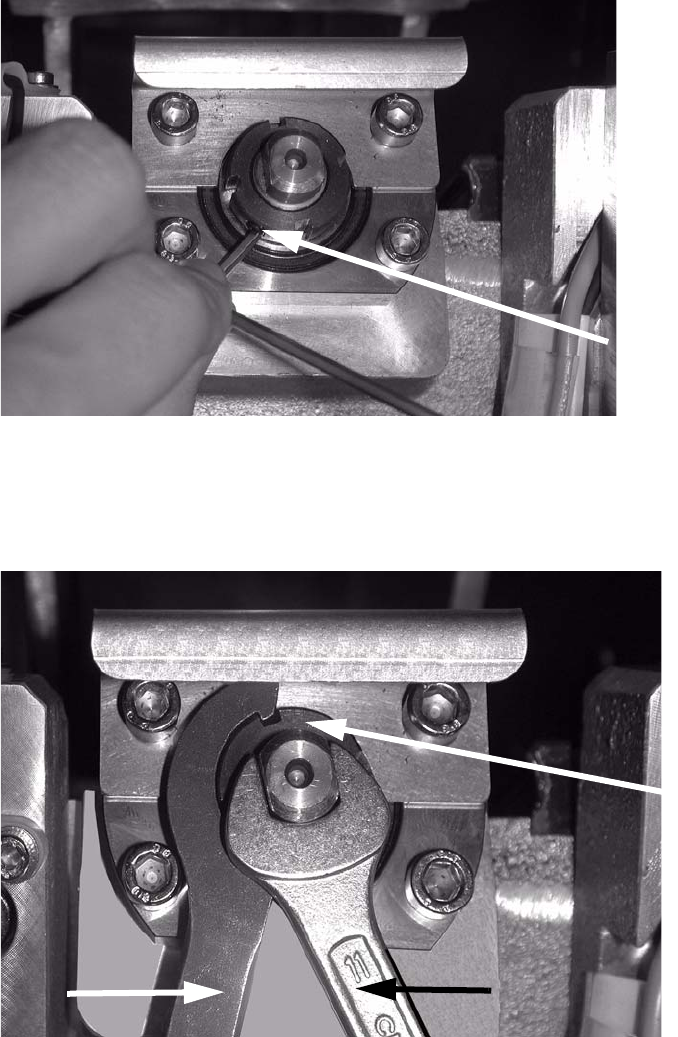

: Unscrew the locking screw on both sides.
2
2
: On both sides, remove the groove nut using a groove nut spanner and a fork wrench.
The photograph below shows which way to turn the spanners.
2
2
2
2
2
Locking screw
Groove nut
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
58
: Remove the top locating bearing.
2
Pull the top locating bearing off carefully using a stripping tool. Make sure that you do not
lose the balls. 2
2

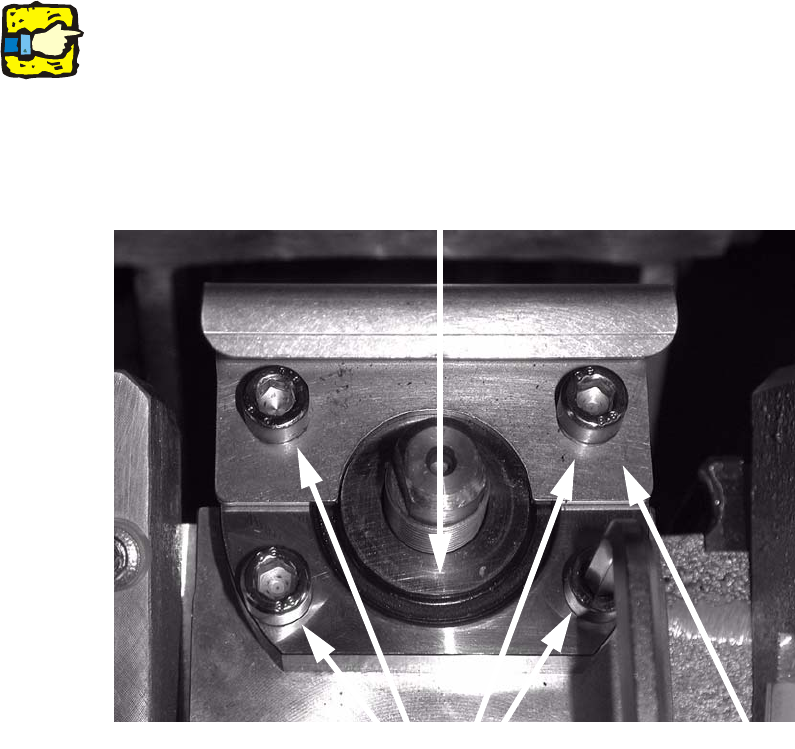

: Remove the 4 screws and remove the angled plate.
2
2
2
2
2
2
2
2
2
2
2
4 screws
Angled plate
Locating bearing
