Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
53
: Remove the bottom left side plate on both sides of the MTC2, including the earth bonding
(hexagon socket + hexagon)
2
: Disconnect the sensors from both motors.
2
Mark the sensors to indicate whether they were plugged in at the top or bottom. 2
2
2
Side plate
Remove the sensors
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
54

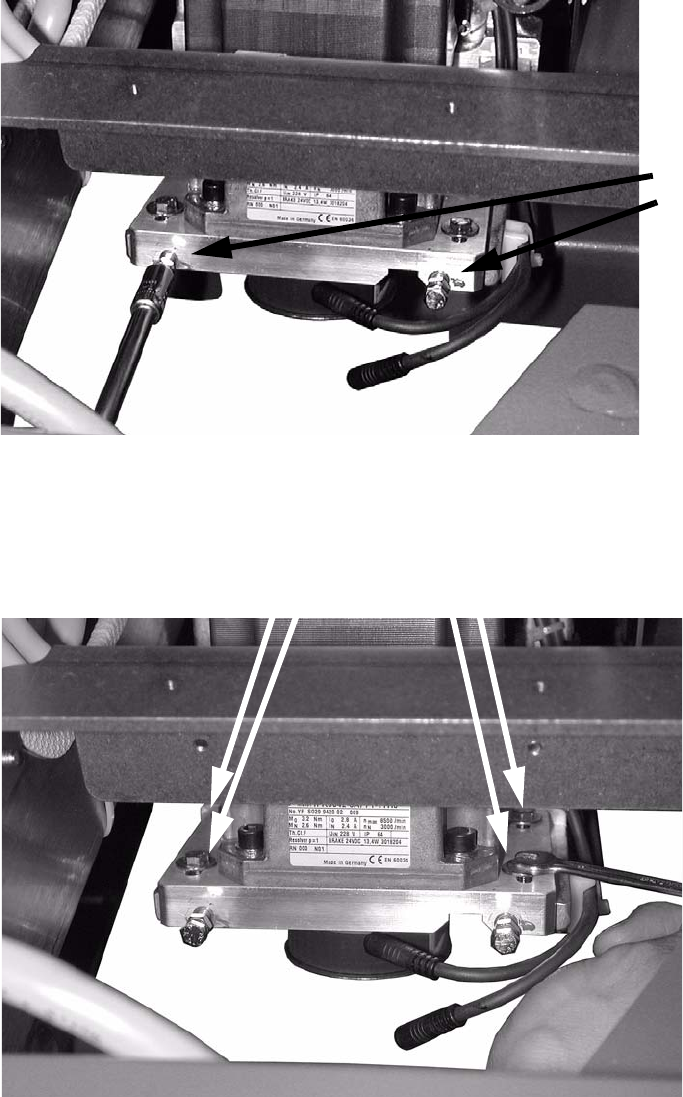

: Remove the sensor mounts (2 screws).
2
2

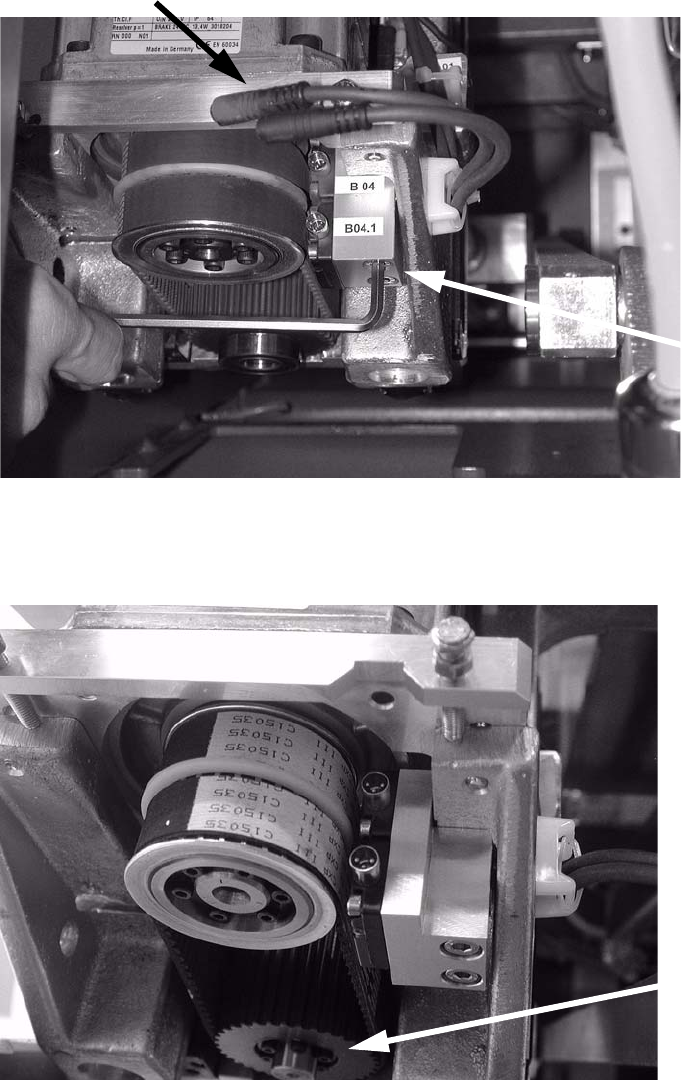

: Dismantle the synchronizing disk / thrust sleeve from the spindle.
2
2
2
Sensors
Sensor
mounts
Spindle synchro-
nizing disk
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
55
: Remove the two setscrews for setting the belt tension for the motor supports on both sides of
the MTC2.
2
2
: Loosen 4 clamping screws on each side.
2
2
2
Remove the
setscrews
4 clamping screws
