Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis 05/2005 Edition 61 : Place the tray supply on the device and r emove the spindle nut block. : If the pin of the spindle nut block cannot be detached…
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
60

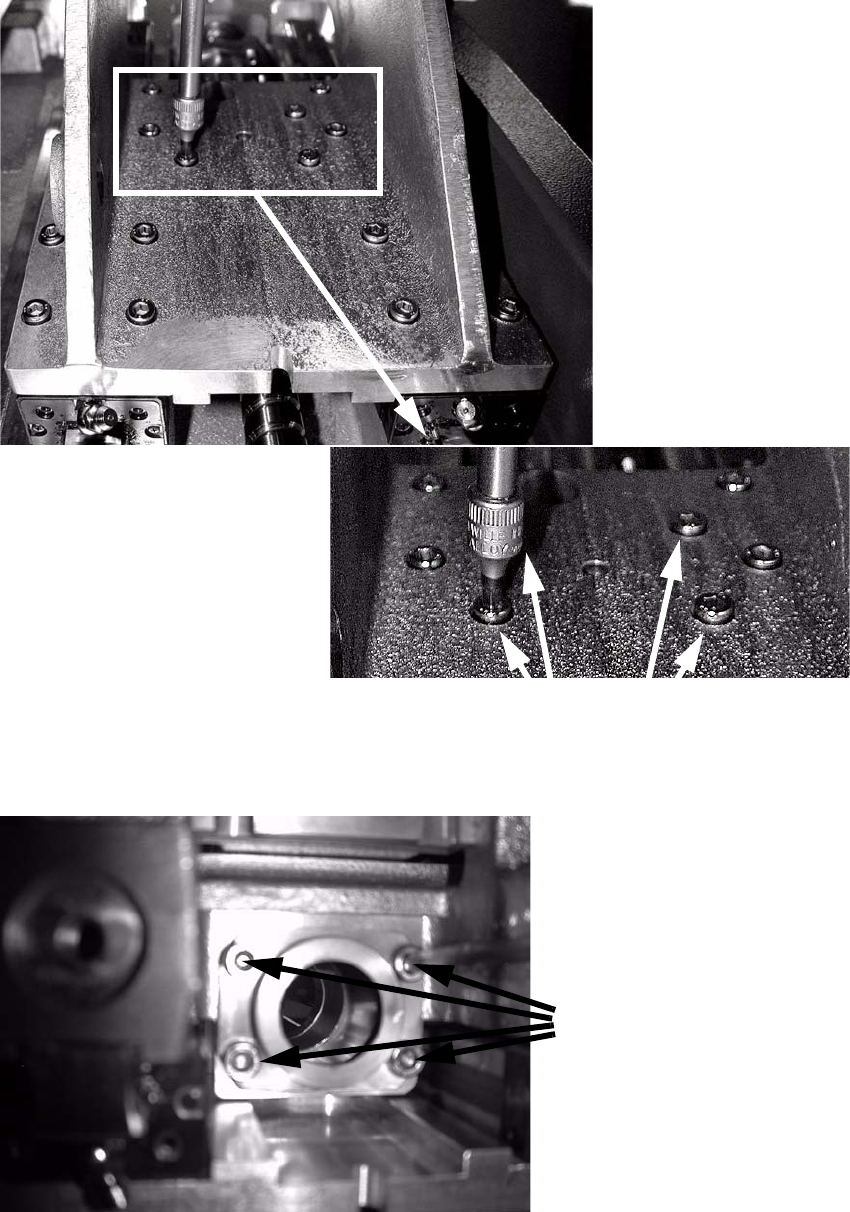

: Remove the four screws from the spindle nut block (see photograph).
2
: Loosen the bottom four screws on the bearing flange.
2
4 screws
Turn the tray supply down and
remove the spindle.
4 screws
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
61
: Place the tray supply on the device and remove the spindle nut block.
: If the pin of the spindle nut block cannot be detached, use a punch to remove it.
2
2
2
2
2
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
62
2.6 Fitting the new spindle
: Squeeze one drop of Loctite 241 thread locker into the hole so that the pin is seated firmly.
2
2
: Loosen the screws on the bottom thrust bearing.
: Lift up the tray supply.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Secure hole with
Loctite 241
