Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
50
If you did not move the tray supplies into the lowest position before the conversion: 2

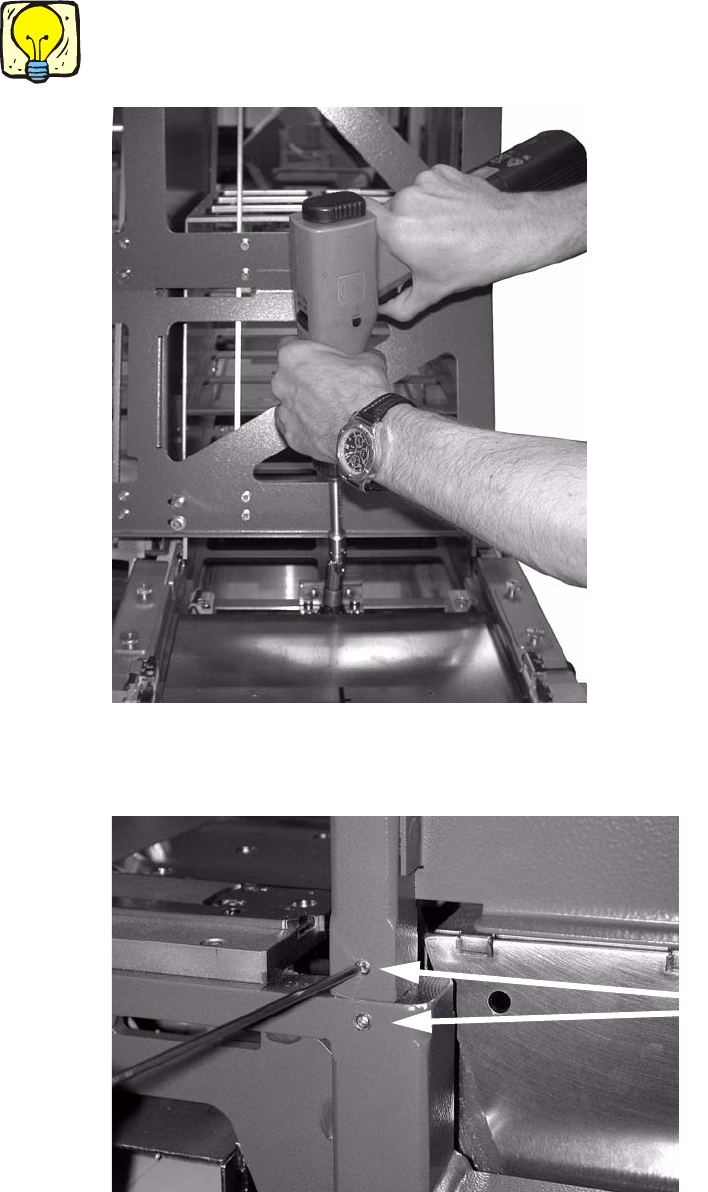

: Move the two tray supplies into the bottom position by turning the top spindle.
2
The tray supplies can be moved quickly using a cordless screwdriver. 2
2
2
: Loosen the two screws on both sides of the MTC2.
The screws must only be loosened. Do not remove them.
2
2 screws
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
51

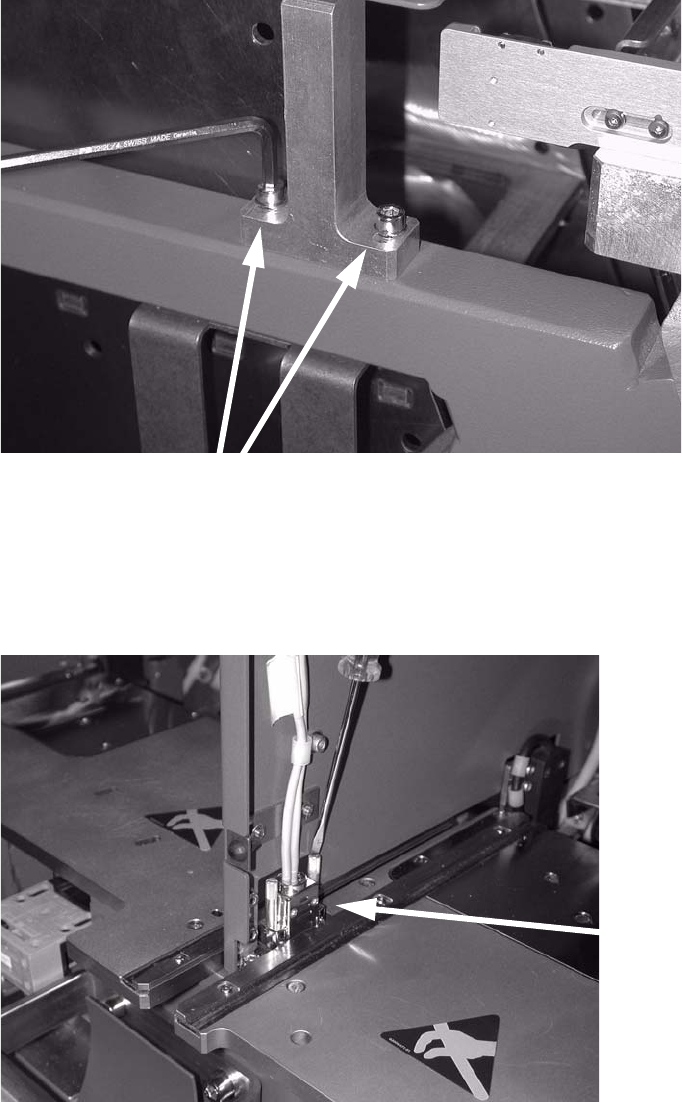

: Loosen the two screws on both sides of the MTC2.
2
2
: Remove the plug on the front of the wall between the tray supplies (2 screws).
2
2
2
2 screws
Plug
Service Manual: Replacement of ball screw for SIPLACE MTC2 lifting axis
05/2005 Edition
52

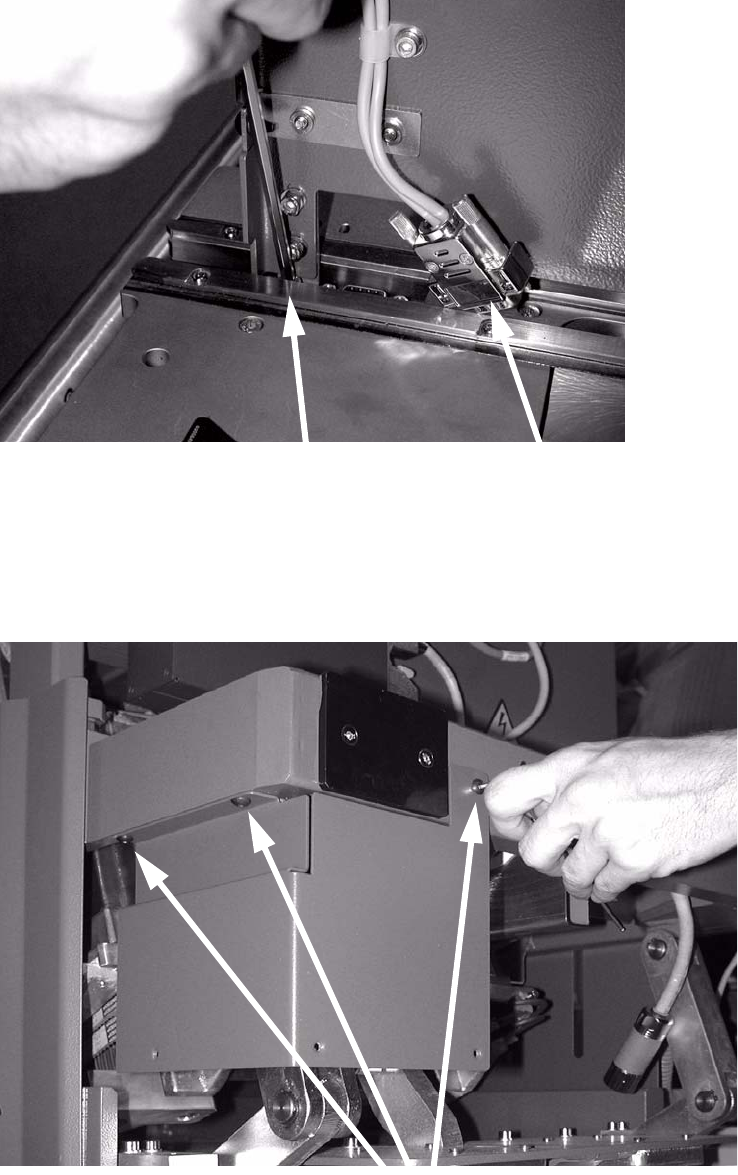

: Loosen the screw beside the plug you have just removed.
2
: Remove the top frame.
: Loosen the three screws on the bottom frame of the MTC2 and remove the plate.
2
Screw
Previously removed plug
Three screws
