Service Work
3.9.1 Replacing the Cutter Blades [03009259-xx] Cutter
Service Manual (internal version) SIPLACE HF and X Series 107
3.9
3.9 Cutter
Cutter
3.9.1
3.9.1 Replacing the Cutter Blades [03009259-xx]
Replacing the Cutter Blades [03009259-xx]
Parts
The item number of the cutter blades may vary according to the cutter version and function status.
Tools
▪ Thick protective gloves
▪ Mounting plate [00312731-xx]
Alternatively: 2 large parallel clamps and a sturdy table with even surface to clamp down the disman
-
tled cutter
Removal
Tape cutter, pneumatic Function status Cutter blades, attuned
03000487 -01 to -03 03000501-xx
03000487 -04 to -05 03009259-xx
03019941 -01 03009259-xx
03052900 -01 03009259-xx
WARNING
Risk of injury
There is a high risk of injury from the blades and the tape deflector..
► Wear appropriately thick protective gloves!
► Never reach into the cutter from below or into the empty-tape duct from above.
► Dismantle the COT insert and the cutter.
► Remove the protective plate (2) and the baffle plate
(3).
► Remove the cover plate (1).
► Remove the caps (4) on the fastening screws.
WARNING!
There is a risk of injuring yourself on the cutting edge of
the blades.
For all further work, either fix the cutter to the assembly
plate with 4 hexagon socket-head screws M6 or use
screw clamps to fasten the cutter to a sturdy table.
4
1
4
3
2
Service Work
Cutter 3.9.1 Replacing the Cutter Blades [03009259-xx]
108 Service Manual (internal version) SIPLACE HF and X Series
Installation – requirements
► Loosen and remove the two screws (1) fastening the
stationary blade (2).
► Loosen the screws fastening the left and right tape
deflectors (3) above the moveable blade.
CAUTION!
Do not loosen the two Phillips screws (4).
Remove the tape deflector holder with the tape deflector
(5) and carefully place the whole unit down (with the tape
deflector facing upwards).
► Remove the right-hand holding-down device (1) and
the left holding-down device (2), plus the spacers be
-
low.
► Use an SW 10 open-ended wrench to push against
the joint (3), while loosening the hexagon socket-
head screw of the joint (4) in the moveable blade.
This may require more strength than usual as the
screws have been secured with Loctite no. 243.
► Grasp both ends of the moveable blade (5) with the
protective gloves and pull it upwards and out.
4
3
5
1
4
3
2
3
4
1
5
4
3
2
WARNING
Risk of injury
There is a high risk of injury from the blades and the tape deflector.
► Wear appropriately thick protective gloves!
► Make sure all parts are clean before installing them.
Service Work
3.9.1 Replacing the Cutter Blades [03009259-xx] Cutter
Service Manual (internal version) SIPLACE HF and X Series 109
Preparation
Installation
► Use an SW 10 open-ended wrench to push against the relevant joint (3) and then tighten both screws
(2) to a torque of 2.7 – 3.0 N.
► Replace the two covers (caps).
► Place the 2 new spacers (4) to the left and right of the moveable blade. The spacer side marked with
a number must face away from the blade.

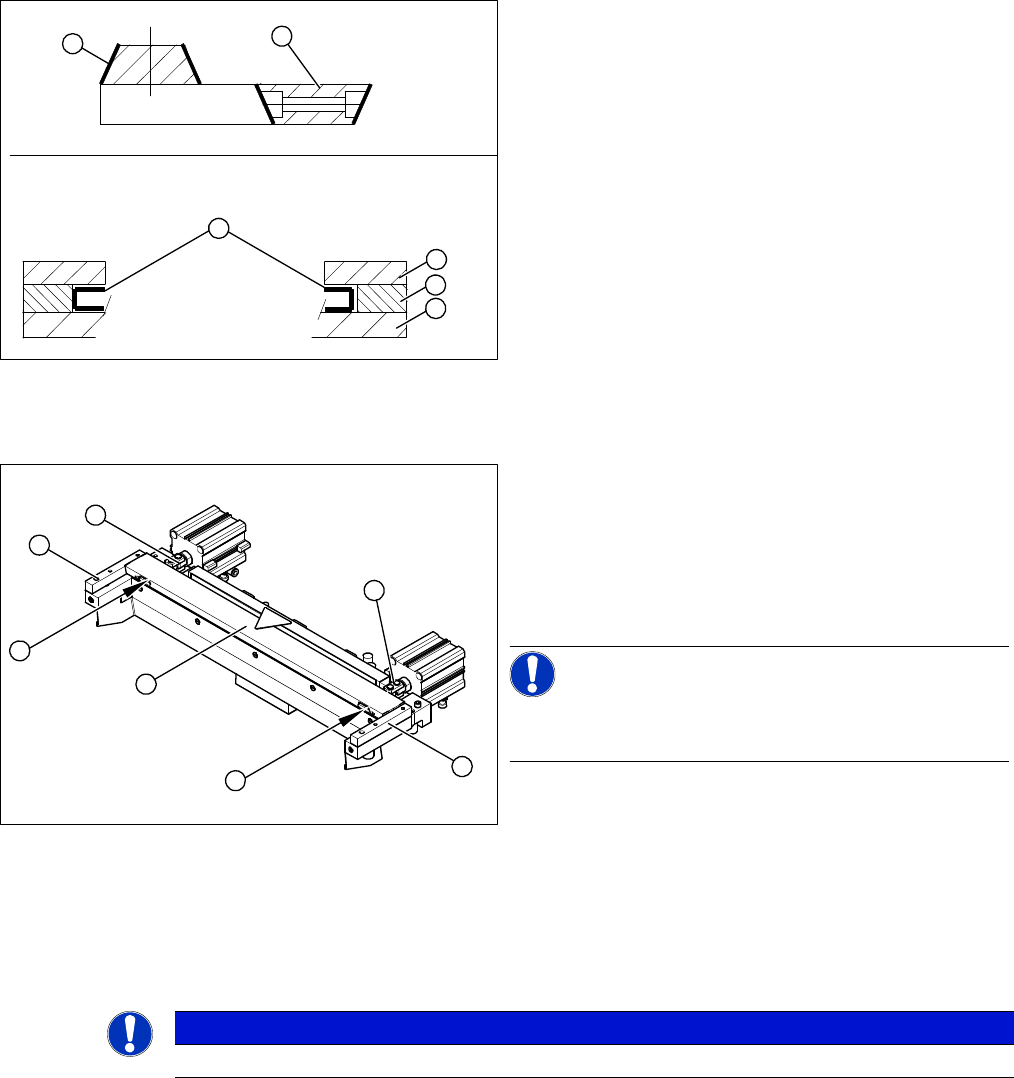

1. Stationary blade
2. Moveable blade
3. Sliding surfaces to be lubricated
4. Holding-down device
5. Spacer
6. Contact surface
► Make sure the cutter is in the correct rotary position
(see the slant of the blade).
► Check the positioning of the individual blades to one
another.
► Before installation, lubricate the sliding surface of the
moveable blade.
1
6
5
4
3
2
► Correctly insert the moveable blade (1) into the cutter
and shift it along to its original installation position.
► Apply Loctite no. 243 to the two M4 screws, to fasten
the joint in the moveable blade.
► Insert the screws (2) into the left and right holes, pro
-
vided in the moveable blade.
NOTICE!
Make sure that the joint (3) can slide into the slot (= anti-
twist function) in the moveable blade without obstruction.
2
3
4
1
4
3
2
NOTICE
The spacers and blades are matched!
