Service Work

Cutter 3.9.1 Replacing the Cutter Blades [03009259-xx]

110 Service Manual (internal version) SIPLACE HF and X Series

► Reinsert the tape deflector unit (3) and screw in the 4 hexagon socket-head screws (4) by hand.

► Push the spacers (with inserted shim) as far as possible in the direction of the moveable blade. The

maximum permissible gap is 1.0 mm.

► In this position, tighten the 4 screws (4) on the tape deflector holder crosswise (tightening torque).

► Remove the two feeler gauges.

► Insert the new stationary blade (5) in the correct position and screw tight.

Final work

If the gap is correct:

► Replace the protective plate, baffle plate and cover plate. Make sure that the edges are parallel.

► Remove the clamps form the cutter/ remove the cutter from the assembly plate.

► Fit the cutter.

► Lubricate the contact/slide surfaces for the moveable

blade, as described in the section "Preparation".

CAUTION!

Do not lubricate the blades themselves.

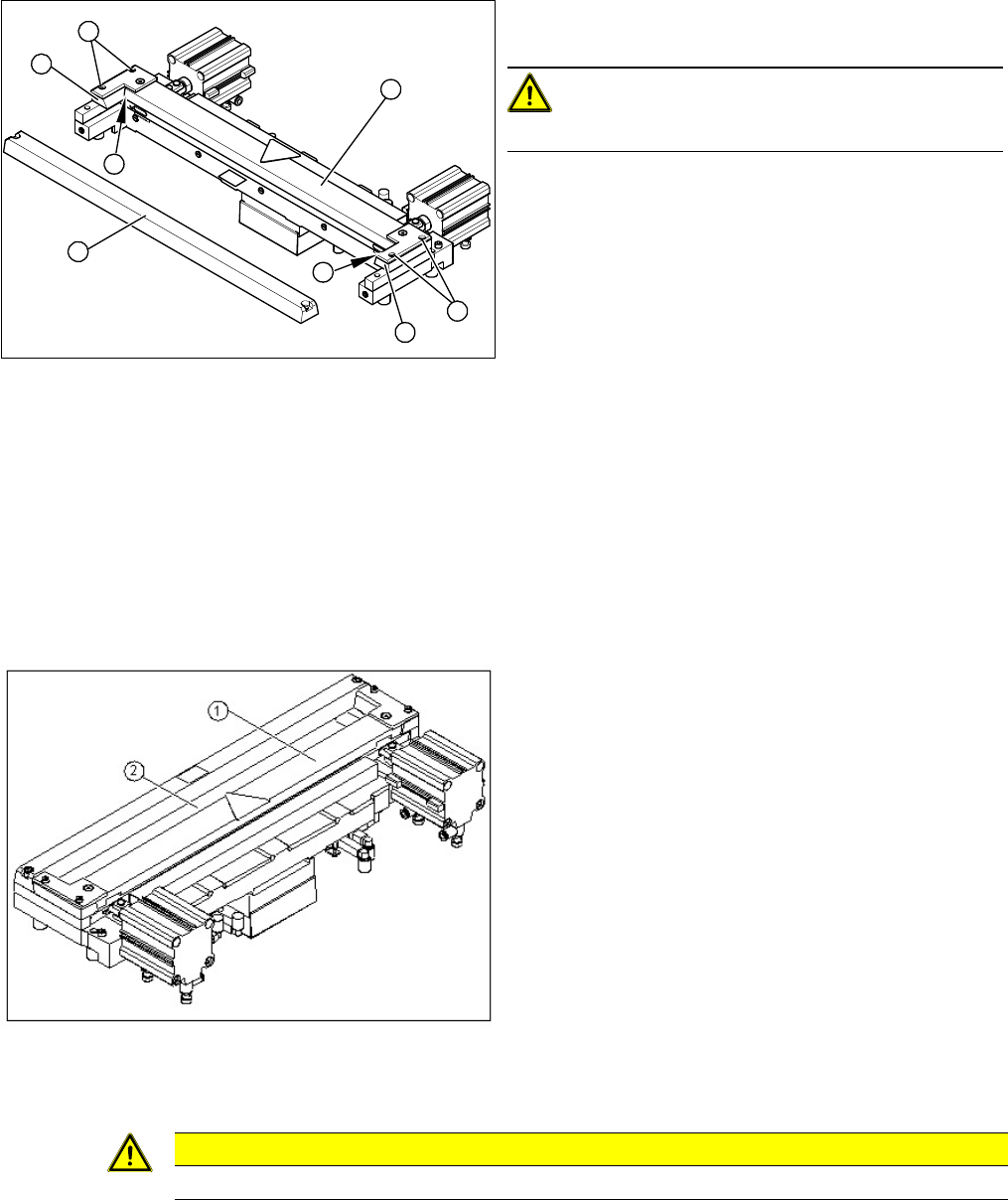

► Place a feeler gauge (0.5 - 1.0 mm thickness) on the

left and right, between the spacer and the front of the

moveable blade (1).

► Place the previously removed holding-down device

(2) onto the new spacers.

⇨ The holding-down devices with function status 03

are designed for use with cutters of function status

-04 (= with tape deflector).

► Use a feeler gauge to check the gap between the

tape deflector (1) and the moveable blade (2), along

the entire length and width of the blade.

⇨ The 0.05 mm feeler gauge should fit through the

gap.

⇨ The 0.25 mm feeler gauge should not fit through

the gap.

If the gap is not correct, check:

▪ Whether the wrong holding-down device has been in

stalled (with function status < 03)

▪ The holding-down devices are those designed for

cutters with function status -04 (= with tape deflector)!

▪ Whether the blades, tape deflector etc. were cleaned

before installation

CAUTION

Make sure that the cables and hoses are not trapped or subjected to excess strain.
