3.3.1 Replacing the Trailing Cable Gantries

Service Manual (internal version) SIPLACE HF and X Series 39

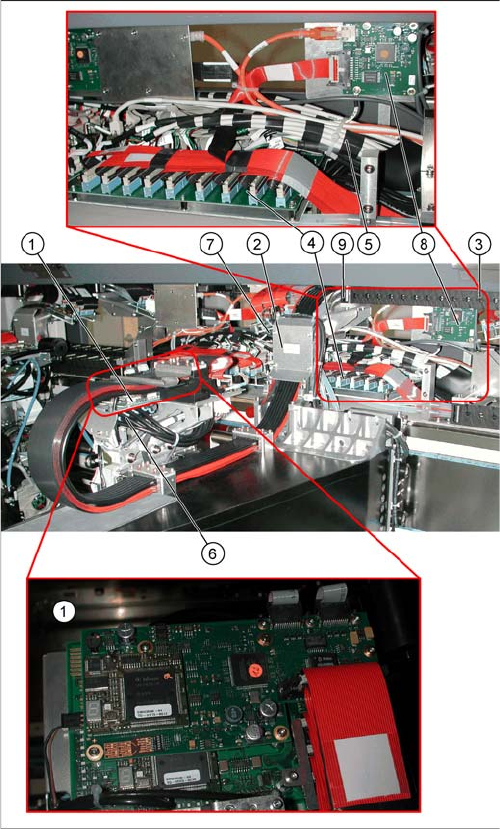

Overview

Version 1 from B-079

1. Head board with digital Vision board assembly

[03017836-xx]

2. Trailing cable console

3. Power track chain

4. Trailing unit interface gantry

5. Pneumatic hoses to the pneumatic distributor (in the

machine base)

6. Gantry distributor

7. Gantry Interface

8. Hotlink filter [03010670-xx]

9. Connection piece for cooling tubes to Y motor

► The flat ribbon cable and the camera cable are run

from the head board (1) via the trailing cable console

(2) and the power track chain (3) to the gantry inter

face (7) and the trailing cable interface gantry (4).

The camera cable ends at the hotlink board (8).

► The pneumatic hoses are fed from the pneumatic dis

tributor (6), via the trailing cable console (2) and the

power track chain (3) to the gantry distributor in the

machine base.

► Disconnect the camera cable from the hotlink board

(8).

► Remove cable ties where necessary.

CAUTION!

Note the order in which the terminal connections are ar

ranged.

Label the press-fit connections to the flat ribbon cable

and the camera cable, for easier reconnection later.

► Disconnect the Y motor cooling tubes at the connec

tion pieces (9).

Service Work

Gantries 3.3.1 Replacing the Trailing Cable

40 Service Manual (internal version) SIPLACE HF and X Series

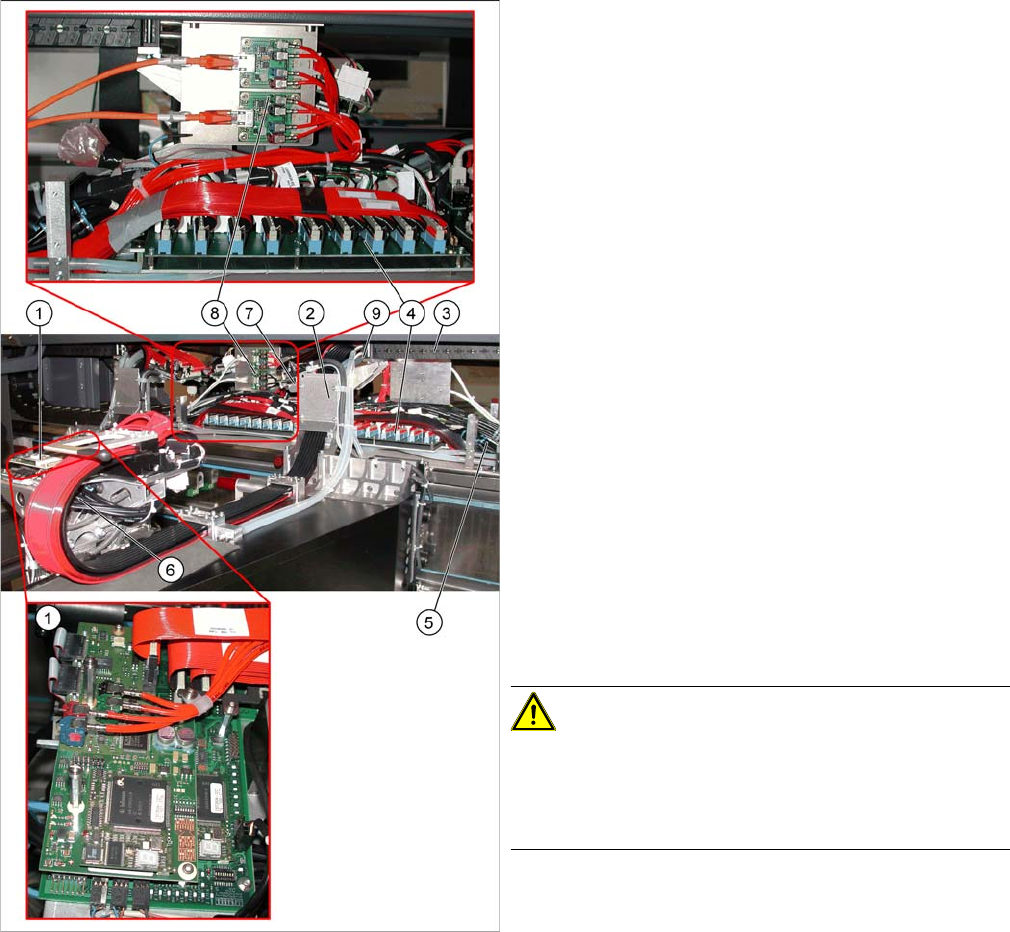

Version 2 after B-079

See also

 3.3.1.7.2 Preparing the Trailing Cable [ ➙ 37]

 3.3.1.4 Handling the Hose Unlocking Tool [03047090-xx] [ ➙ 24]

1. Vision board spread spectrum (VBSX) assembly

[03054634-xx]

2. Trailing cable console

3. Power track chain

4. Trailing unit interface gantry

5. Pneumatic hoses to the pneumatic distributor (in the

machine base)

6. Gantry distributor

7. Gantry Interface

8. Vision hotlink adapter VHA assembly [03054633-xx]

9. Connection piece for cooling tubes to Y motor

Service Work

3.3.1 Replacing the Trailing Cable Gantries

Service Manual (internal version) SIPLACE HF and X Series 41

Removal

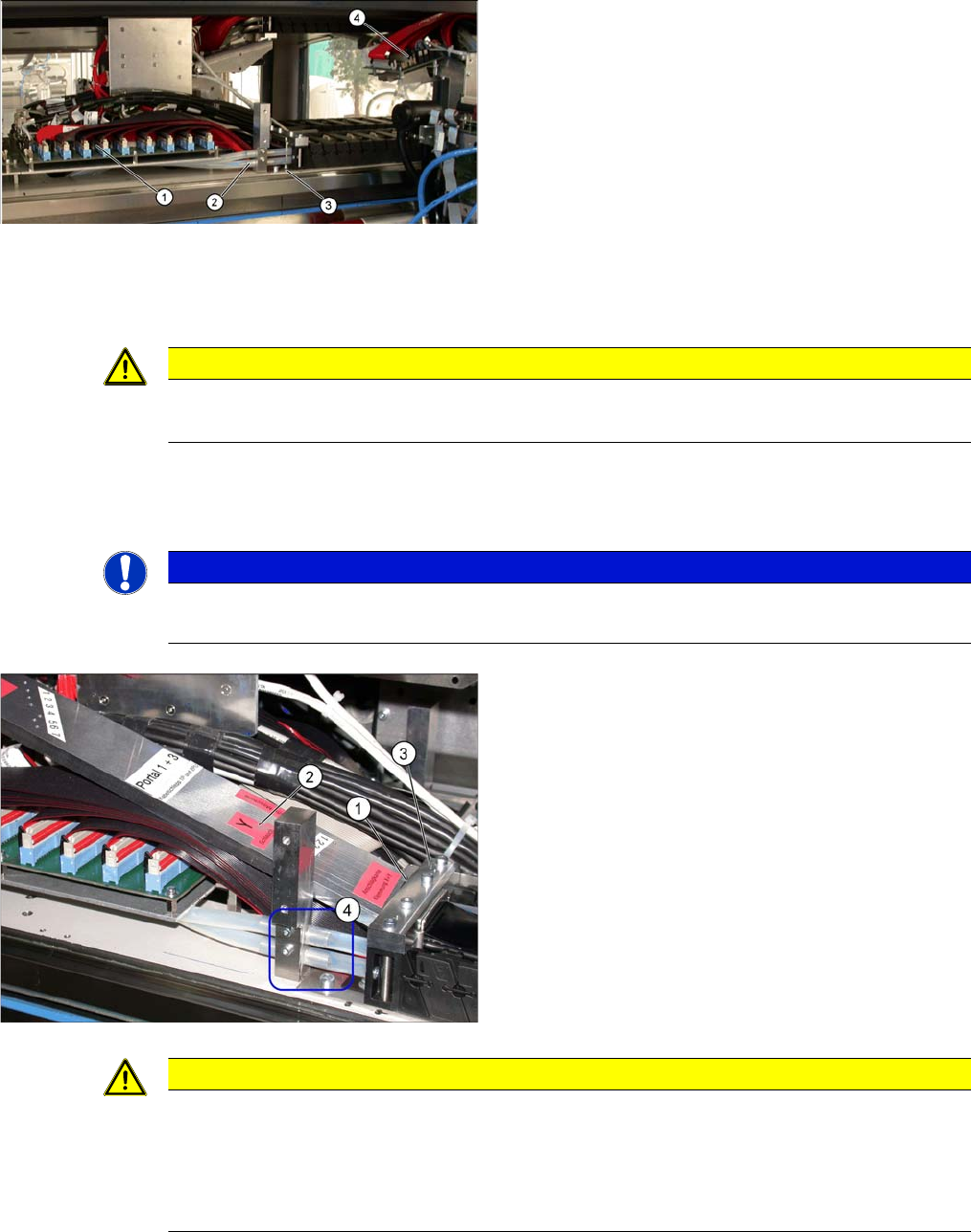

► Loosen the flat ribbon cable on the trailing cable interface gantry (1). Take care not to lose the brack

ets for the press-fit connections. They could fall out and be lost.

► Remove cable ties where necessary.

► Remove the necessary cable ties at the gantry interface (4) and disconnect the flat ribbon cable.

► Disconnect the motor, proximity switches, incremental encoder and temperature sensor cables from

the gantry interface (4).

1. Trailing unit interface gantry

2. Pneumatic for vacuum pump (option)

3. Mount for trailing cable

4. Gantry Interface

CAUTION

Note the order in which the terminal connections are arranged.

► Label the press-fit connections to the flat ribbon cables, for easier reconnection later.

NOTICE

Refitting the gantry interface board.

The gantry interface board is installed on the mount of the new trailing cable.

To sever the pneumatic hoses, which lead to the pneu

matic distributor inside the machine base, proceed as fol

lows:

► Place the gauge (1) on the mount (3).

► Use the gauge to label the hoses at the Y hose mark

(2).

CAUTION

Before cutting the pneumatic hoses

► Label the order of pneumatic hoses (from 1 to 7 – inside to outside). This is important to

ensure that the hoses are then correctly connected again after cutting.

► During cutting, make sure that the pneumatic hoses do not fall into the machine base. Se

cure them accordingly.
