Service Work
3.5.2 Settings the C&P20 (FSE) Jaws C&P20 Placement Head
Service Manual (internal version) SIPLACE HF and X Series 89
3.5.2.3
3.5.2.3 Procedure
Procedure
Preparatory steps

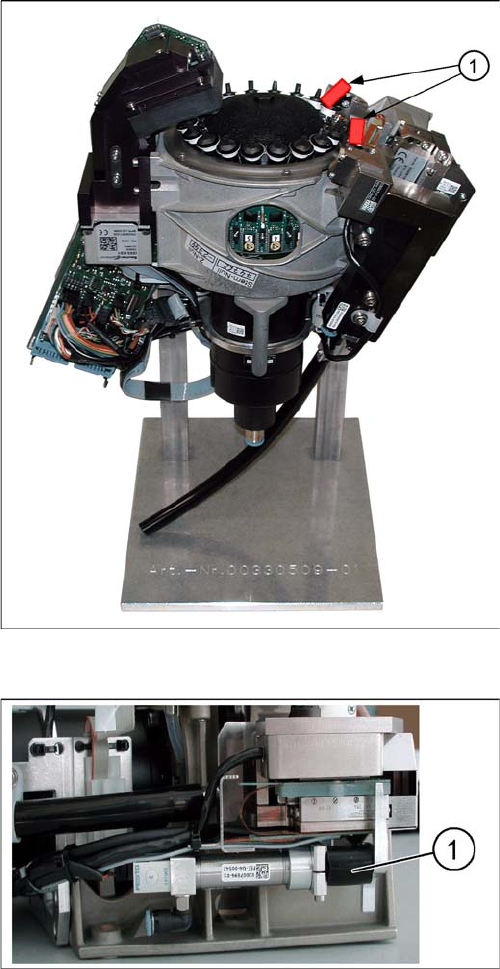

C&P20 placement head on placement head base
1. Red rubber hose - length approx. 20 mm
► To protect the component sensor, fit the red rubber
hose (1) onto the component sensor prisms. (Cut the
rubber hose into two 20 mm pieces.)
► Remove the placement head from the placement ma
-
chine.
► Fit the placement head onto the head rack
[00330509-01] (see diagram).
Fitting the hose piece onto the return unit
1. Hose for return unit
► Clamp the black hose piece D12 20 mm (1) from the
service pack, between the actuator and the housing
of the return unit.
This ensures that the Z axis can still be moved for lat
-
er adjustment and the return unit does not need to be
dismantled.
Service Work
C&P20 Placement Head 3.5.2 Settings the C&P20 (FSE) Jaws
90 Service Manual (internal version) SIPLACE HF and X Series

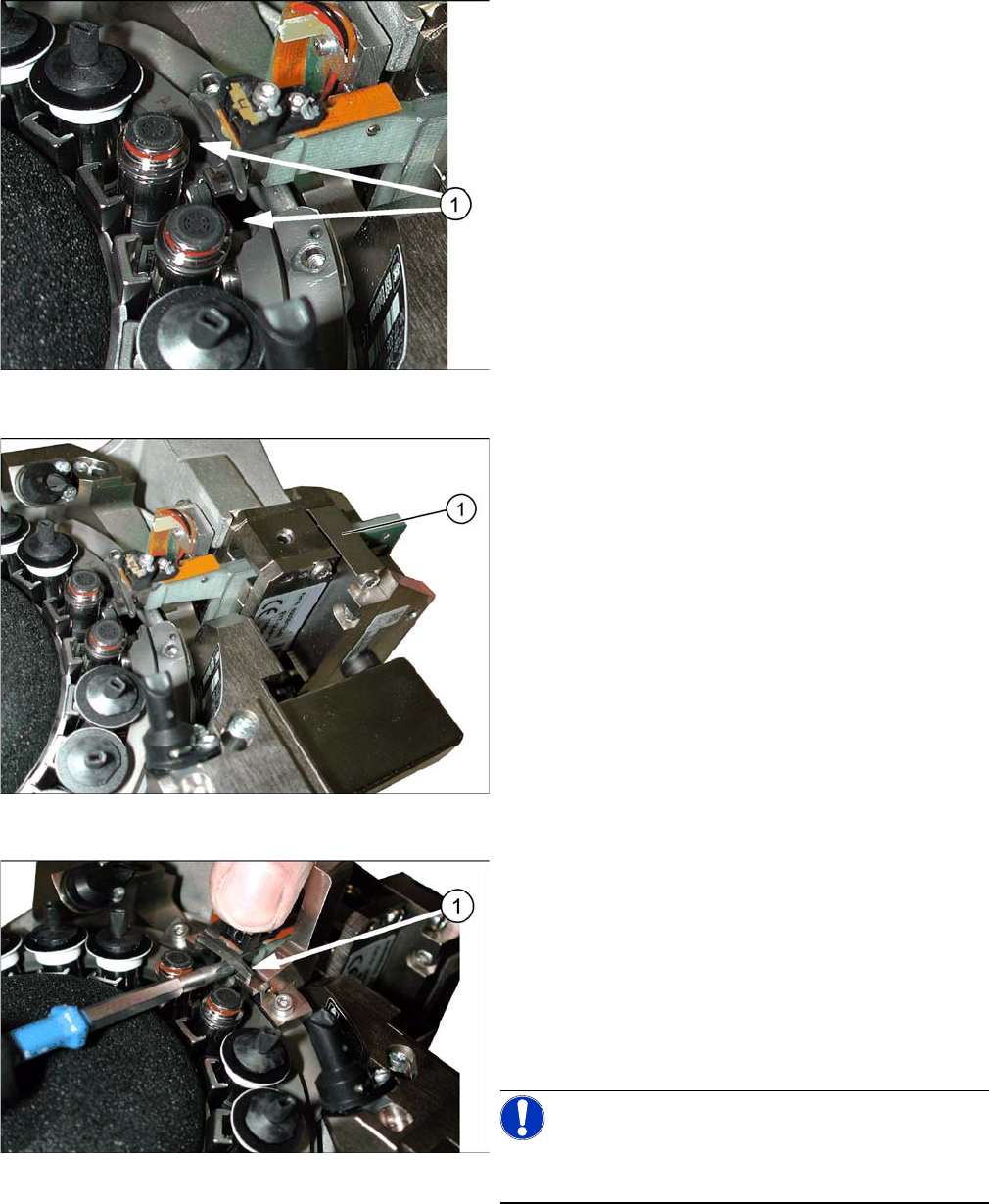

Dismantling the dead indexing plate
1. 2 segments without nozzles or dead indexing plate
► Remove the nozzles and dead indexing plates from
two neighboring segments.
Dismantling the Z axis cover
1. Z axis drive cover
► Remove the cover on the Z axis drive (1) (2 screws
on the raceway and one screw on the Z motor unit).
► Fasten the Z motor unit back into place with the orig
-
inal screw. This ensures that the Z motor unit is in the
exact position required for setting the jaws.
Screw fastening the jaws
1. Screw fastening the jaws
► Carefully loosen the screw fastening the jaws (1) so
that the jaws can be moved on the arms of the Z axis
(can be moved to the left and right).
Do not fit the gauge yet!
► Clean the raceway contact surface and the setting
gauge with a lint-free cloth.
NOTICE!
Always clean the contact surfaces before fitting the set
-
ting gauge!
Service Work
3.5.2 Settings the C&P20 (FSE) Jaws C&P20 Placement Head
Service Manual (internal version) SIPLACE HF and X Series 91

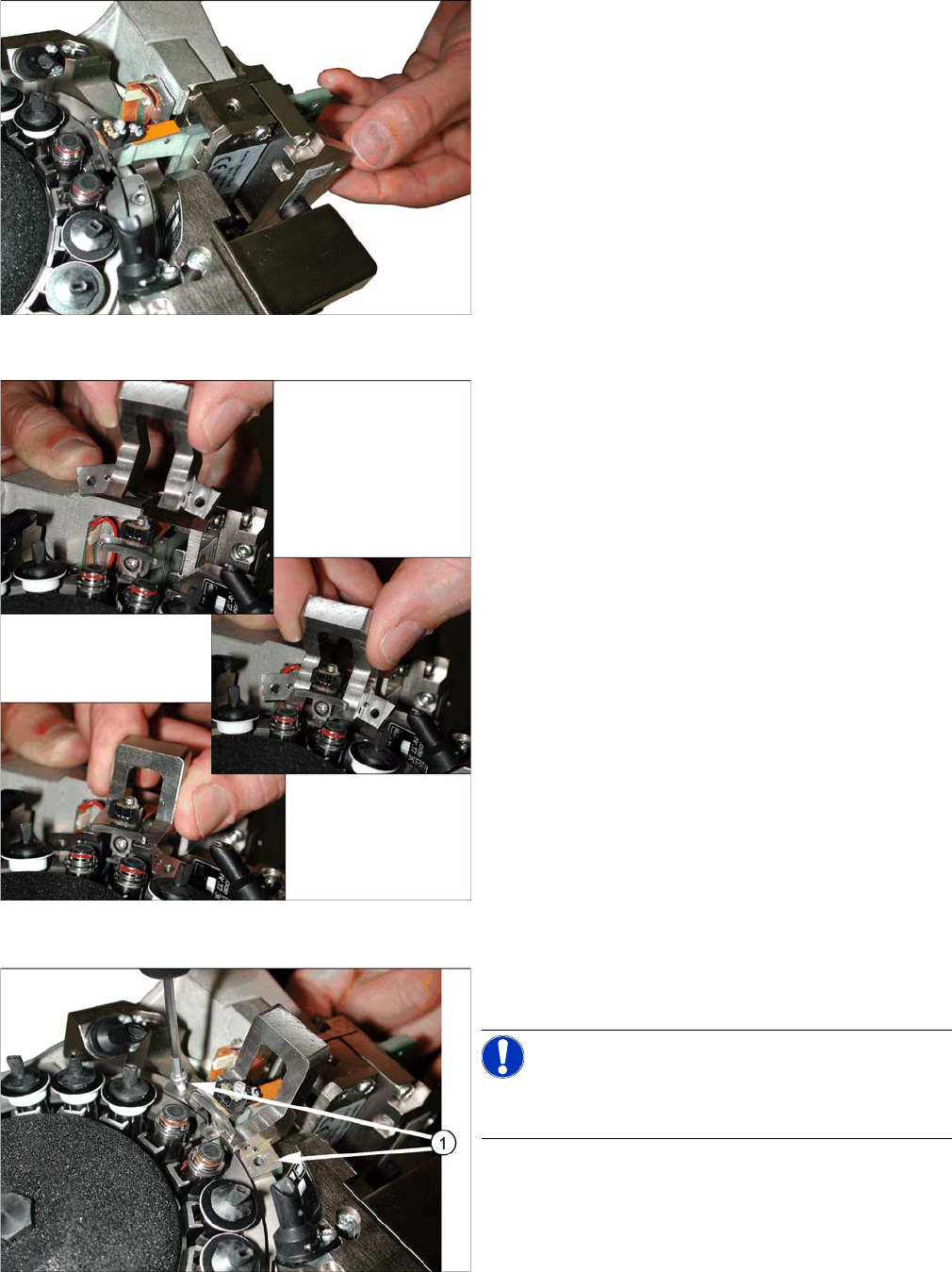

Fitting the setting gauge
Moving the Z axis arms out
► Rotate the star so that the jaws/arms of the Z axis are
centered between the two segments, without dead in
-
dexing plates.
► Move the Z axis out without the segment.
Fitting the setting gauge
► Place the jaw gauge on the raceway, ensuring that
the jaws lie flat on the contact surfaces.
Press the jaw gauge against the holes drilled in the
raceway, so that the centering pins engage with the
relevant holes.
Fixing the setting gauge with the M2.5x12 mm screws
► Fasten the gauge with the screws (1) from the service
kit (M2.5x12 mm).
NOTICE!
Do not use the original raceway screws to fix the setting
gauge! These are too short and could damage the thread!
