Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
17
4.4 SIPLACE CA-Series Hardware Components
NOTICE
The hardware configuration of the station computer and the optional Vision computer can
only be combined with a particular hardware configuration for the machine controller.
See the following table for details.
Station computer Machine controller Vision computer
(with 3D coplanarity sensor
option)
SIMATIC Box PC 627 SIMATIC Box PC 627 SIMATIC Box PC 627
4.4.1 Station Computer
Name SIMATIC Box PC 627
CPU / clock frequency Pentium M / 2 GHz
RAM 1 GB
Hard disk 40 GB
External DVD drive Yes
Serial interfaces 1
USB interfaces and external USB hub Yes
Network 2x 100 MBit
Table 4-10: Station computer hardware (configuration of SIPLACE CA-series)
4.4.2 Machine Controller
Name SIMATIC Box PC 627
CPU / clock frequency Pentium M / 2 GHz
RAM 1 GB
Hard disk 40 GB
External DVD drive Yes
Serial interfaces 1
USB interfaces and external USB hub Yes
Network 2x 100 MBit
Table 4-11: Machine controller hardware (configuration of SIPLACE CA-series)
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
18
4.4.3 Vision Computer (Optional)
Name SIMATIC Box PC 627
CPU / clock frequency Pentium M / 2 GHz
RAM 1 GB
Hard disk 40 GB
External DVD drive Yes
Serial interfaces 1
USB interfaces and external USB hub Yes
Network 2x 100 MBit
Table 4-12: Vision computer hardware (optional for SIPLACE CA3 with 3D coplanarity sensor)
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
19
4.5 Network Configuration
Station computer
Machine controller
10Base-T
100Base-T
Private network between
station computer,
Vision computer (optional)
and machine controller
SIPLACE LAN
SIPLACE Pro
Twisted Pair TP
(100 MB)
Twisted Pair TP
(10 MB)
Vision computer
(optional)
100Base-T

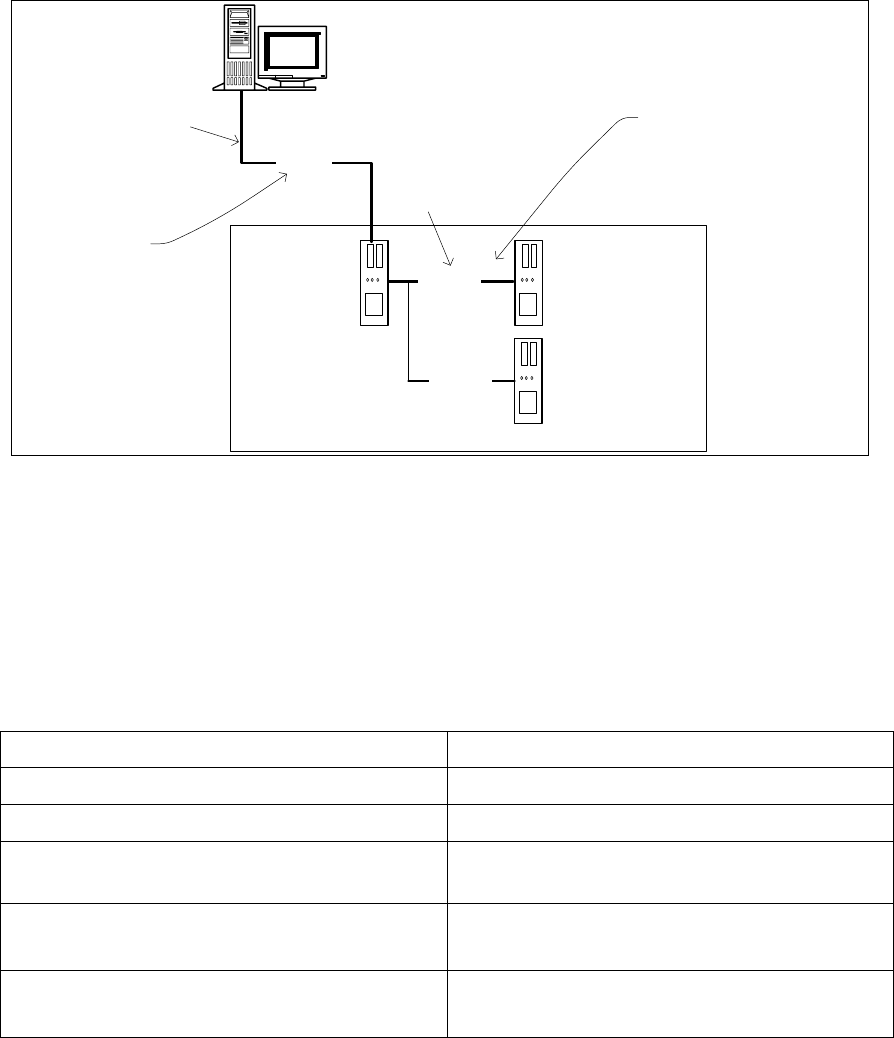

Figure 4-1: Network connections between the machine and SIPLACE Pro
A separate private network (100 Mbit) is set up between the station computer (and optionally the
Vision computer) and the machine controller via a subnet mask.
Fixed IP addresses for the station computer, Vision computer and machine controller can thus be
assigned for all SIPLACE machines. These IP addresses are not known outside the private
network, for instance in the SIPLACE LAN or customer LAN.
These IP addresses need not be further configured by the operator while the station software is
being installed.
IP address, station computer 192.168.255.249
IP address, machine controller 192.168.255.250
Vision computer IP Address 192.168.255.251
Subnet mask, station computer/machine
controller
255.255.255.248
IP address range, SIPLACE LAN or
IP address range, customer LAN
172.22.xxx.xxx
is configured on-site
Subnet mask for SIPLACE-LAN or
subnet mask for customer LAN
255.255.0.0
is configured on-site
Table 4-13: Network configuration
