Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
23
5.3.3 Calibrating the Touch Screen
5.3.3.1 Calibrating the Touch Screen for the X-Series and CA-Series
► Choose Start
Settings
TouchWare, to start the TouchWare Properties program.
Figure 5-2: TouchWare Properties
► Open the Multiple Monitors tab.
Figure 5-3: TouchWare Properties – Multiple Monitors tab
► Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
24
Figure 5-4: "Multiple Monitor Layout" dialog box
► Click the Mirrored Monitors button.
► Confirm your entry with OK.
The touch screens are now mapped and the "Multiple Monitors" tab is displayed again.
Figure 5-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
25

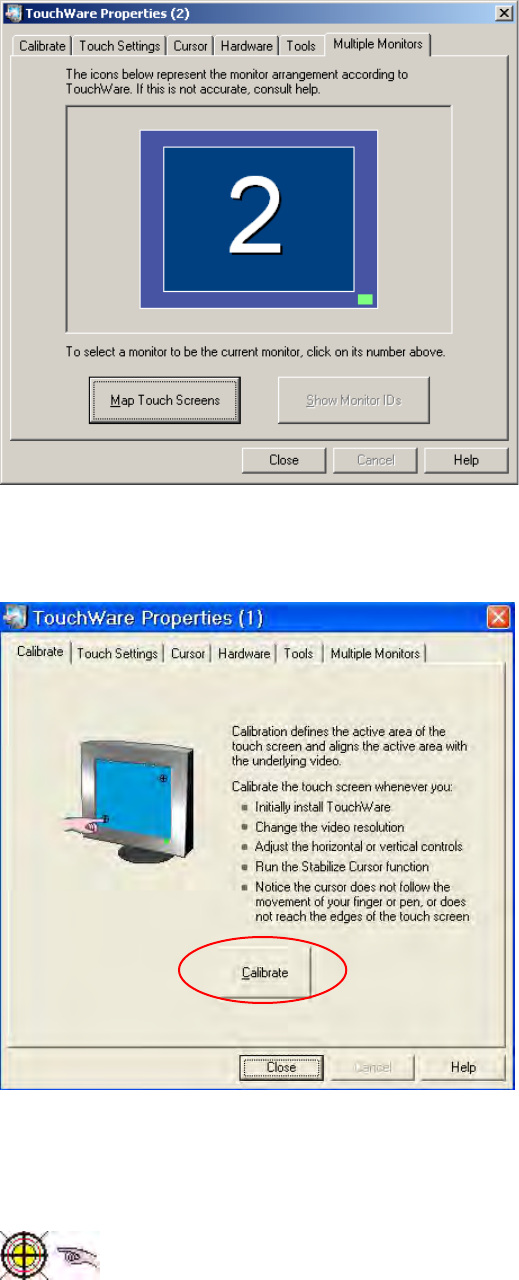

Figure 5-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2)
► Click the number of the monitor you wish to calibrate.
► Open the Calibrate tab.
Figure 5-7: TouchWare Properties – Calibrate tab (example for Monitor 1)
► Click the Calibrate button.
An icon representing the calibration is shown on screen. An icon representing a hand guides
you through the calibration steps by pointing to the calibration icon you must touch.
Figure 5-8: Calibration marks
