5.4.4 Welcome Screen

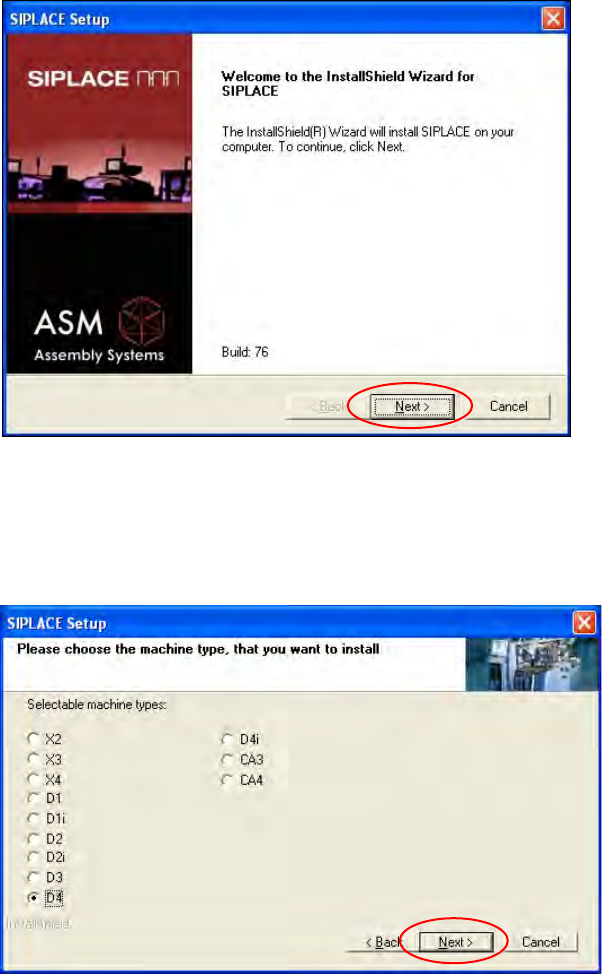

Figure 5-18: Welcome screen
► Click the Next button
5.4.5 Selecting the Machine Type
Figure 5-19: Selecting the machine type
► Select the option for the machine type for which the software is to be configured.
► Click the Next button
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
33
5.4.6 Selecting the Hardware Configuration
The Hardwareconfiguration dialog box is opened, in which you can configure the hardware for
one-computer or two-computer operation. Two-computer operation has always to be selected for
X- and CA-series placement machines. For D-series placement machines the selection should
match the actual hardware configuration.

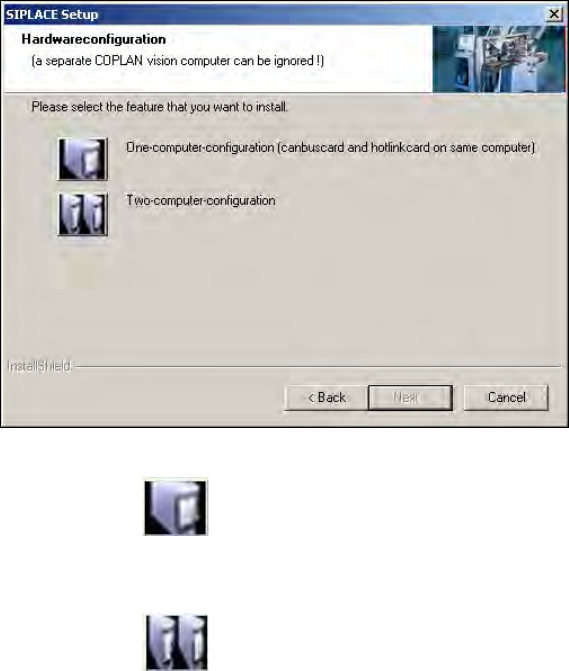

Figure 5-20: Selecting the hardware configuration
► Click on the One-computer-configuration button for one-computer operation.
Or
► Click on the Two-computer-configuration for two-computer operation.
► Click on the Next button.
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
34
5.4.7 Entering the Machine Identification Number (MID)

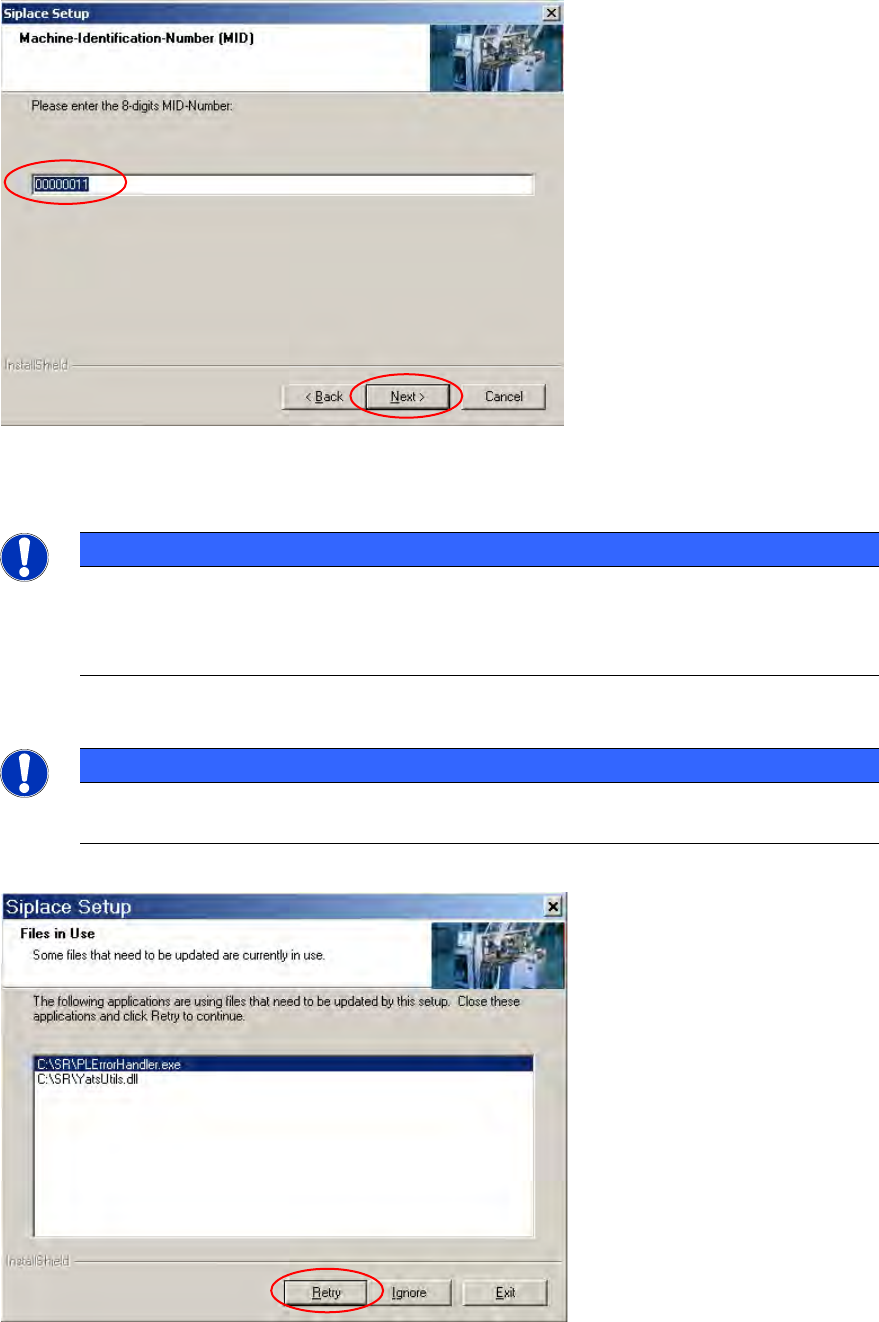

Figure 5-21: Entering the Machine Identification Number (MID)
► In the text box, enter the 8-digit machine identification number.
NOTICE
You will find the MID on an adhesive label on the side of the protective covers directly
below the label for the number of the relevant location. Only the first eight digits with
leading zeros must be entered. The number following the dash after the MID specifies
the location (e.g. 00000001-2 stands for location 2).
► Click the Next button.
NOTICE
The following screen only appears if applications are open which use files which must be
updated during installation of SIPLACE.
Figure 5-22: Open applications
