Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
25
Figure 5-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2)
► Click the number of the monitor you wish to calibrate.
► Open the Calibrate tab.
Figure 5-7: TouchWare Properties – Calibrate tab (example for Monitor 1)
► Click the Calibrate button.
An icon representing the calibration is shown on screen. An icon representing a hand guides
you through the calibration steps by pointing to the calibration icon you must touch.
Figure 5-8: Calibration marks
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
26
NOTICE
► Touch the calibration icon within 20 seconds, otherwise calibration is automatically
canceled.
► Make sure that you are standing directly in front of the monitor.
► Carry out calibration in the position (standing or seated) you normally adopt when
working at this screen.
► Touch the calibration icon firmly and accurately with your fingertip.
► Make sure that you do not inadvertently touch the screen with any other finger.
► Touch the calibration icon with your finger and make sure that the yellow area is completely
covered by your finger. The message "Hold" appears around the hand icon.
► Keep your finger on the calibration icon until the "Touch Enabled" message appears. A second
calibration icon now appears.
► Repeat the steps described above for the second calibration icon.
A dialog box then appears asking you to test the calibration. You can carry out the calibration
again if you are not sure that you have carried it out correctly the first time.
► Carry out the procedure described above for the second screen as well.
► Click the Close button to close the program.
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
27
5.3.3.2 Calibrating the Touch Screen for the D-Series
► Select Start Program Files PenMount Utilities PenMount Control Panel to start the
touch screen calibration applet.

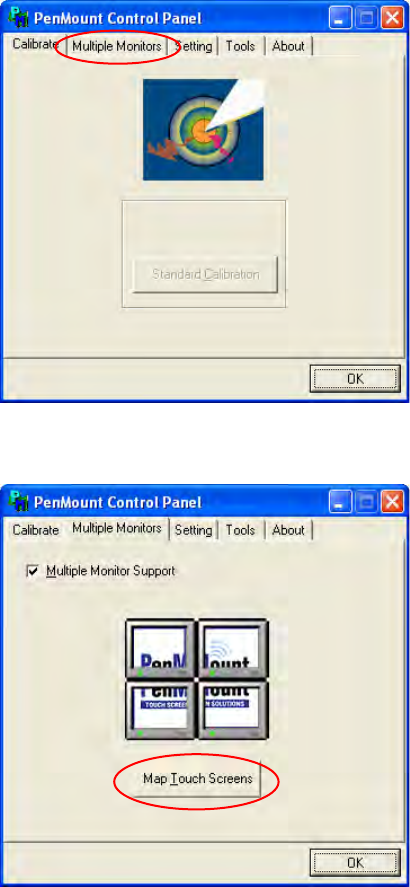

Figure 5-9: PenMount Control Panel
► Open the Multiple Monitors tab.
Figure 5-10: PenMount Control Panel – Multiple Monitors tab
► Check the Multiple Monitor Support box.
► Click the Map Touch Screens button.
The "Mapping" dialog box opens.
