Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
37
5.5 Finish the Installation
5.5.1 Miscellaneous
► Check the eSW firmware versions and download if necessary.
► Start the reference run of the machine.
► After an upgrade to the 605.xx software version, calibrate the heads of the D1 / D1i, D2 / D2i
and D4 / D4i machines, if necessary. The temperature compensation is activated for these
machines.
If the data base for the axes has changed after an upgrade or an installation, and one or more
gantry axes (X,Y) are displaced by exactly 50mm, the reference point on the axis/axes scale has
been displaced by one position and the zero point correction is not correct for these axes anymore.
In this case the following steps are required:
► Recalibrate the machine zero point.
► Redetermine the traversing range.
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
38
6 Uninstalling the SIPLACE Software
NOTICE
You must be logged in as administrator to uninstall the software.
► Open the Start menu and choose Programs SIPLACE SIPLACE Uninstall.

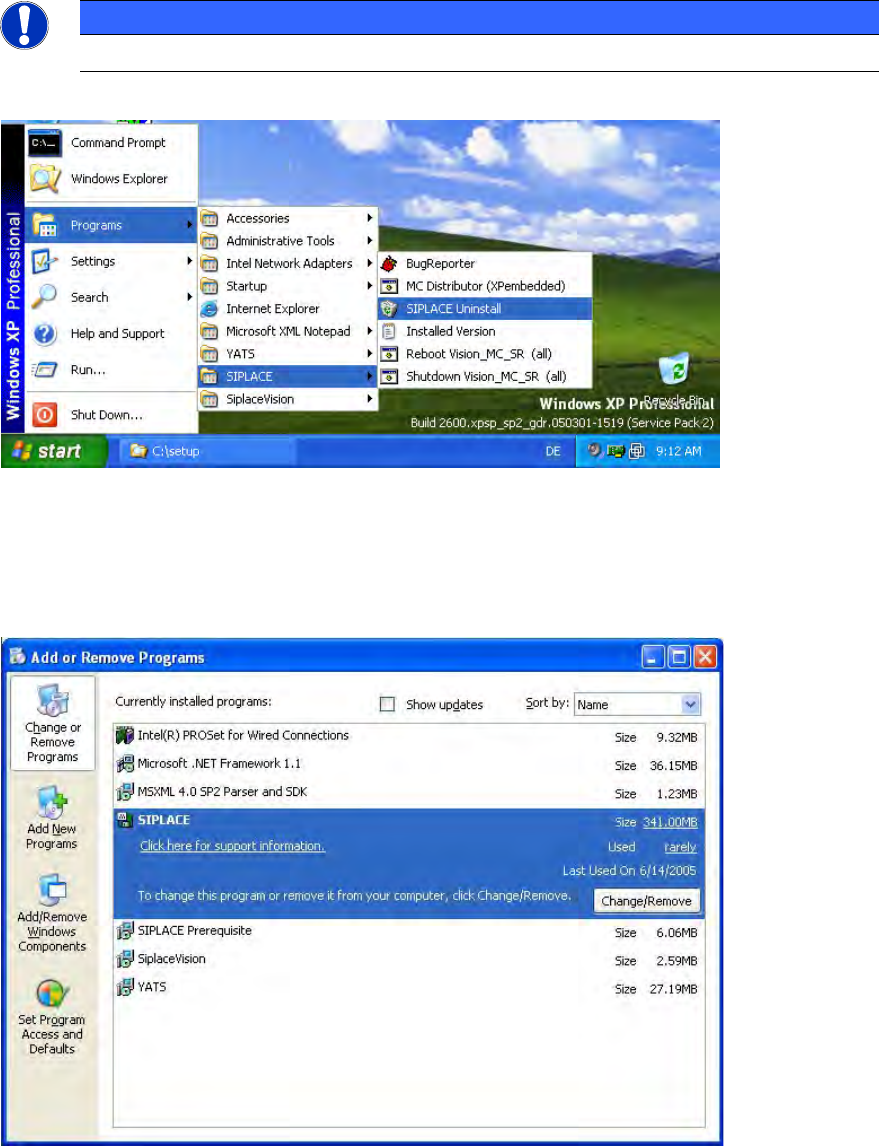

Figure 6-1: Starting uninstallation (alternative 1)
Or:
► Open the Start menu and choose Settings Control Panel.
► Double-click Add/Remove Programs.
Figure 6-2: Starting uninstallation (alternative 2)
► Select SIPLACE from the list of installed programs.
► Click the Change/Remove button.
Station Software 605.03 SP4 / Installation Manual Ausgabe 04/2013 Edition
39
The installation program now uninstalls the SIPLACE software including the SIPLACE hot fixes,
SIPLACE Language Pack and SIPLACE Vision.
Figure 6-3: Finalizing uninstallation
► Click the Finish button.
The SIPLACE software and SIPLACE Vision have now been uninstalled correctly.
