Celsius W520 with Windows 7 03/2014 Edition
51
5 After Installation
5.1 Partitioning the second and third hard disk
After installation of the Operating System, you might need to partition the second hard disk before
you are able to access it.
If you open Windows Explorer and only see a single logical drive (C: ), your second hard disk
requires partitioning.
Figure 5-1: Windows Explorer only showing a single Hard Disk Drive C:
To partition your second hard disk, you have to perform the following steps.
Figure 5-2: Opening the Computer Management
► Click the Windows button.
► Right- click at the "Computer" entry and select "Manage".
The Computer Management window opens.
Celsius W520 with Windows 7 03/2014 Edition
52
► In the left tree view, open the folder "Storage" and click at "Disk Management".
The following window might appear.

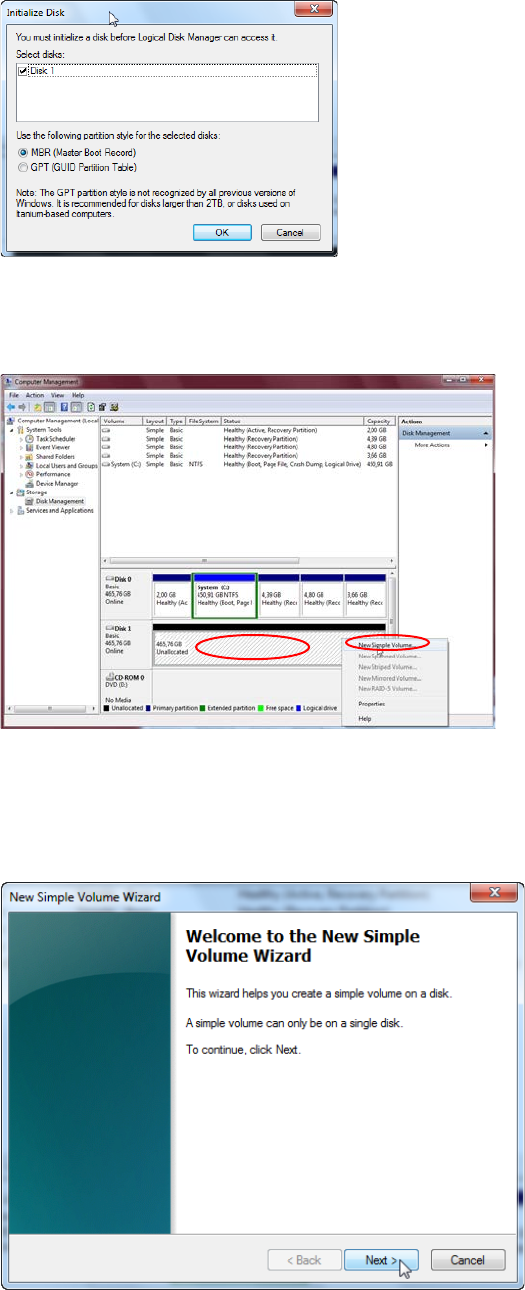

Figure 5-3: Computer Management asking for initialization of Disk 1 (second hard disk)
► Click OK to accept initialization of the second hard disk with the MBR (Master Boot Record).
After that, you have to create a partition on the hard disk.
Figure 5-4: Creating a partition on second hard disk – Step 1
► Right- Click in the empty right area besides "Disk1".
► Select "New Simple Volume…"
The New Simple Volume Wizard opens.
Figure 5-5: Welcome Message of New Simple Volume Wizard
► Click the Next > button to continue.
Celsius W520 with Windows 7 03/2014 Edition
53
Figure 5-6: Defining Partition Size in New Simple Volume Wizard
► If you want to create multiple partitions, you may enter a lower value.
► If you want to create only one additional partition, leave the default value.
► Click the Next > button to continue.
In the next step, you are allowed to choose the drive letter.
Figure 5-7: Assigning a drive letter in New Simple Volume Wizard
► Select an appropriate drive letter for your additional drive.
NOTICE
Some drive letters might be already assigned
If you want to choose a drive letter which is already assigned by another drive, you will
have to change the letter of the other drive first (only free drive letters are shown). In this
case, cancel the wizard. Then you can assign a new letter by right- clicking the drive
(e.g. “CD-ROM 0”) in Computer Management and selecting “Change Drive Letter and
Paths…”
