Celsius W520 with Windows 7 03/2014 Edition
6
2 Preparation
Before installing the computer, some preparation tasks have to be performed.
2.1 Interfaces Overview
The following pictures show an overview of your computer hardware.
Figure 2-1: Front of Celsius W520 computer
Celsius W520 with Windows 7 03/2014 Edition
7

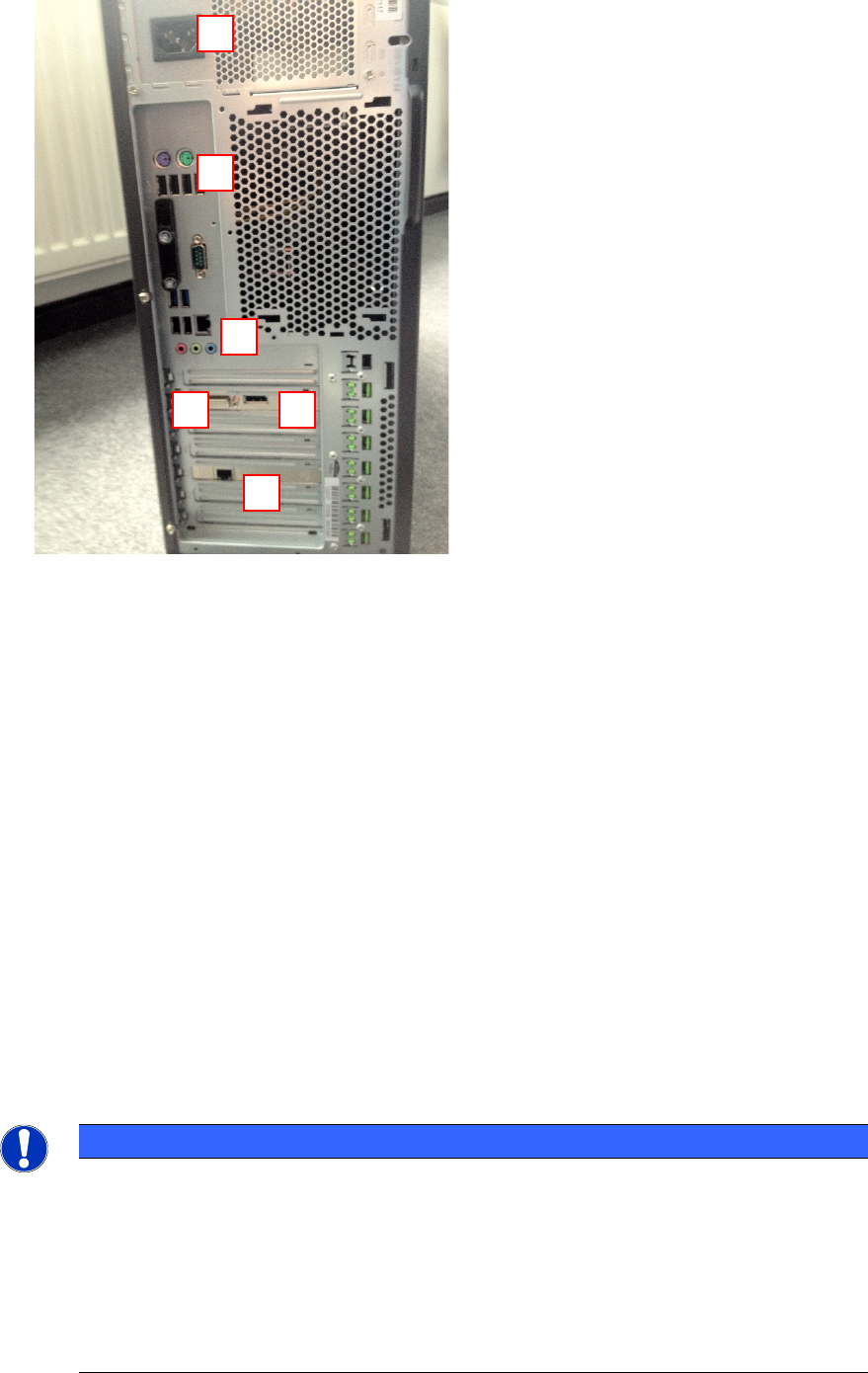

Figure 2-2: Back of Celsius W520 computer
Legend:
1) First Monitor Connector (DVI) to graphics card. For monitors with VGA you have to use the
delivered DVI to VGA adapter additionally
2) Second Monitor Connector (Display Port) to graphics card. Use the delivered adapter cable
to connect the second Monitor using DVI.
3) SIPLACE LAN Network connection
4) Additional onboard LAN connection (not used)
5) PS/2 and USB Ports for keyboard, mouse and other peripherals
6) Power connector
2.2 Used network connections
► Before you begin, please ensure that you have connected the SIPLACE LAN network cable
(usually IP range 172.22.x.x) to the external network adapter at the bottom and removed all
other network cable connections.
NOTICE
Network Adapter Identification
For simple identification of the appropriate SIPLACE LAN network adapter later after
installation, it is strongly recommended to disconnect all other adapters.
SSD Hard Disc
The W520 LLC has three hard discs. The SSD is recommended for the operating
system, the other two discs are intended for the product database. Please consider this
1
2
3
4
5
6
Celsius W520 with Windows 7 03/2014 Edition
8
2.3 BIOS Settings
For this computer, you don't have to modify BIOS settings for proper installation.
2.4 Choose Operating System Architecture
Before you begin with the installation, you should decide which architecture of the Operating
System should be used.
In this installation package, you have the choice between the 32 bit (x86) and the 64 bit (x64)
version of Windows 7 Professional. The 64 bit version of Windows 7 is pre-installed.
If you don't plan to use software or hardware which explicitly needs a 32 bit Operating System, we
recommend using the 64 bit version.
64 Bit Windows requires 64 Bit Hardware Drivers
If you don't have 64 bit drivers for you hardware, you can’t use it with the 64 b
