SIPLACE 80 S-20 Cable Terminal strip C9 04 - co nversion board C0 003 (c rash sign al) 3.5 - 75 Cable T ermina l strip C 904 - conversi on boa rd C00 03 (crash s igna l) 321587 31.dw g 00321587 -0301 01LD4 Cable T ermin …

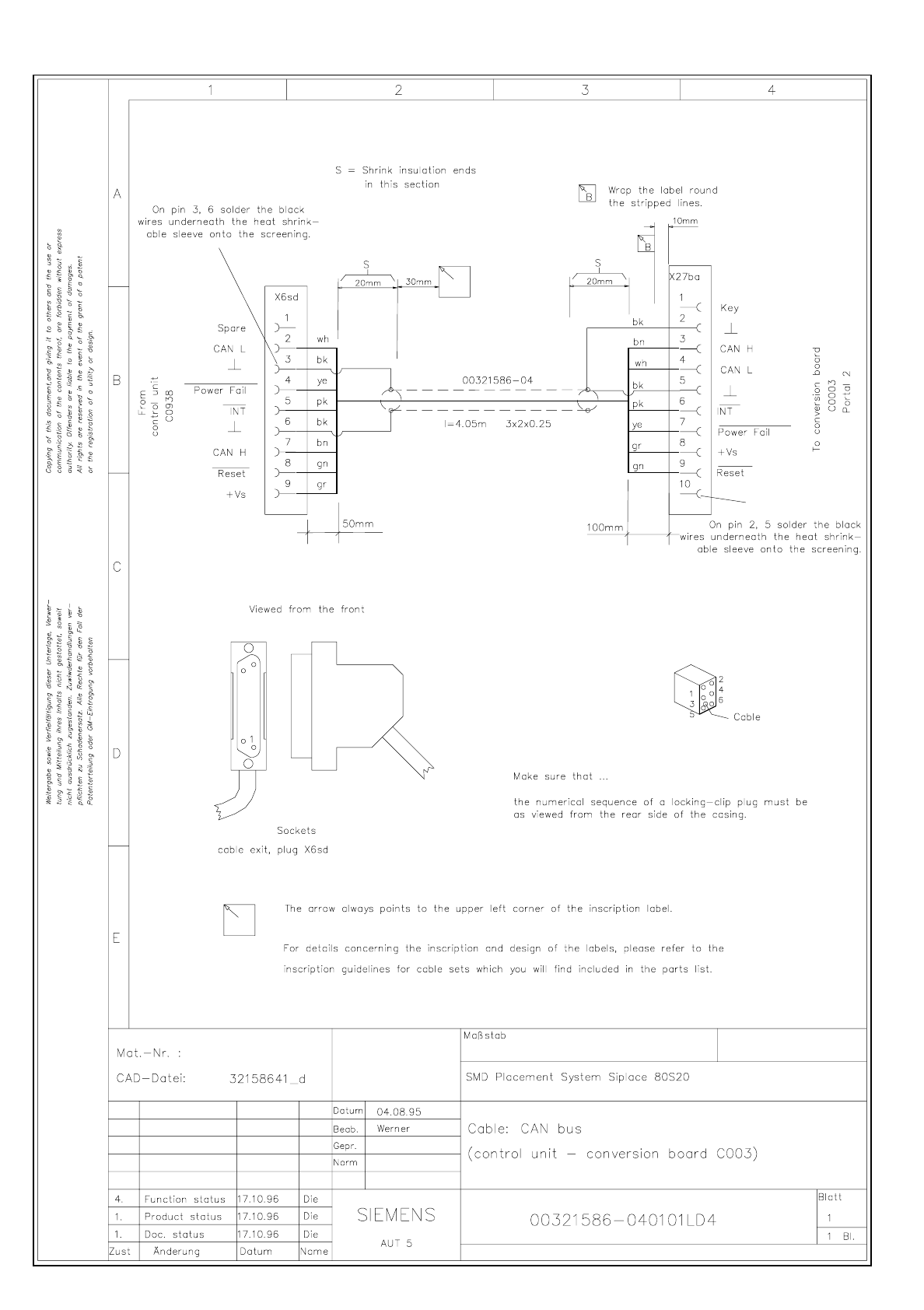

3.5 - 74 Cable CAN bus (control unit - conversion board C003) SIPLACE 80S-20
Cable CAN bus (control unit - conversion board C003)
32158641.dwg
00321586-040101LD4 Cable CAN bus (control unit - conversion board C003)

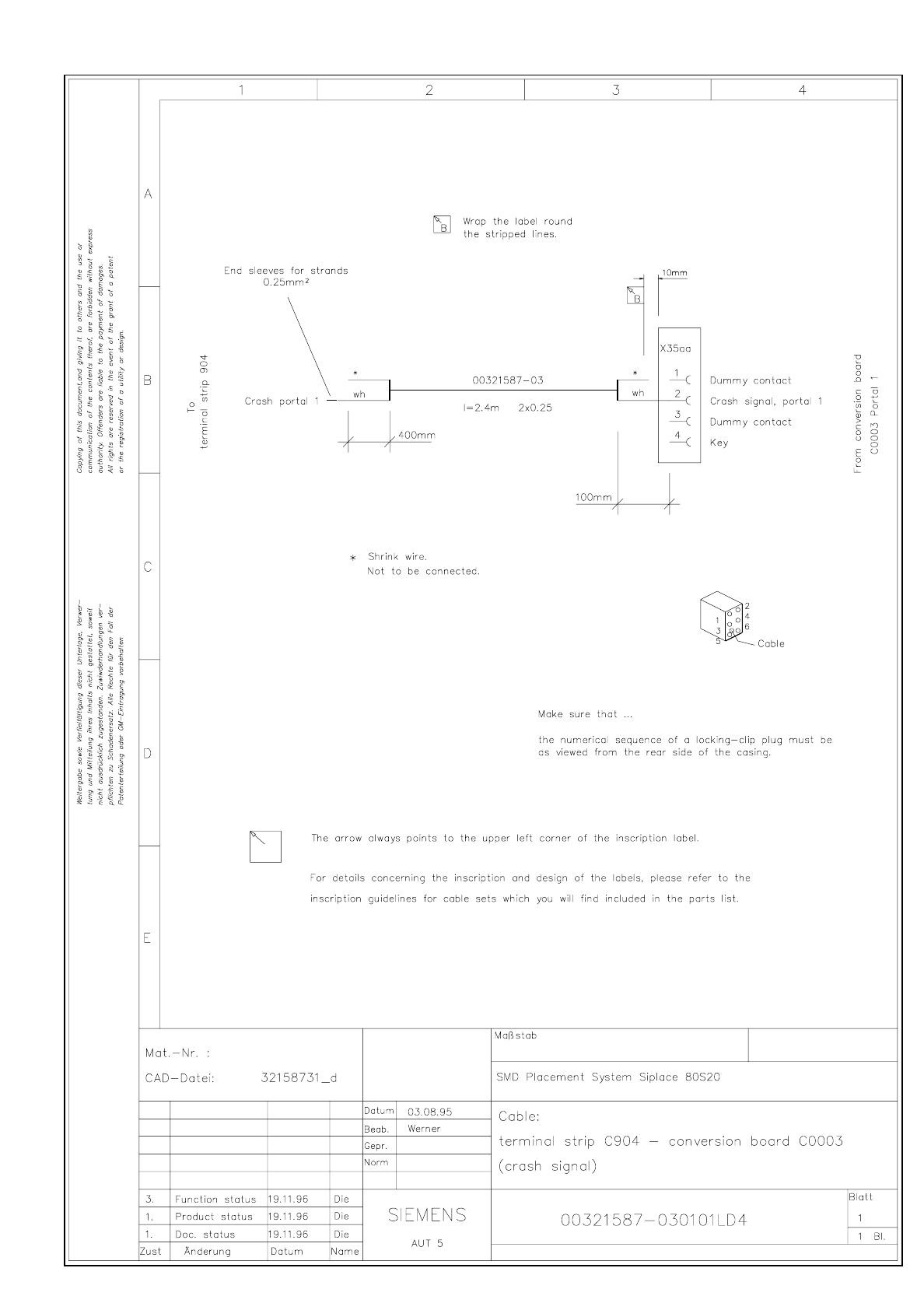

SIPLACE 80S-20 Cable Terminal strip C904 - conversion board C0003 (crash signal) 3.5 - 75
Cable Terminal strip C904 - conversion board C0003 (crash signal)
32158731.dwg
00321587-030101LD4 Cable Terminal strip C904 - conversion board C0003 (crash signal)
3.5 - 76 Cable Terminal strip C904 - conversion board C0003 (distance sensor) SIPLACE 80S-20
Cable Terminal strip C904 - conversion board C0003 (distance sensor)
32158831.dwg
00321588-030101LD4 Cable Terminal strip C904 - conversion board C0003 (distance sensor)
