3.12 - 28 Cable H alf bridge board - base wi ring (conv eyor mot ors) (Sh. 1 of 2) SIPL ACE 80S -20 Cabl e Hal f br idge boar d - b ase wi rin g (c onvey or moto rs) (S h. 1 o f 2) Y0653L3 1.dwg 171047 0-Y0 653-000- 02-L…
SIPLACE 80S-20 Cable Power supply lifting table step motor (Sh. 4 of 4) 3.12 - 27
Cable Power supply lifting table step motor (Sh. 4 of 4)
3207734d.dwg
00320773-040501LD4 Cable Power supply lifting table step motor (Sh. 4 of 4)
3.12 - 28 Cable Half bridge board - base wiring (conveyor motors) (Sh. 1 of 2) SIPLACE 80S-20
Cable Half bridge board - base wiring (conveyor motors) (Sh. 1 of 2)
Y0653L31.dwg
1710470-Y0653-000-02-L-03-4 Cable Half bridge board - base wiring (conveyor motors) (Sh. 1 of 2)

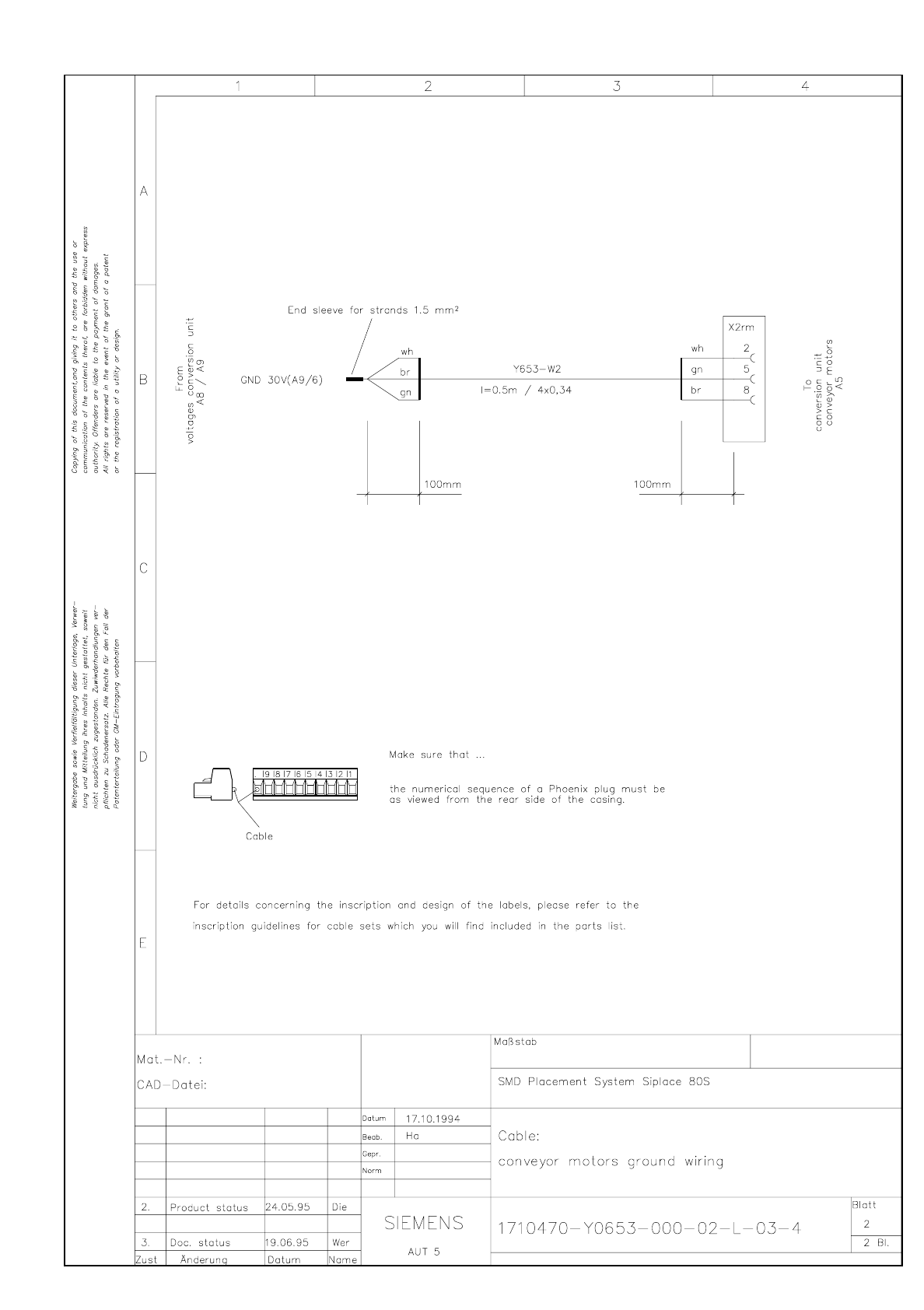

SIPLACE 80S-20 Cable Conveyor motors ground wiring (Sh. 2 of 2) 3.12 - 29
Cable Conveyor motors ground wiring (Sh. 2 of 2)
Y0653L32.dwg
1710470-Y0653-000-02-L-03-4 Cable Conveyor motors ground wiring (Sh. 2 of 2)
