3.12 - 12 Cable Moto rs inpu t convey or/center conveyo r SIPLACE 80S-20 Cable Motors input co nveyor /center con veyor Y0603L0 6.dwg 171046 0-Y0603 -000- 05-L-06- 4 Cable Moto rs input conveyo r/center co nveyor

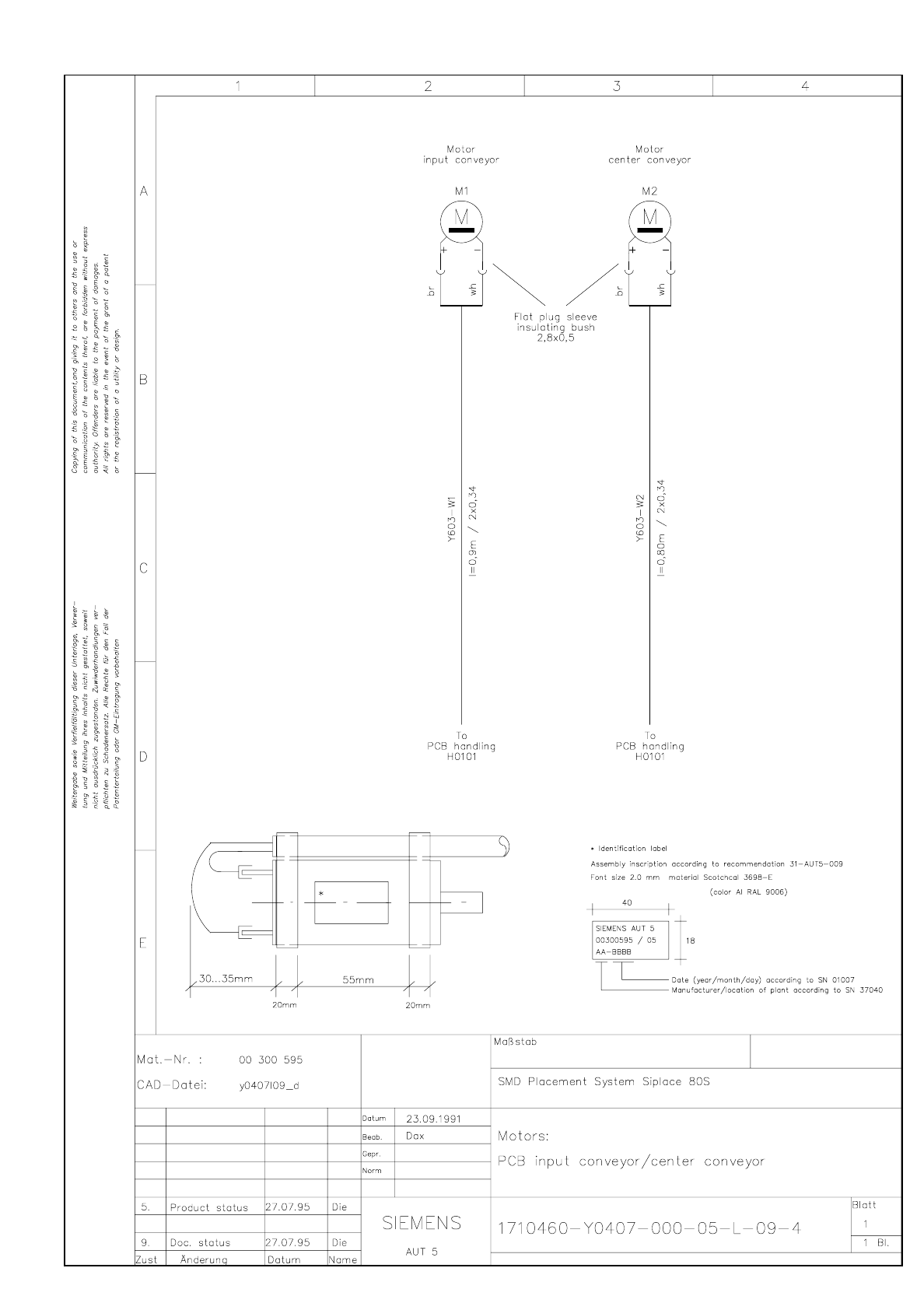

SIPLACE 80S-20 Motors PCB input conveyor/center conveyor 3.12 - 11
Motors PCB input conveyor/center conveyor
Y0407L09.dwg
1710460-Y0407-000-05-L-09-4 Motors PCB input conveyor/center conveyor

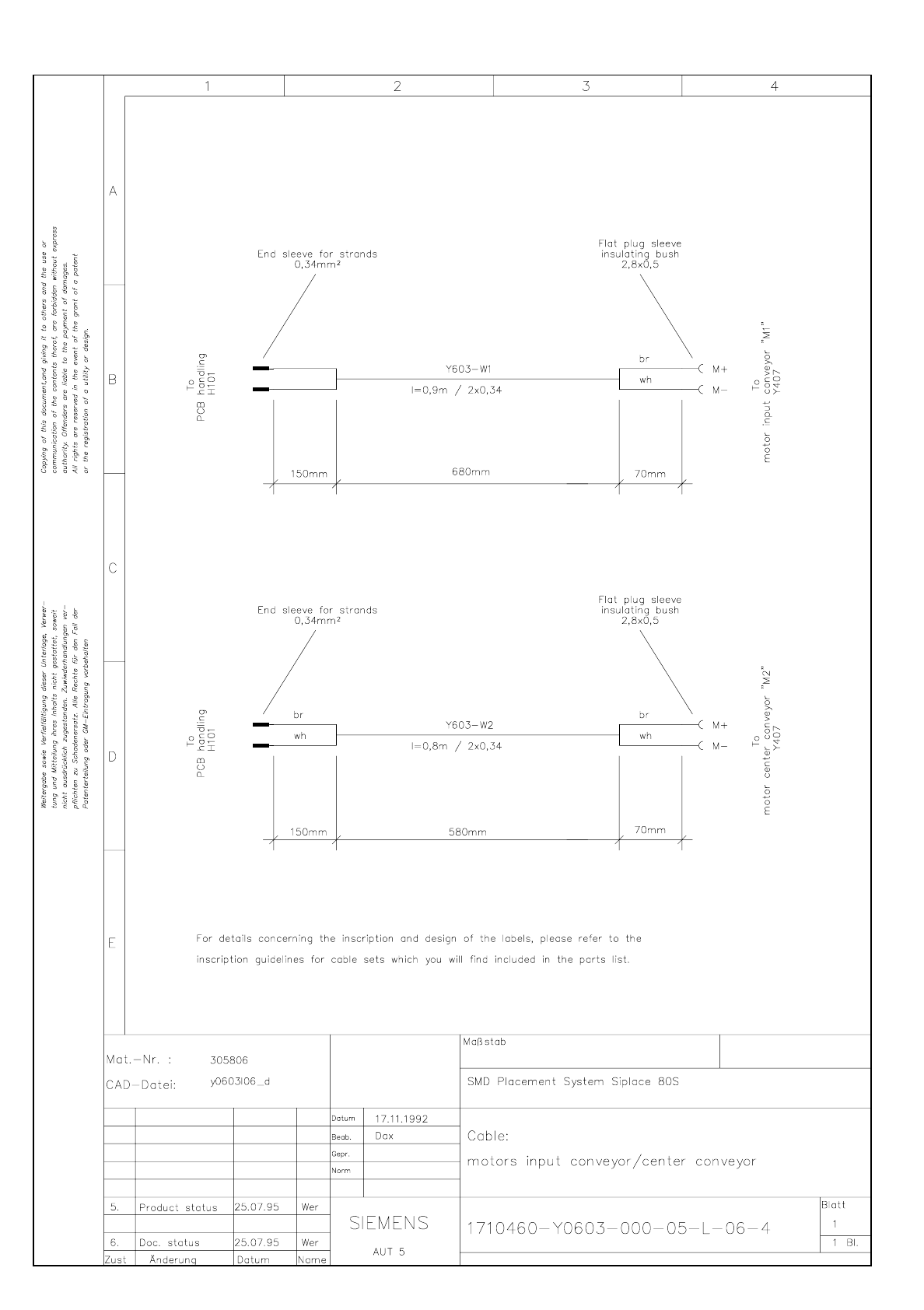

3.12 - 12 Cable Motors input conveyor/center conveyor SIPLACE 80S-20
Cable Motors input conveyor/center conveyor
Y0603L06.dwg
1710460-Y0603-000-05-L-06-4 Cable Motors input conveyor/center conveyor

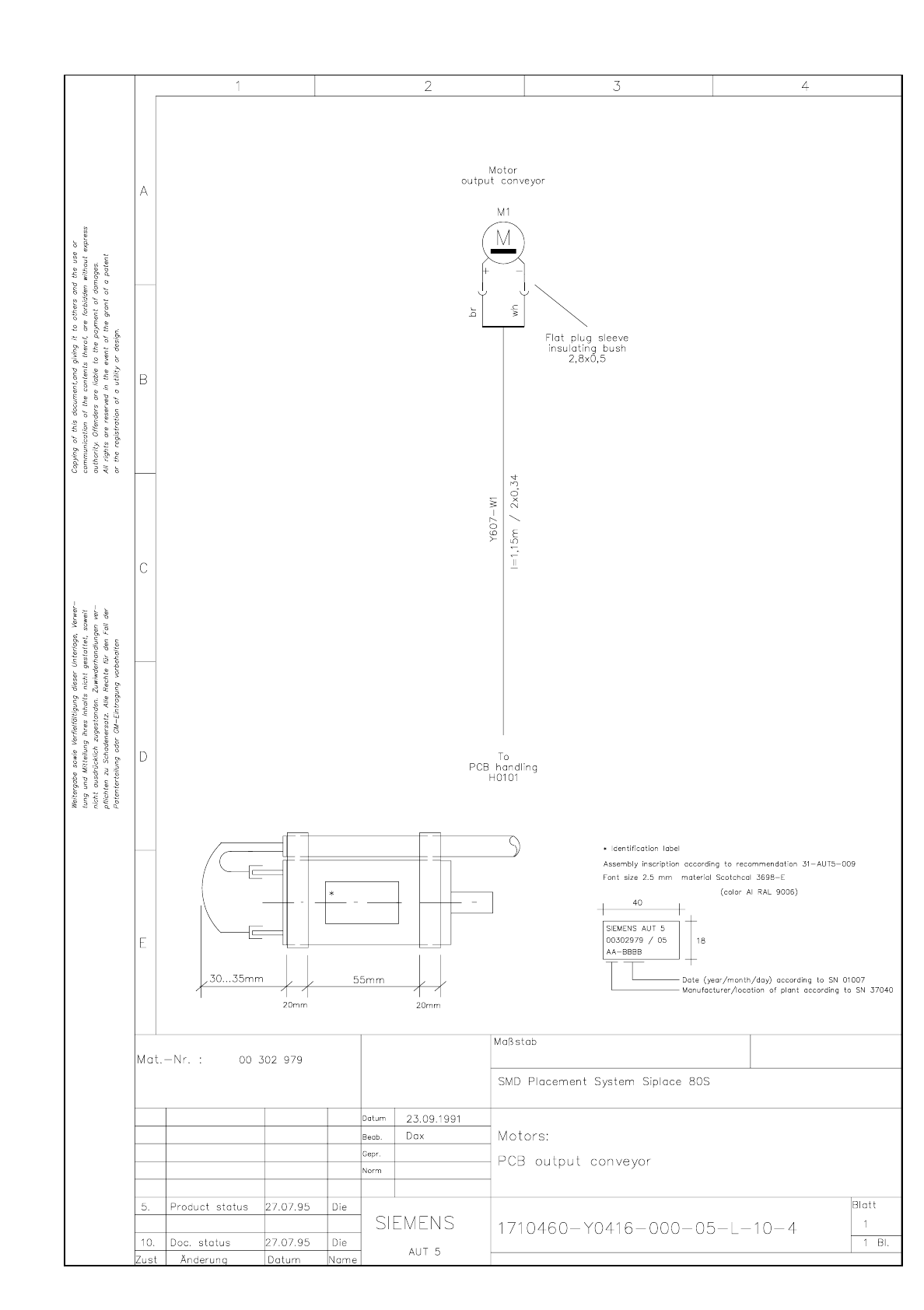

SIPLACE 80S-20 Motors PCB output conveyor 3.12 - 13
Motors PCB output conveyor
Y0416L10.dwg
1710460-Y0416-000-05-L-10-4 Motor PCB output conveyor
