Preventive Maintenance MTC 2 Maintenance 10/2010 US Edition 1 MTC 17 1 Y ou will require the following consumable s for the monthly maintenance work: 1 – Clean, lint-free cloths – WD40 (item no. 003258 33-01). 1 1 : S to…
Maintenance Preventive Maintenance MTC 2
1 MTC 10/2010 US Edition
16
1.7 Monthly maintenance work
1
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 1 MTC
17
1
You will require the following consumables for the monthly maintenance work: 1
– Clean, lint-free cloths
– WD40 (item no. 00325833-01).
1
1
: Stop the placement process of the placement machine.
: Move the MTC into transport position in the menu "Mechanical functions".
: Open the cover and the protective door of the placement machine.
1
1
Oiling of the linear guides of feed axis 1
a Remove the two service caps in the belt cover of the feed axis by loosing the knurled screws.
s Push away the belt of the feed axis and moisten in this area the upper and side parts / ball
bearings of the linear guides with WD40.
a Fix the two service caps again with the knurled screws.
1
Pay attention to the crash lightbarriers during this process. 1
1
1
1
: Close the cover and the protective door.
: Exit the "Mechanical functions".
: Press the Start button for the placement machine.
1
1
Maintenance Preventive Maintenance MTC 2
1 MTC 10/2010 US Edition
18
1.8 Bi-monthly maintenance work
1
1
2
2
6
7
3
1
4
5

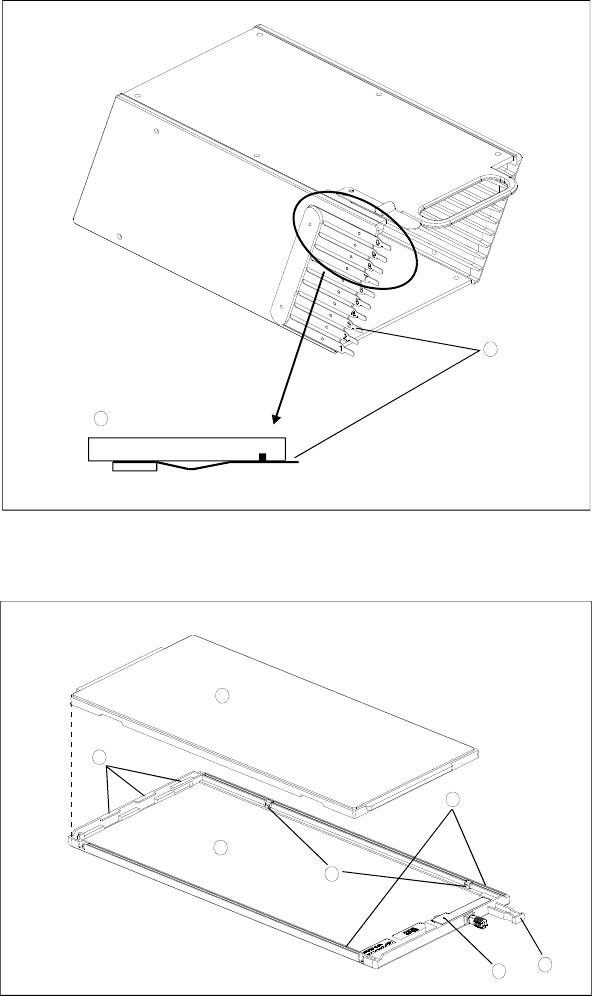

a Waffle pack tray
s Waffle pack tray carrier (WTC)
d Handle
f Handle sleeve
g Reinforcing strips
h Leaf springs
j Waffle pack tray interlock
a Interlock WTC (leaf springs)
s Top view to leaf springs
a
s
