Maintenance Preventive Maintenance MTC 2 2 MTC 2 10/2010 US Edition 42 2 – T o fill the rubber tank hose wit h grease, pump the le ver until grease appears at the end of the rubber t ank hose. The grease gun is now read …
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
41
2

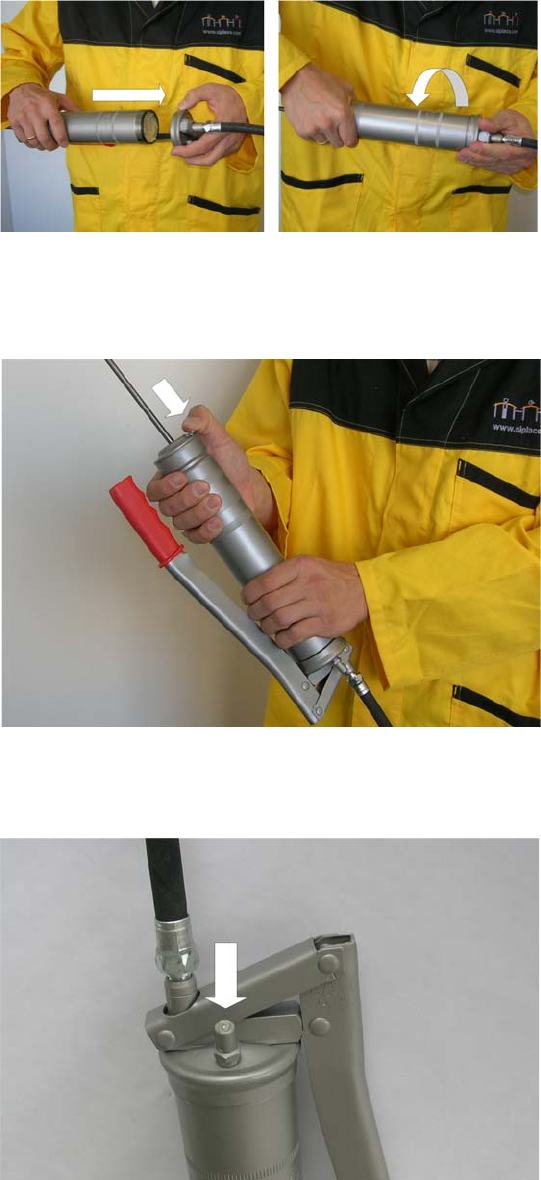

– Press the filling tube against the head of the grease gun.
– Turn the filling tube clockwise to screw it into the gun head, as far as the end stop.
2
– Press the locking lever to release the piston.
The piston will be automatically pressed against the grease by the spring in the filling tube.
2
– Press your finger against the ball valve, to vent the grease gun.
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
42
2

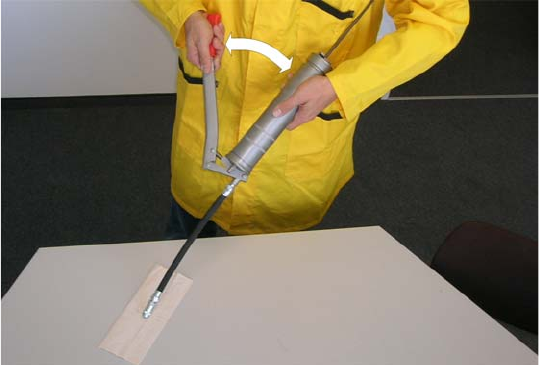

– To fill the rubber tank hose with grease, pump the lever until grease appears at the end of the
rubber tank hose.
The grease gun is now ready for use.
2
2
2
2
2
2
2
2
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
43
1.8.5 Greasing the lifting axis spindle and guidance
– Activate the placement machine and the MTC.
– Use the station software to move both towers into the uppermost position.
– Switch the MTC off at the main switch and unplug the MTC from the power supply. This dis-
connects the MTC reliably from the electricity.
– Dock out the MTC from the placement machine.
Attention: The tower is not in correct transport position. The MTC center of gravity is higher up
and there is a greater risk of it tipping over. 1
– Prepare the grease gun (see Section "Preparing the Grease Gun").
1

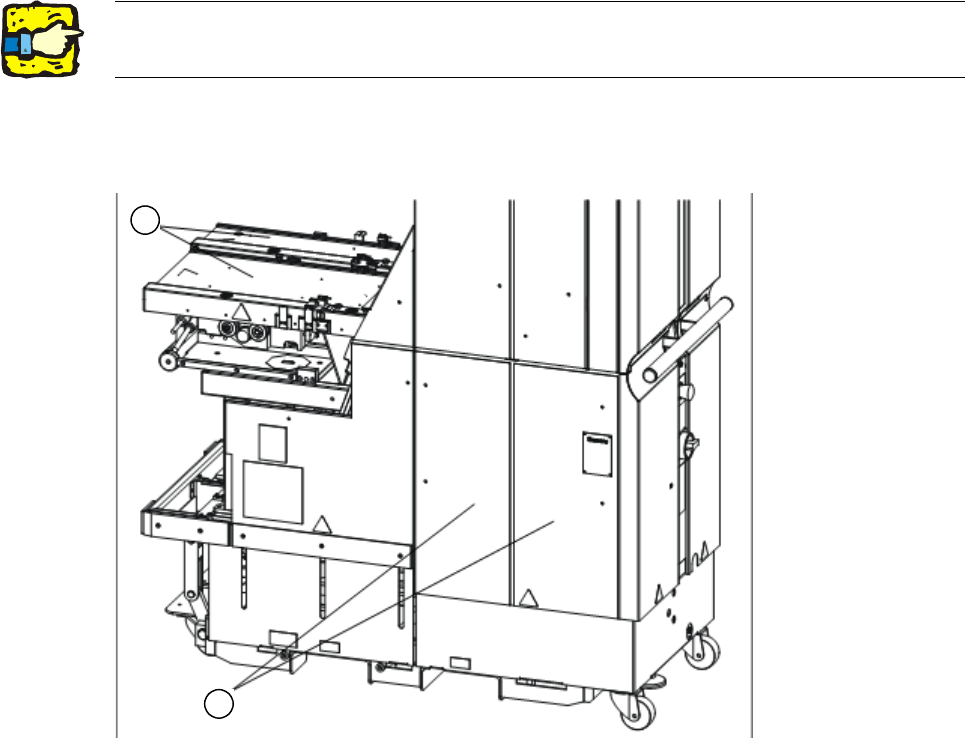

1. Remove the left and right hand side cover from the MTC.
2. Remove the cover plates on the feed axis 1 and 2.
You can now access the spindle nut and the linear guides.
1
1
1
2
