Maintenance Preventive Maintenance MTC 2 2 MTC 2 10/2010 US Edition 46 1.9 Bi-Annual Maintenance Work 1 The bi-annual maintena nce work is to be performed by instructed service stuf f. 1 1 1 : Change the battery of the c…
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
45
The towers are each guided with four linear guides, two in the upper area and two in the lower
area of the tower carrier.Each upper linear guides is equipped with one lubrication nipple at the
top. Each lower linear guides are equipped with one lubrication nipple at the bottom. Thus there
are 8 lubrication nipples. 1
1

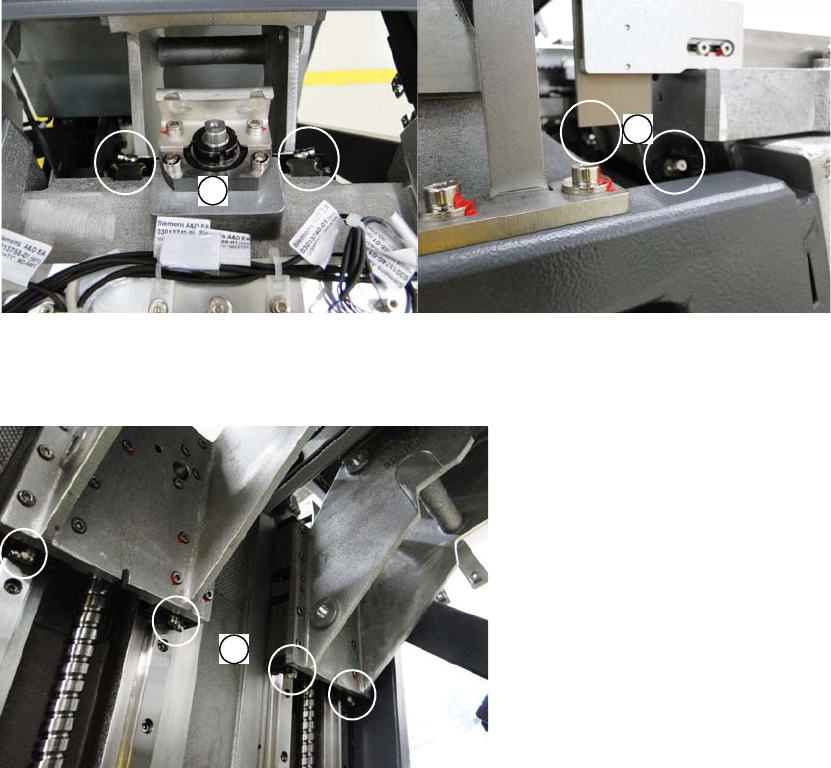

1. Upper lubrication nipples at the linear guides for tower 1 (left image)
and for tower 2 (right image)
1
1. Lower lubrication nipples at the linear guides on tower 1 and 2.
1
– Fit the universal grease gun mouthpiece onto the lubrication nipple of the spindle nut.
– Pump the grease gun twice.
– Use a dry cloth to remove any residual grease from on and around the lubrication nipples.
– Screw the covers and side plates on the MTC again.
– Dock on the MTC to the placement machine and start the operation of the MTC again.
1
1
1
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
46
1.9 Bi-Annual Maintenance Work
1
The bi-annual maintenance work is to be performed by instructed service stuff. 1
1
1
: Change the battery of the controller boards
1
1
