Maintenance Preventive Maintenance MTC 2 1 MTC 10/2010 US Edition 6 : During all maintenance work , comp ly with the safety and accident prevention regulations th at apply in your country . : Follow the safety instructio…
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 1 MTC
5
1MTC
1.1 Safety instructions
1

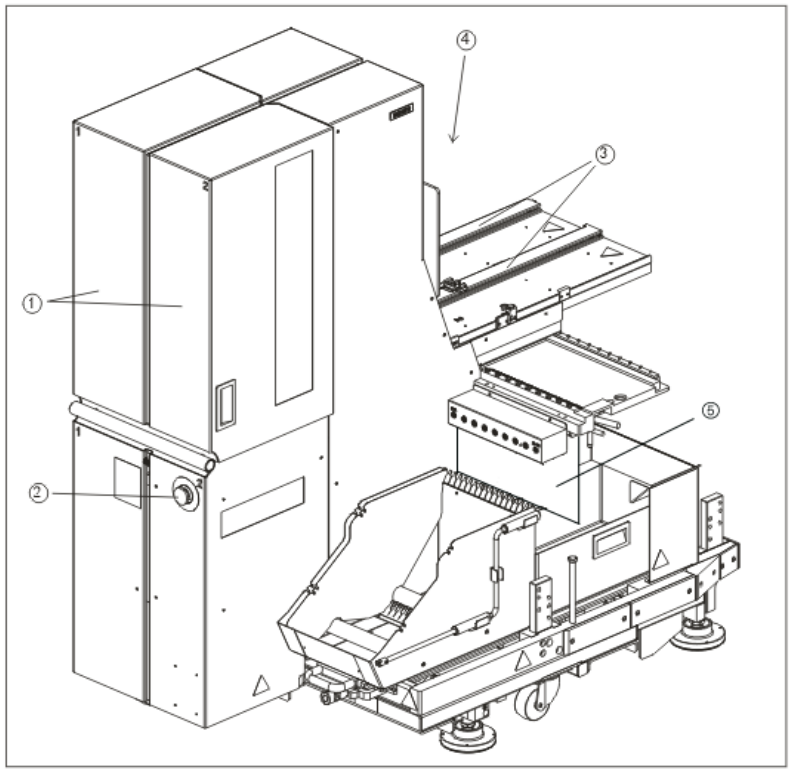

Fig. 1 - 1 Layout of the safety devices
a Protective doors
s EMERGENCY STOP
d Safety guard (to prevent operator from reaching into machine)
f Safety guard lifting axis (not to see, other side on the bottom)
g Safety guard empty tape cutter
1
Maintenance Preventive Maintenance MTC 2
1 MTC 10/2010 US Edition
6
: During all maintenance work, comply with the safety and accident prevention regulations that
apply in your country.
: Follow the safety instructions in the User Manual.
: In addition, follow the special safety instructions in this chapter.
RISK OF COMBUSTION 1
1
WARNING 1
1
WARNING
1
1
: Never carry out cleaning work using alcohol near a naked light or flame.
: Never spray lubricant or cleaning agent from aerosol cans near a naked light or flame.
: DO NOT SMOKE.
: Always wear safety goggles and gloves when cleaning modules with concentrated
ethyl alcohol.
: If you accidentally spray ethyl alcohol in your eyes, wash your eyes immediately with
lots of water.
: The operation of the MTC outside the SIPLACE Station is not allowed.
Ignoring this instruction can cause injury and/or damage.
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 1 MTC
7
1.1.1 Explanation of Symbols
1
1
Tools and expendable materials required 1
1
1
1
Note 1
1
1
1
Tip 1
1
1
1
Caution 1
1
1
1
1.1.2 Basic Rules during Maintenance Work
CAUTION
Never use compressed air to clean assemblies inside the machine. 1
Record the maintenance work performed in the maintenance schedule. We recommend that work
be performed in the order indicated in the maintenance schedule. 1
To save time while cleaning, perform the maintenance work on the SIPLACE at the same time as
the cleaning, complying with the safety instructions in the process. 1
