Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
38
2.8.4 Grease the linear guides / spindle nut of the lifting axis
Preparing the grease gun 2
2
Order number: 00384212-xx
The grease guns can be used with 400g cartridges or with 500g loose grease. They have stepless
piston fixation. Permanent spring-loading applies pressure to the grease cartridge, so that a con-
tinuous supply of grease is guaranteed to the gun head. The grease gun (1) is supplied with a rub-
ber tan hose (2) and a nozzle tube (3), each with a R1/8" connection thread. The nozzle tube (3)
is not required for WPC maintenance. 2
2
Order number: 03038300-xx Grease INTERFLON FIN GREASE MP 2/3
High-strength Teflon grease with good lubricity and stability, specially designed for permanent lu-
brication of heavy duty parts
– Resistant to water, dust and contaminants
– Excellent film strength on metal
– Very good temperature resistance
– Very good water resistance
– Ideal for heavy duty and high vibration environments
– Teflon extends lubricity lifetime significantly
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
39
Procedure 2
2
– Screw the rubber tank hose provided onto the threaded connector at the head of the grease
gun.
– Tighten the nut on the rubber tank hose with a 17 mm open-ended wrench.
2
– Turn the filling tube anticlockwise to unscrew it from the gun head.
2
2
2
2
2
2
2
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
40
2

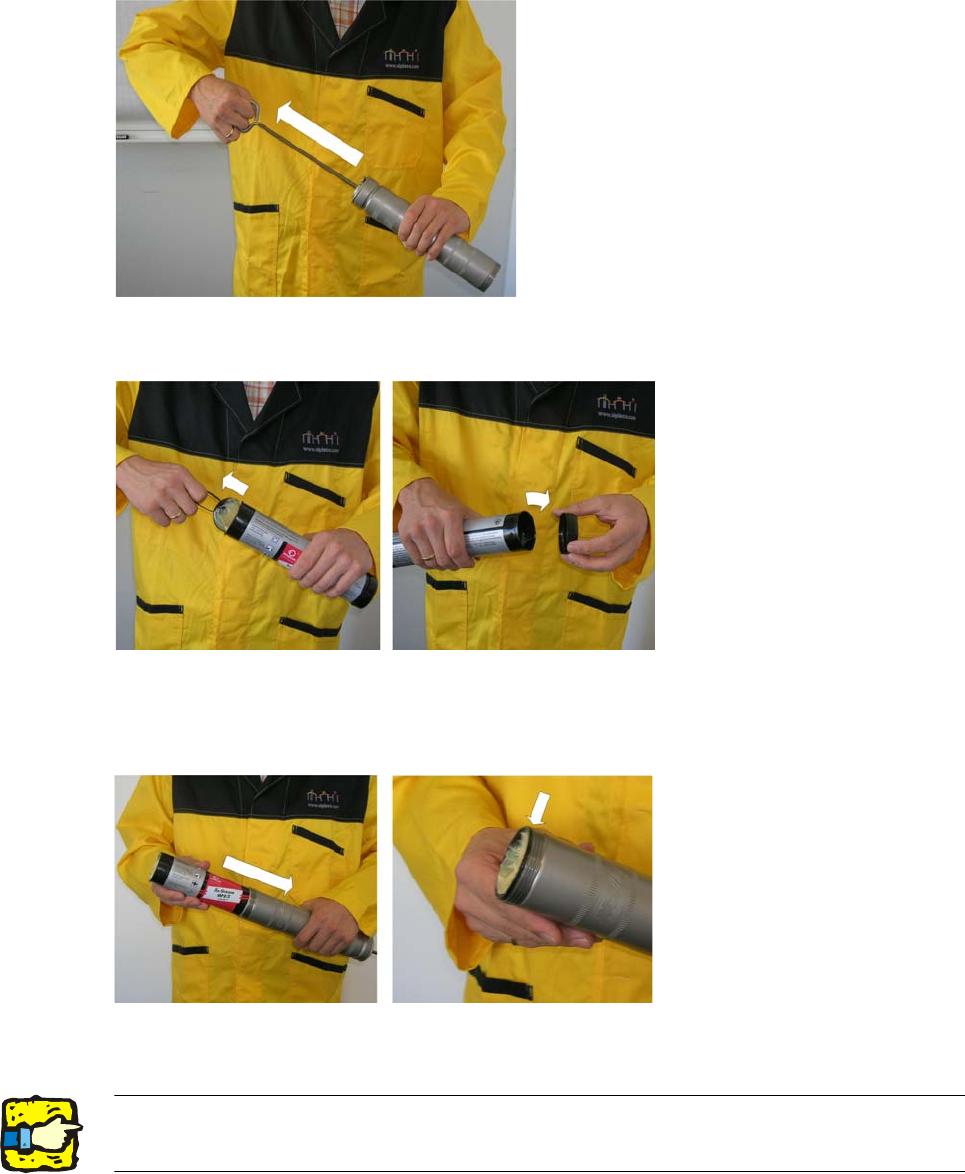

– Pull the piston as far as possible (end stop) out of the filling tube.
2
– Open one end of the cartridge, by pulling on the plastic ring to remove the base.
– Open the other end of the cartridge, by pulling off the lid.
2
– Push the open cartridge (open at both ends) as far as possible into the filling tube.
NOTE: The cartridge will only fit into the filling tube if you insert the end with NO rim. This cartridge
rim must be aligned with the edge of the filling tube (see arrow on the diagram above). 2
