Maintenance Preventive Maintenance MTC 2 2 MTC 2 10/2010 US Edition 36 2.8 Annual maintenance work 2 1 2
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
35
2
You will need no tools or consumables for the bi-monthly maintenance work: 2
2
2
: Stop the placement process of the placement machine.
: Move both towers in the refill position cassette 1 using the MTC menu.
: Open the protective cover.of the placement machine.
2
2
Check the cassettes 2
a Check each cassette to see if the leaf springs of the WTC interlock are against the side wall of
the cassette.
If they are not, either the WTC is not properly engaged or the leaf springs are faulty.
2
Use of cassettes with faulty leaf springs is prohibited. Faulty leaf springs must be exchanged. 2
2
2
Check the WTCs 2
s Check the WTCs for breaking (broken handles and handle sleeves, too), for loose or protruding
reinforcing strips and leaf springs and for a defect waffle pack tray interlock (see illustration).
2
2
Defect WTC are not to be used and must be replaced. Don’t use WTCs which are obvious tighter
to push into the cassette or which are not to insert correctly into the waffle pack tray (defect be-
cause of warp). 2
2
2
: Close the protective cover.
: Exit the refilling position.
: Press the Start button.
2
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
36
2.8 Annual maintenance work
2
1
2
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
37
You will need the following consumables for the annual maintenance work: 2
–WD40
– Grease gun
– Grease INTERFLON FIN GREASE MP 2/3
:
: Stop the placement process of the placement machine.
: Move both towers into the transport position using the MTC menu.
: Move the feed axes into service position.
: Open the protective cover.of the placement machine.
2
2.8.1 Oiling the drivers

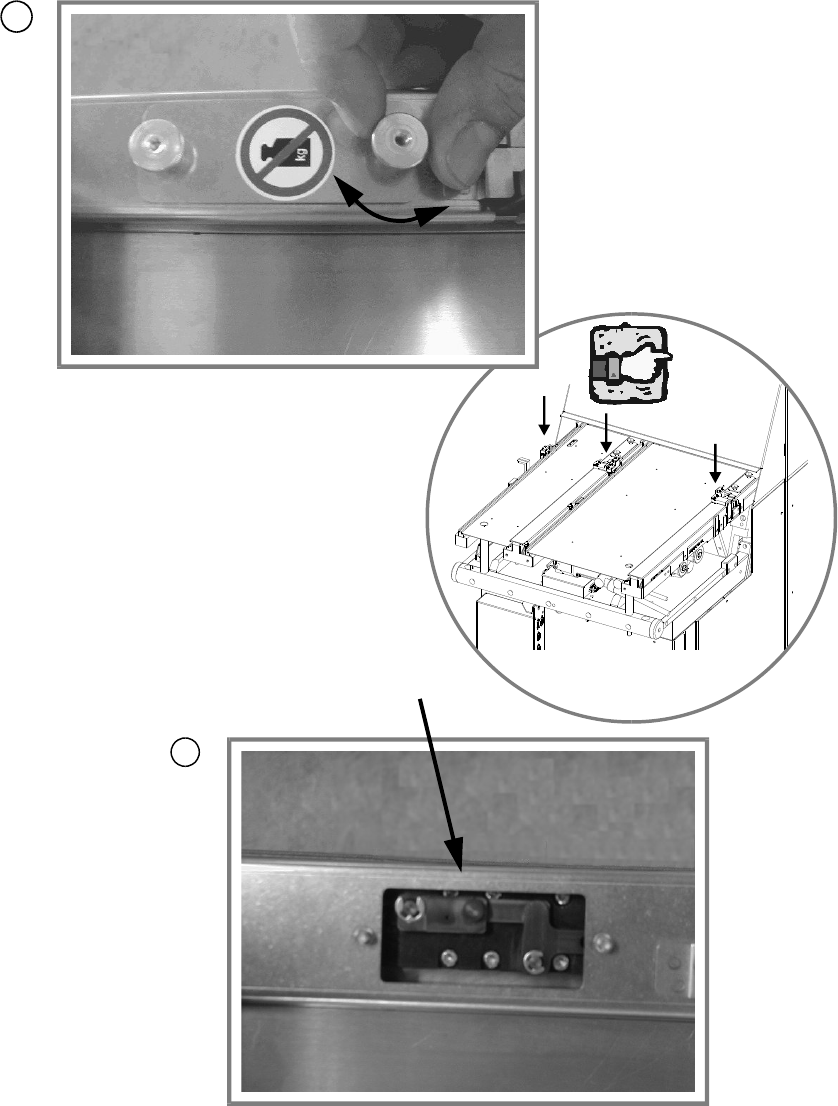

a Remove the two service caps in the belt covers of the feed axes by opening the knurled head
screws.
s Moisten the drivers mechanism with WD40.
a Fasten the two service caps with the knurled head screws.
2
2
Pay attention to the crash light barriers in the process (see illustration on the left). 2
2
2
: Close the protective cover.
: Exit the service position.
: Press the Start button.
2
2
2
This annual maintenance work is to be performed by instructed service stuff: 2
2
2.8.2 Inspection of the modules
2.8.3 Inspection of the toothed belt
