You will need the following consumables for the weekly maintenance: 2
– Lint-free cloths
– Ethyl alcohol
2
2
: Stop the placement process of the placement machine.
: Move both towers in the refill position cassette 1 using the MTC menu.
: Open the protective cover.of the placement machine.
2
2
Cleaning the rails of the feed axis 2
a Clean the WTC contact surfaces on the rails of the feed axis with a lint-free cloth moistened
with ethyl alcohol.
2
2
Pay attention to the crash light barriers in the process (see illustration on the left). 2
2
2
Cleaning of cassette guide rails 2
s Clean the cassette guide rails (in the control panel behind the safety doors of the MTC) with a
lint-free cloth moistened with ethyl alcohol.
2
2
: Close the protective cover.
: Exit the refilling position.
: Press the Start button.
2
2
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
34
2.7 Bi-monthly maintenance work
2
2
1
1
5
5
3
4
2
4
2
1
1

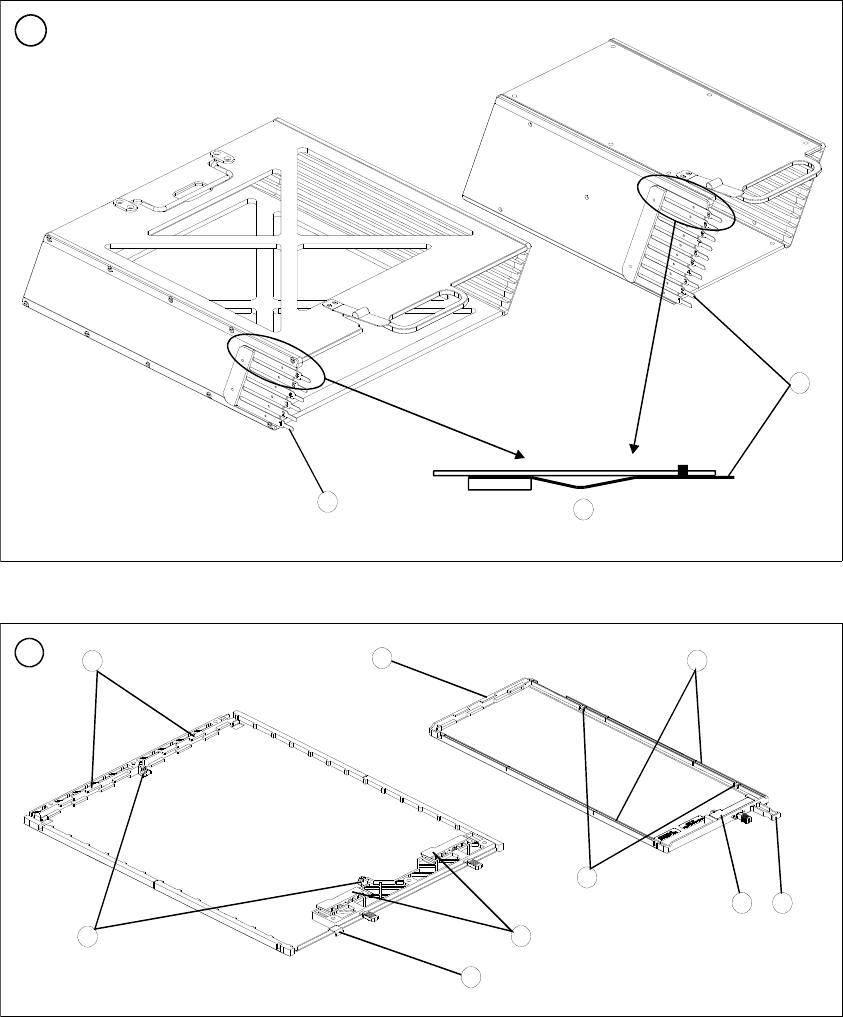

f Leaf springs
g Interlock WT
a Interlock WTC s Top view to leaf springs
a Handle
s Handle sleeve
d Reinforcing strips
1
2
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
35
2
You will need no tools or consumables for the bi-monthly maintenance work: 2
2
2
: Stop the placement process of the placement machine.
: Move both towers in the refill position cassette 1 using the MTC menu.
: Open the protective cover.of the placement machine.
2
2
Check the cassettes 2
a Check each cassette to see if the leaf springs of the WTC interlock are against the side wall of
the cassette.
If they are not, either the WTC is not properly engaged or the leaf springs are faulty.
2
Use of cassettes with faulty leaf springs is prohibited. Faulty leaf springs must be exchanged. 2
2
2
Check the WTCs 2
s Check the WTCs for breaking (broken handles and handle sleeves, too), for loose or protruding
reinforcing strips and leaf springs and for a defect waffle pack tray interlock (see illustration).
2
2
Defect WTC are not to be used and must be replaced. Don’t use WTCs which are obvious tighter
to push into the cassette or which are not to insert correctly into the waffle pack tray (defect be-
cause of warp). 2
2
2
: Close the protective cover.
: Exit the refilling position.
: Press the Start button.
