Preventive Maintenance MTC 2 Maintenance 10/2010 US Edition 1 MTC 19 1 Y ou will need the following tools, equipment, consumables and sp are parts for the bi-monthly maintenance work: 1 – V acuum cleaner – Oil stone – Sc…

100%1 / 48
Maintenance Preventive Maintenance MTC 2
1 MTC 10/2010 US Edition
18
1.8 Bi-monthly maintenance work
1
1
2
2
6
7
3
1
4
5
a Waffle pack tray
s Waffle pack tray carrier (WTC)
d Handle
f Handle sleeve
g Reinforcing strips
h Leaf springs
j Waffle pack tray interlock
a Interlock WTC (leaf springs)
s Top view to leaf springs
a
s
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 1 MTC
19
1

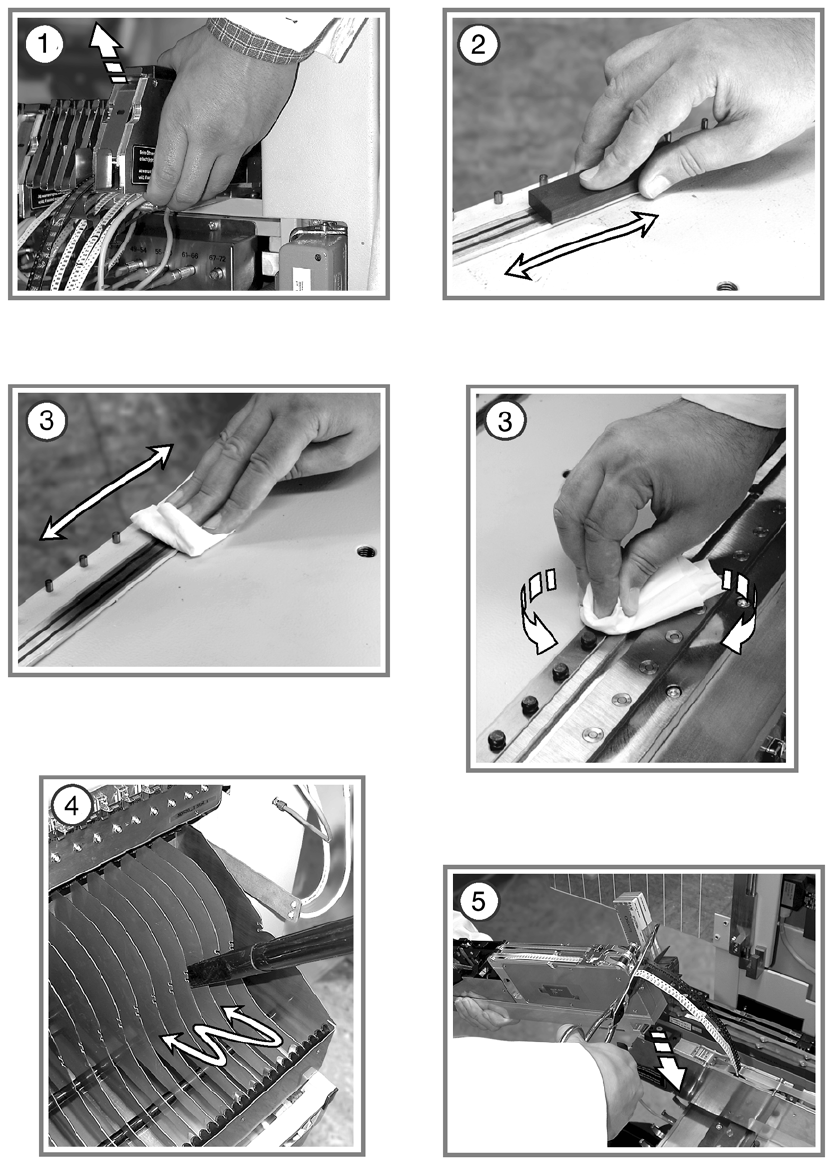

You will need the following tools, equipment, consumables and spare parts for the bi-monthly
maintenance work: 1
– Vacuum cleaner
– Oil stone
– Scissors
– Ethyl alcohol
– WD40, 400 ml (item no. 00325833-01)
– Interlock WTC (item no. 00359419-xx), if necessary.
1
1
: Stop the placement process of the placement machine.
: Move the MTC into the refill position 1 (basic position of the MTC).
: Open the cover and the protective door of the placement machine.
1
Checking the leaf springs of the WTC interlock 1
a Check each cassette to see if the leaf springs of the WTC interlock are against the side wall of
the cassette.
If they are not, either the WTC is not properly engaged or the leaf springs are faulty.
1
Use of cassettes with faulty leaf springs is prohibited. Faulty leaf springs must be exchanged (In-
terlock WTC (item no. 00359419-xx). 1
1
Checking the WTCs 1
s Check the WTCs for breaking (broken handles and handle sleeves, too), for loose or protru-
ding reinforcing strips and leaf springs and for a defect waffle pack tray interlock (see illustra-
tion).
1
1
Defect WTC are not to be used and must be replaced. Dont’t use WTCs which are obvious tighter
to push into the cassette or which are not to insert correctly into the waffle pack tray (defect
because of warp). 1
1
: Exit the refill position.
: Press the Start button.
