Maintenance Preventive Maintenance MTC 2 2 MTC 2 10/2010 US Edition 38 2.8.4 Grease the linear guides / spindle nut of the lif ting axis Prep aring the grease gun 2 2 Order number: 0038 4212-xx The grease gu ns can be us…
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
37
You will need the following consumables for the annual maintenance work: 2
–WD40
– Grease gun
– Grease INTERFLON FIN GREASE MP 2/3
:
: Stop the placement process of the placement machine.
: Move both towers into the transport position using the MTC menu.
: Move the feed axes into service position.
: Open the protective cover.of the placement machine.
2
2.8.1 Oiling the drivers
a Remove the two service caps in the belt covers of the feed axes by opening the knurled head
screws.
s Moisten the drivers mechanism with WD40.
a Fasten the two service caps with the knurled head screws.
2
2
Pay attention to the crash light barriers in the process (see illustration on the left). 2
2
2
: Close the protective cover.
: Exit the service position.
: Press the Start button.
2
2
2
This annual maintenance work is to be performed by instructed service stuff: 2
2
2.8.2 Inspection of the modules
2.8.3 Inspection of the toothed belt
2
Maintenance Preventive Maintenance MTC 2
2 MTC 2 10/2010 US Edition
38
2.8.4 Grease the linear guides / spindle nut of the lifting axis
Preparing the grease gun 2
2
Order number: 00384212-xx
The grease guns can be used with 400g cartridges or with 500g loose grease. They have stepless
piston fixation. Permanent spring-loading applies pressure to the grease cartridge, so that a con-
tinuous supply of grease is guaranteed to the gun head. The grease gun (1) is supplied with a rub-
ber tan hose (2) and a nozzle tube (3), each with a R1/8" connection thread. The nozzle tube (3)
is not required for WPC maintenance. 2
2
Order number: 03038300-xx Grease INTERFLON FIN GREASE MP 2/3
High-strength Teflon grease with good lubricity and stability, specially designed for permanent lu-
brication of heavy duty parts
– Resistant to water, dust and contaminants
– Excellent film strength on metal
– Very good temperature resistance
– Very good water resistance
– Ideal for heavy duty and high vibration environments
– Teflon extends lubricity lifetime significantly
Preventive Maintenance MTC 2 Maintenance
10/2010 US Edition 2 MTC 2
39
Procedure 2
2

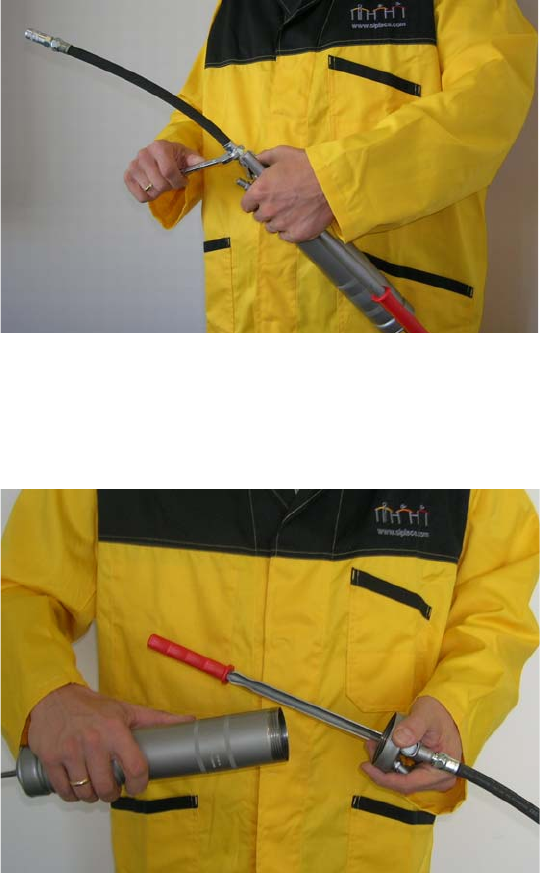

– Screw the rubber tank hose provided onto the threaded connector at the head of the grease
gun.
– Tighten the nut on the rubber tank hose with a 17 mm open-ended wrench.
2
– Turn the filling tube anticlockwise to unscrew it from the gun head.
2
2
2
2
2
2
2
