FX-3R Maintenance Guide
12-30
12-2-4-5. Changing the OS Language (Perform this operation only when the language
needs to be changed.)
When changing the OS language, the data is written into the C-drive. Therefore, update the C-drive
before changing the language.
(The OS language change operation automatically shut down the OS. Therefore, update the C-drive
first.)
1) Click the [Start] button of Windows and run Command Prompt from Programs in the Start
menu.

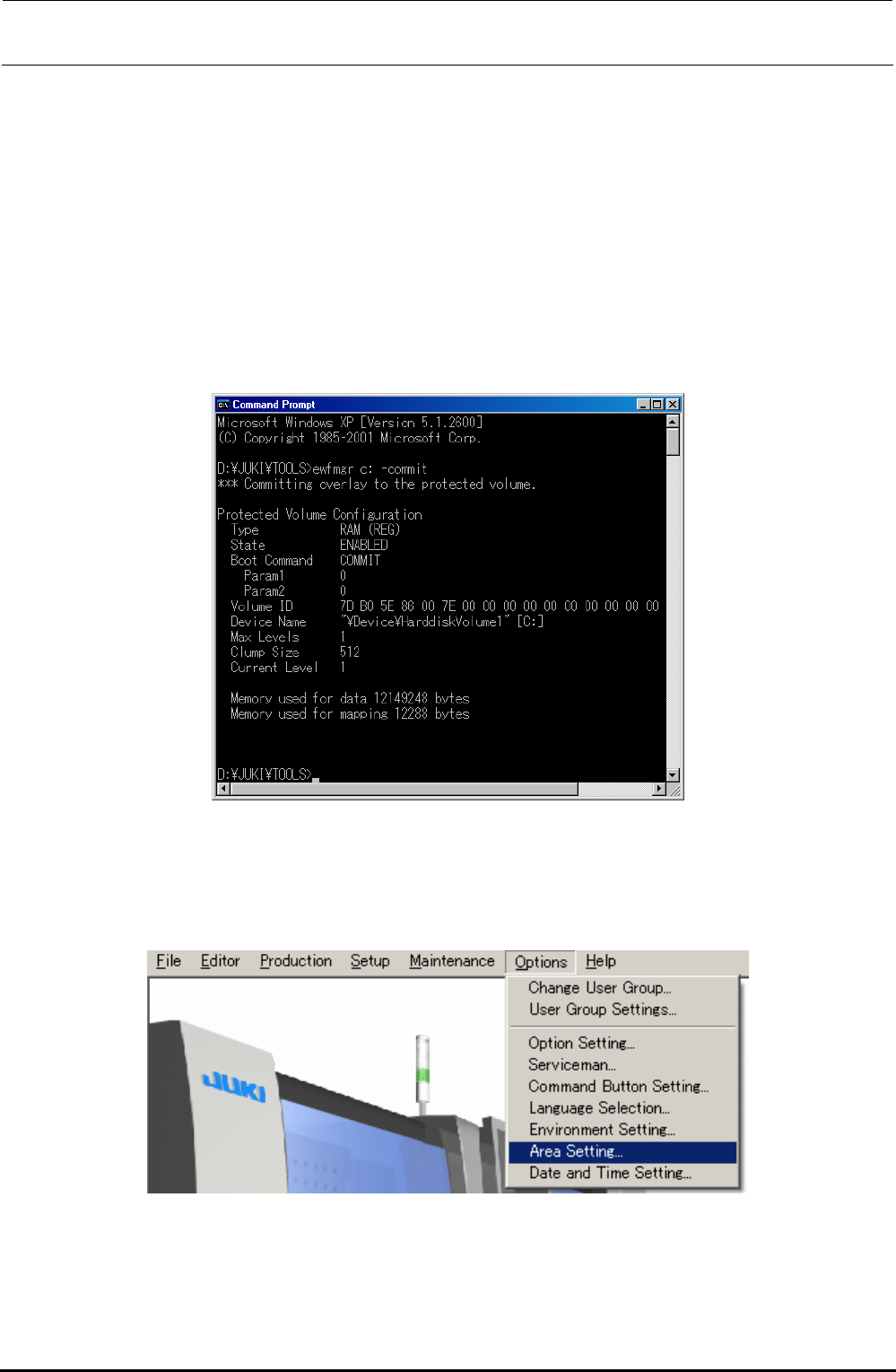

2) In the Console window (DOS screen), type “ewfmgr.exe c: -commit”. The following screen will
appear.
∗ CAUTION
If the C-drive is not updated at this time, the operation status is returned to the previous status
when restarting the system even though the OS language is changed.
3) In the status that the system is started up, select [Area Setting…] from the [Options] menu.
Rev. 1.00
FX-3R Maintenance Guide
12-31

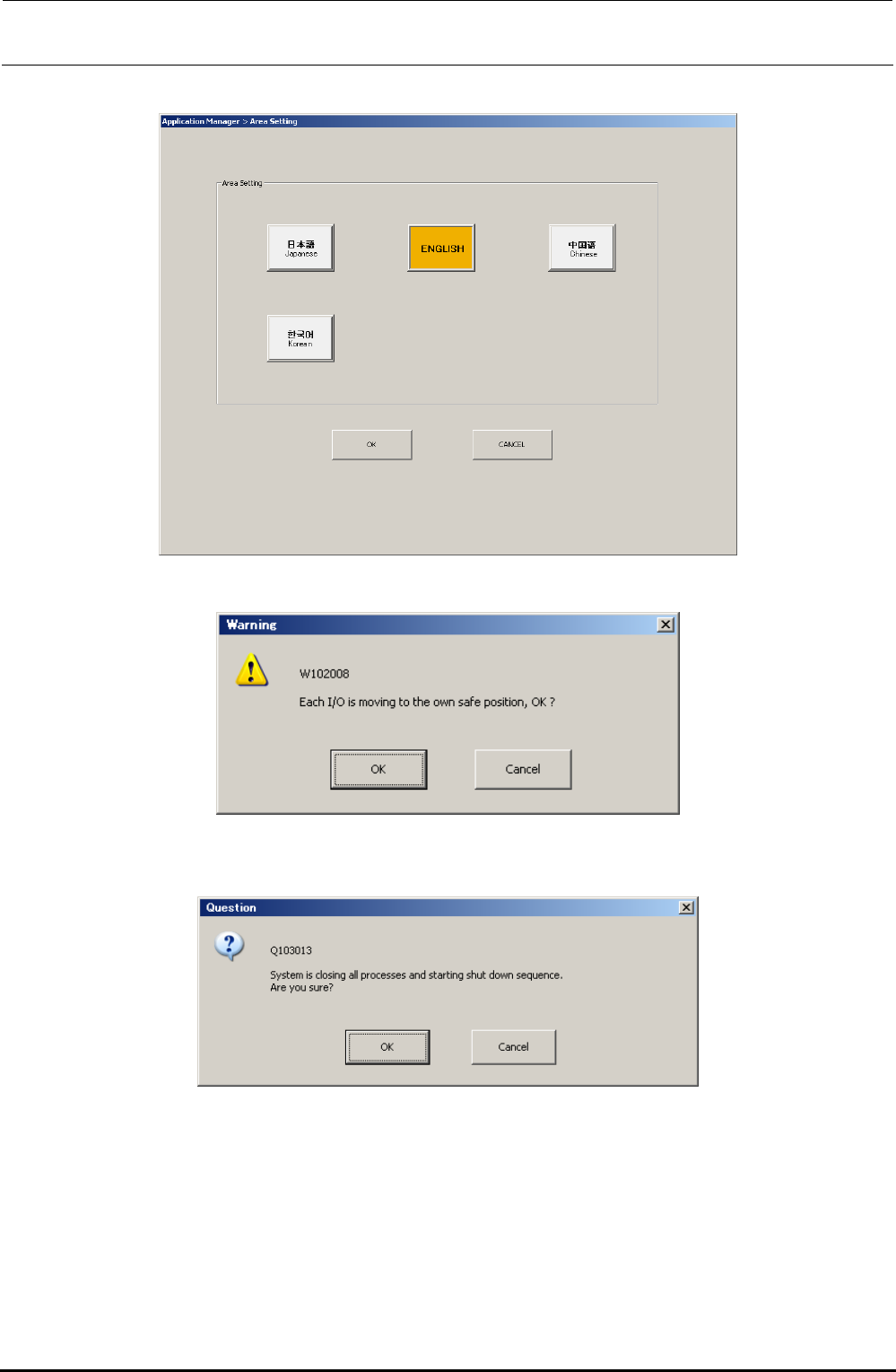

4) Select a desired language you want to change and click the [OK] button.
5) The “Safe Position” setup dialog box will appear. Click the [OK] button.
6) The “System” message dialog box will appear. Click the [OK] button.
(When performing this operation, the OS is then shut down automatically.)
Subsequently, the OS is run with the language you have specified.
Rev. 1.00
FX-3R Maintenance Guide
12-32
12-2-5. Upgrading the FX-3R System Version
The following describes the upgrading steps to install the FX-3R system with a new version onto the
FX-3R system with any existing version.
1) Prepare the USB memory or other media containing the system program installation files.
2) Click the [Start] button of Windows and run Explorer from Programs in the Start menu.
3) Select “Setup.exe” from the system program installation disk prepared in step 1).
In the Explorer window, double-click “Setup.exe” you have selected to start the installation.
4) When running “Setup.Exe”, the “Preparing to Install…” screen will appear.
This screen will disappear quickly and the operation automatically moves to step 5).
∗ CAUTION All menus and commends on the Installation screen are shown in English
regardless of the language specification of the OS.
