FX-3R Maintenance Guide 4-8 4-7. Replacing the Solder Recognition Light Board <Procedure> 1) Remove the brazier head screws to detach the PRISM BASE, OCC angle light board, and board spacers. 2) Reassemble the comp…
FX-3R Maintenance Guide
4-7

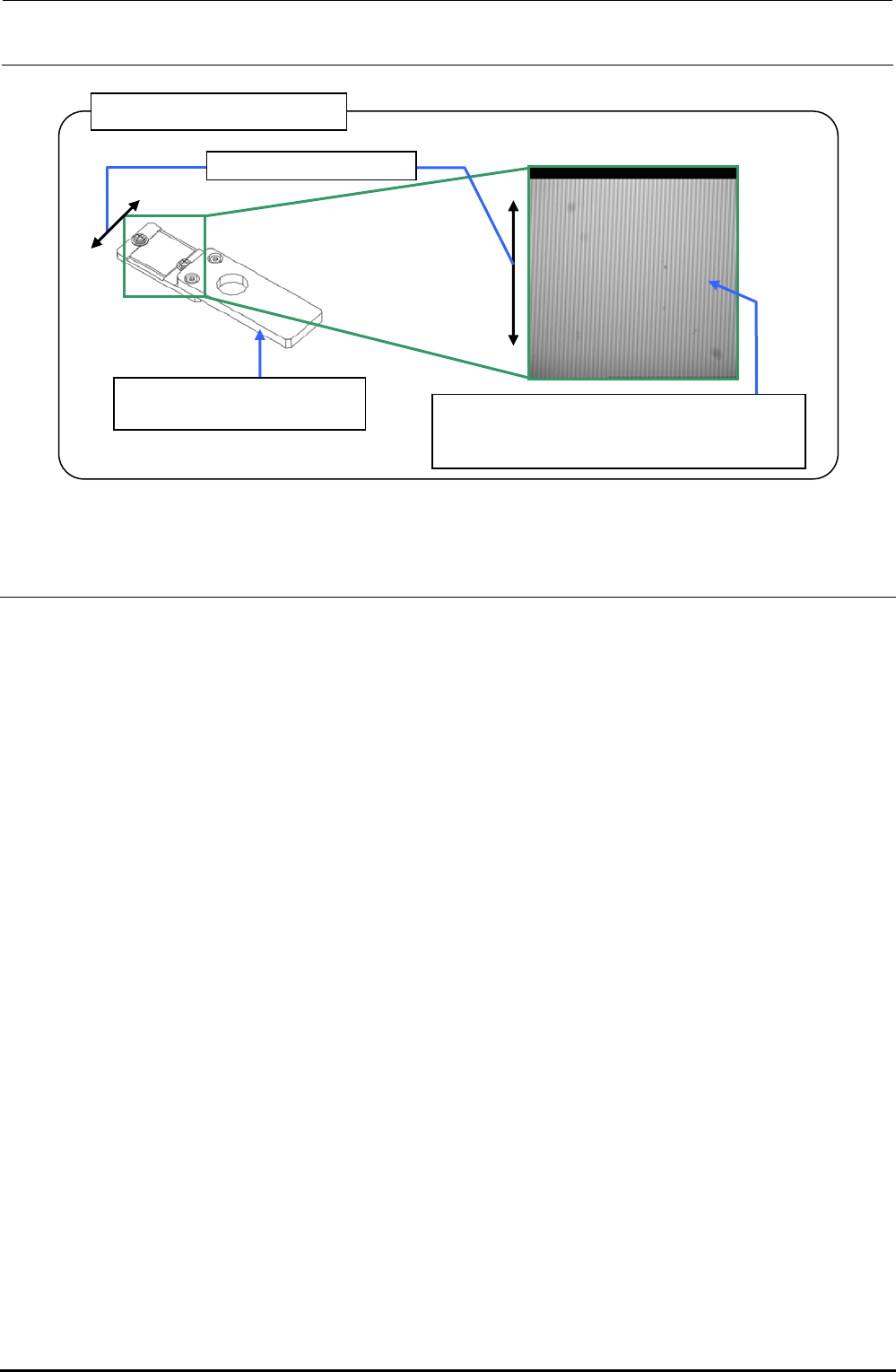

OCC focus adjustment jig
40069017
OCC focus adjustment jig
Set the light value to a level, at which the
vertical lines of the focus adjustment jig can
be seen, to adjust the light quantity.
Line drawing direction
Figure 4-5-5 OCC Focus Adjustment Jig
4-6. Adjusting the OCC Light Quantity
<Procedure>
1) Check that the OCC light goes on with manual control.
2) Carry out "Adjustment of OCC Light" in the MS parameters. (See the section related to OCC
light quantity adjustment in the specifications for the MS parameter operation.)
Rev. 1.00
FX-3R Maintenance Guide
4-8
4-7. Replacing the Solder Recognition Light Board
<Procedure>
1) Remove the brazier head screws to detach the PRISM BASE, OCC angle light board, and
board spacers.
2) Reassemble the components in the reverse order of disassembly.
3) After the solder recognition light has been replaced, adjust the OCC light. (See 4-8, List of
Readjustment Items after Replacement.)
HX00335000G
基板スペーサ ：4個
角度照明ユニット
HX00354000D
基板スタッド ：4個
40032433
低頭ねじ M3×10 ：4個
40014043
PRISM BASE
40047508
OCC A LIGHT PCB ASM
取付け向きに注意
(LED面下向き)
Angle light unit
Board stud: 4 pcs.
Board spacer: 4 pcs.
Carefully check the
mounting orientation.
(LED surface faces
downward.)
Brazier head screw
M3 × 10: 4 pcs.
Rev. 1.00
FX-3R Maintenance Guide
4-9
4-8. Readjustment After Replacement of OCC Unit
{: Mandatory U: Check −: Unnecessary
∗: Optional
Table 4-8-1 List of Readjustment Items after Replacement
OCC lens
assembly
OCC light
assembly
Light board
assembly
Lens filter
OCC focus adjustment {
― ― ―
Filter adjustment U {
―
{
Adjustment of OCC light quantity U { { {
Common mark adjustment {
― ― ―
X-beam parallelism check {
― ― ―
OCC offset {
― ― ―
CAL block offset {
― ― ―
CAL piece holder offset {
― ― ―
Head offset {
― ― ―
HMS offset {
― ― ―
BMR offset
∗
{
― ― ―
ATC offset U
― ― ―
AWC offset U
― ― ―
Pick-Up reference position offset U
― ― ―
CVS offset
∗
U
― ― ―
SOT inspect unit
∗
U
― ― ―
Vacuum offset U
― ― ―
General mounting offset {
― ― ―
Input the MS parameters from the top in order.
CAUTION
To prevent any personal injury, do not put your hand inside the
machine or your face or head close to the machine during operation
of the touch panel and/or HOD.
