User Manual SIPLAC E HF Series 4 Setting up and commissioning Software Version SR.505.xx 05/2004 US Edition 4.2 Dimensions of the placement systems 147 4.2.2.2 Dual conveyor 4 Fig. 4.2 - 6 Distance between the right-hand…

100%1 / 358
4 Setting up and commissioning User Manual SIPLACE HF Series
4.2 Dimensions of the placement systems Software Version SR.505.xx 05/2004 US Edition
146
4.2.2 Distance between right-hand side of PCB conveyor and the machine center
4.2.2.1 Single conveyor
4
Fig. 4.2 - 5 Distance between the right-hand side of the PCB conveyor and the machine center in millimeters
(single conveyor)
4
M Machine center
T Direction of PCB transport
User Manual SIPLACE HF Series 4 Setting up and commissioning
Software Version SR.505.xx 05/2004 US Edition 4.2 Dimensions of the placement systems
147
4.2.2.2 Dual conveyor
4

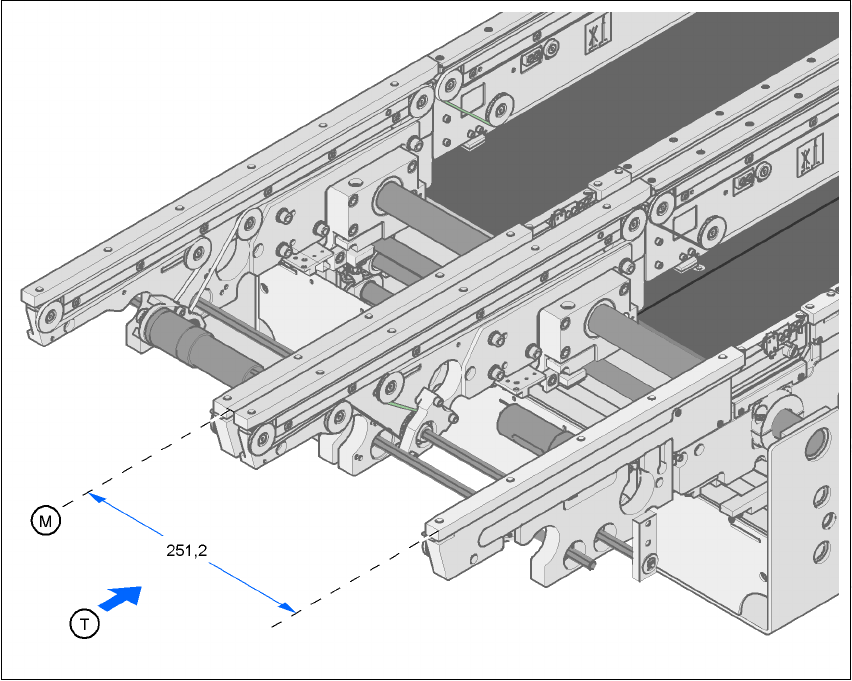

Fig. 4.2 - 6 Distance between the right-hand side of the PCB conveyor and the machine center in millimeters
(dual conveyor)
4
M Machine center
T Direction of PCB transport
4 Setting up and commissioning User Manual SIPLACE HF Series
4.3 Delivery configuration and transport Software Version SR.505.xx 05/2004 US Edition
148
4.3 Delivery configuration and transport
4.3.1 Transport packaging
The placement machine is supplied in a wooden crate mounted on a stable wooden pallet.
4.3.1.1 Dimensions of the transport packaging
The dimension of the wooden transport crate are as follows:
Length 2404 mm
Width 2790 mm
Height 1600 mm 4
4
Fig. 4.3 - 1 Transport crate - dimension in millimeters
(A) Fork-lift attachment points
4.3.1.2 Weight of the placement machine prepared for dispatch
The weight of the placement machine prepared for dispatch, including packaging, is 4287 kg for
the HF machine and 4337 kg for the HF/3 machine.
4.3.2 Configuration when delivered
The placement machine is configured as follows when delivered:
– The extension kit on the PCB input side (point 1 in Fig. 4.2 - 3
) is removed from the basic ma-
chine.
– All electrical cables to the basic machine are disconnected.
– Each track on the single or dual conveyor is set to a width of 136 mm. This width setting will
