User Manual SIPLAC E HF Series 2 Operational safety Software Vers ion SR.505.xx 05/2004 US Edition 2.6 Safety equipment 59 2.6.2.2 Position of prot ective switches on the placement machine 2 Fig. 2.6 - 5 Position of prot…
2 Operational safety User Manual SIPLACE HF Series
2.6 Safety equipment Software Version SR.505.xx 05/2004 US Edition
58
2

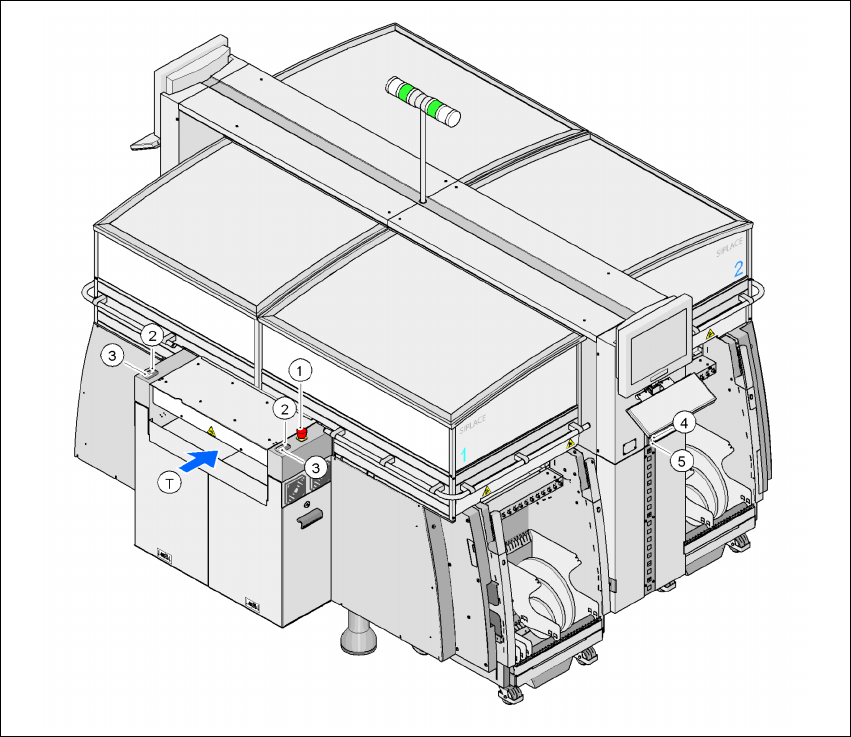

Fig. 2.6 - 4 Position of switches and buttons - View of the PCB input side
2
(1) Emergency stop button on the input side
(2) Start button (white) on the input side
(3) Stop button (white) on the input side
(4) Start button (white) on the operator panel on the compressed air unit side
(5) Stop button (black) on the operator panel on the compressed air unit side
(T)PCB transport direction
User Manual SIPLACE HF Series 2 Operational safety
Software Version SR.505.xx 05/2004 US Edition 2.6 Safety equipment
59
2.6.2.2 Position of protective switches on the placement machine
2
Fig. 2.6 - 5 Position of protective switches on the placement machine
2
(1)Protective cover switch, location 1
(2)Protective cover switch, location 2
(3)Protective cover switch, location 3
(4)Protective cover switch, location 4
(5)Protective switch for the cover on the input side of the PCB conveyor
(6)Protective switch for the cover on the output side of the PCB conveyor
(T)PCB transport direction
2 Operational safety User Manual SIPLACE HF Series
2.6 Safety equipment Software Version SR.505.xx 05/2004 US Edition
60
2.6.2.3 Description of the functions
Main power switch in the OFF position (see item 1 in Fig. 2.6 - 3
) 2
The main power switch disconnects the three phases L1, L2, and L3 from the power supply.
WARNING
The following components still carry potentially lethal voltages even if the main power switch is
switched off:
– Cable connection terminals L1, L2, and L3 of the Q1 main power switch
– Mains filter Z1
– Service socket X102
– F1 automatic circuit breaker for the service socket
– The color of all individual wires, which still carry potentially lethal voltages even if the main
power switch is switched off, is brown.
Æ Death, serious injury or considerable damage may result if these automatic placement sys-
tems are handled incorrectly.
Æ Always follow the applicable accident prevention and DIN regulations (particularly DIN EN 60
204, part 1) and the applicable regulations in your own country.
Æ The safety door to the power supply must ONLY be opened by appropriately qualified and
trained personnel.
Main power switch in the ON position 2
After switching on the main power switch, the station computer and the machine controller will
start. All supply voltages, apart from the link voltages for the gantry axes (250 VDC) and the star
axes (145 VDC) are then available.
Stop button, black (items 2 and 7 in Fig. 2.6 - 3 and items 3 and 5 in Fig. 2.6 - 4) 2
These buttons are used to stop the placement system.
Start button, white (items 3 and 6 in Fig. 2.6 - 3 and items 2 and 4 in Fig. 2.6 - 4) 2
After switching on the main power switch you will be prompted to press the Start button in order
to start the placement system for placement jobs. The same prompt appears if you open the pro-
tective covers or the press the emergency stop button.
