BOND_PICK OPTICS TABLE ASSY-LINEAR MOTOR
01-57586
CS-01- 57586
11
FROM: 01-57586_J_2009.09.19
J1
J
ITEM PART NO. DESCRIPTION QTY.
1 01-57457 BOY MAGNET ASSY 1
2 02-61994 BOY-COIL CABLE ASSY 1
3 02-62762 BOY LINEAR ENC ASSY 1
4 24-00520 LM GUIDE 2SRS12MSSC1+220LPM-II 1
5 26-52221 CONNECTOR MOUNT 2
6 26-E66003 Y STOPPER 1
7 26-E80683 OPTICS Y-TABLE BASE 1
8 26-E80684 BOND OPTICS Y MOVING TABLE 1
9 26-E80685 LINEAR MOTOR COVER 1
10 26-E86043 LINEAR ENCODER MOUNT (PITCH DIR. TURNER) 1
11 26-E86044 LINEAR ENCODER MOUNT (YAW DIR. TURNER) 1
12 26-E98488 E CHAIN MOUNT 1
13 26-F21417 E CHAIN MOUNT (MOVING) 1
14 53-00292 90 DEGREE REFERENCE MARK A-9541-0037 1
15 53-70023 RGS-S SCALE (SELF-ADHESIVE) 1

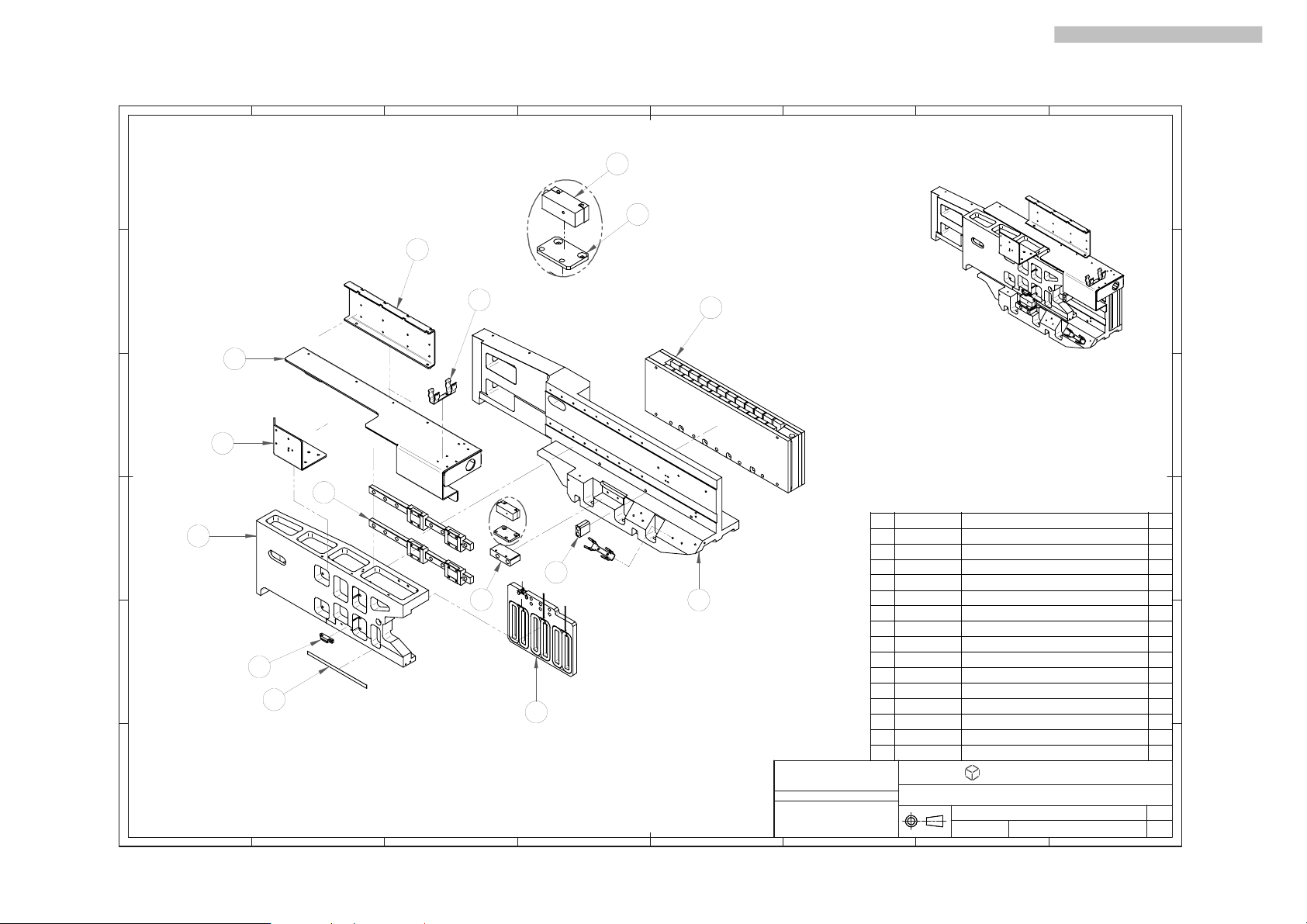

Assembly View
6
7
8
9
12
14
15
2
10
11
13
5
4
3
A
DETAIL A
1
B_P OPTICS MODULE (USB CAM)
7-3
1.1 01-57586 BOND_PICK OPTICS TABLE ASSY-LINEAR MOTOR J
