4-1 Section 4 01-E04283 (SL83) STACKER LOADER B ASM C USTOM ER SERVICE D RAW ING ASM CUSTO MER S ERV ICE DRAW ING ASM CUST OM ER SE RVICE DRA WIN G AS M CUST OM ER S ERVICE D RAW IN G ASM CU STOMER SERV ICE DRA W ING ASM…
4-1
Section 4 01-E04283 (SL83) STACKER LOADER B
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER S ERVICE DRAWINGASM CUSTOMER SERV ICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER S ERVICE DRAWINGASM CUSTOMER SERV ICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO .
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembl y A ut oma ti o n Ltd.
A S M
DWG REV
(SL83) STACKER LOADER
01-E04283
CS-01-E04283
21
FROM: 01-E04283_B_2010.10.07
B1
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E04241 (SL83) LF ELEVATOR 1
2 01-E04789 (SL) LF PLATFORM GUIDE 100X300 1
3 26-F18668 (SL) PAPER CONTAINER 1
4 26-F23298 (SL) SD-2 PLATFORM SPACER 1
Assembly View
3
4
1
2
(SL83) STACKER LOADER
4-2
1 01-E04241 (SL83) LF ELEVATOR E
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV

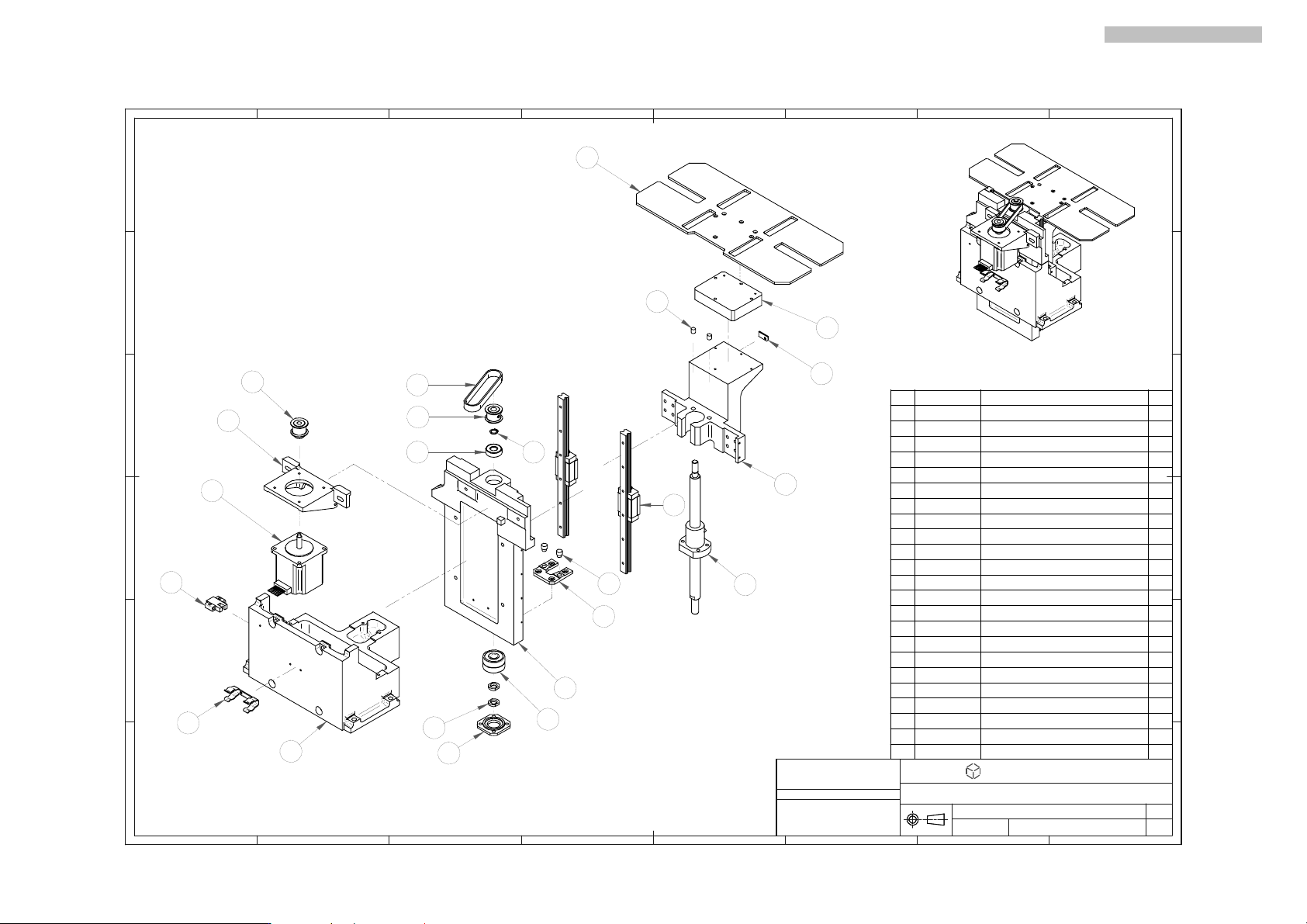

(SL83) LF ELEVATOR
01-E04241
CS-01-E04241
11
FROM: 01-E04241_E_2011.02.09
E1
E
ITEM PART NO. DESCRIPTION QTY.
1 02-74506 (SL83) Z MTR 1
2 19-40190 RETAINER RING FOR 8MM SHAFT 1
3 24-00050 BALL BEARING DIA 8 X DIA 22 X 7 1
4 24-09006 A/C BALL BEARING (F10XF30X9) 2
5 24-30297 LM GUIDE HSR12R1UUC1M+230LM-II 1
6 26-52221 CONNECTOR MOUNT 1
7 26-E77001 (SL) 100MM L/F PLATE MOUNT 1
8 26-E77002 (SL) 100MM ELEVATOR STAND 1
9 26-E77004 (SL) 100MM STOPPER 2
10 26-E77027 (SL) 100MM STOPPER MOUNT 1
11 26-E93414 (SL) SENSOR FLAG 100MM 1
12 26-F23001 (SL) 100MM LF LOADING PLATE 1
13 26-F23299 (SL) SD-2 ELEVATOR STAND SPACER 1
14 26-F30180 (SL) 10MM BASE 1
15 26-F30263 (SL) B/S ASSY 14X4X258 1
16 53-40103 PHOTOSENSOR EE-SX670A 1
17 73-10459 TIMING BELT 10 AT3/201 1
18 S26-E04508 (SL) BEARING COVER 1
19 S26-E04510 (SL) B/S PULLEY 1
20 S26-E04514 (SL) MOTOR PULLEY 1
21 S26-E04517 (SL) STOPPER 2
22 S26-E04520 (SL) MOTOR BRACKET 1
23 S26-E04521 NUT M10X0.75X3 2
Assembly View
23
4
5
6
7
8
9
10
11
12
13
14
15
16
1
17
18
19
20
21
22
23
NOTE:The item 13 is not included in the assembly.
