01-E04270 (WH83) IDX CLAMP OUT G 2-18 01-E06491 (WH83) OUTPUT KICKER ASSY F 2-19 01-E04396 (WH83) REAR MODULE MOUNTING ASSY G 2-20 S01-E11040 (WH312) PROCESS PLATFORM H 2-21 01-E10657 (WH83)PRE BOND HEATI NG AB ASSY(DIA1…
SECTION 2
Part No Description Rev Page
01-E04289 (WH83) WORKHOLDER I 2-1
01-E04258 (WH83) LF ADJUST A 2-2
01-E01665 (WH) LF ADJUST RIGHT A 2-3
01-E01672 (WH) SDII, TW & DS TABLE, RIGHT G 2-4
01-E01674 (WH) SD2, DS & UDA RIGHT UNIT F 2-5
01-E04259 (WH83) LF ADJUST LEFT A 2-6
01-E04261 (WH83) TW & DS TABLE, LEFT C 2-7
01-E04262 (WH83) DS & UDA LEFT UNIT C 2-8
01-E04263 (WH83) FIX FRONT TRACK K 2-9
01-23741 AD8912 WHMA ALIGN CLAMP MECH C 2-10
S01-E10017 (WH) OUTPUT LF JAM ENCODER C 2-11
01-E04265 (WH83) INDEXER E 2-12
01-E04266 (WH83) DOUBLE LF SNR A 2-13
01-E04267 (WH83) IDX CLAMP INP F 2-14
01-E04358 (WH83) INDEXING CLAMP ASSY E 2-15
01-E04268 (WH83) IDX CLAMP DISP F 2-16
01-E04269 (WH83) IDX CLAMP BOND F 2-17
01-E04270 (WH83) IDX CLAMP OUT G 2-18
01-E06491 (WH83) OUTPUT KICKER ASSY F 2-19
01-E04396 (WH83) REAR MODULE MOUNTING ASSY G 2-20
S01-E11040 (WH312) PROCESS PLATFORM H 2-21
01-E10657 (WH83)PRE BOND HEATING AB ASSY(DIA1/8" ) D 2-22
01-E10658 (WH83)BOND HEATING AB ASSY (DIA 1/8") C 2-23
S01-E11045 (WH83) AUX DISP AB ASSY A 2-24
S01-E11046 (WH83) DISP AB ASSY A 2-25
01-E04272 (WH83) PNEU SYSTEM H 2-26
2-1
Section 2 01-E04289 (WH83) WORKHOLDER H
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER S ERV ICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW ING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW ING
ASM CUSTOMER S ERV ICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW ING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO .
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV

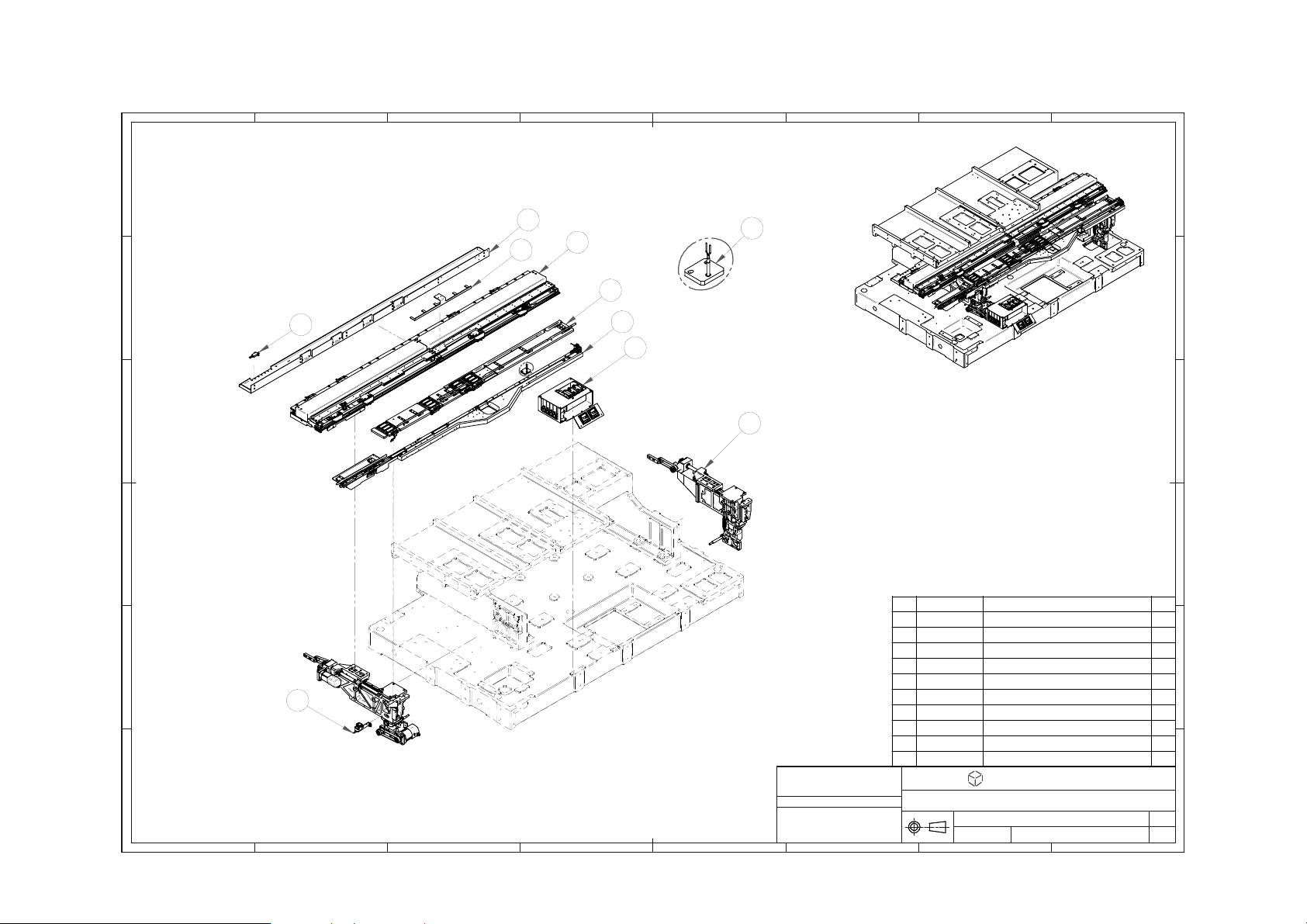

(WH83) WORKHOLDER
01-E04289
CS-01-E04289
11
FROM: 01-E04289_I_2011.02.24
I1
I
ITEM PART NO. DESCRIPTION QTY.
1 01-E04258 (WH83) LF ADJUST 1
2 01-E04263 (WH83) FIX FRONT TRACK 1
3 01-E04265 (WH83) INDEXER 1
4 01-E04271 (WH83) ORIENTATION SNR ASSY 1
5 01-E04272 (WH83) PNEU SYSTEM 1
6 01-E15737 (WH) WAFER ID FIBER SENSOR ASSY. 1
7 26-F33605 WH) INDEXER WIRING DUCT (8312) 1
8 26-F65972 WH PACK MNT 1
9 53-00424 PHOTOMICROSENSOR, EE-SPZ301W-02 1
10 S01-E11040 (WH312) PROCESS PLATFORM 1
2
4
Assembly View
1
5
10
A
DETAIL A
6
NOTE:The item 7,8 are not included in the assembly,And the item
7 is included in 01-E04263
7
8
3
9
