9-1 Section 9 01-E12630 (MOXS) ADIC OUTPUT MAGAZINE HANDLER A ASM C USTOM ER SERVICE DRAW ING ASM CUSTOMER SERVICE DRAWING ASM CUSTOMER S ERVICE DRAW ING ASM CU STOM ER SERV ICE DRAW IN G ASM CUST OMER SERV ICE DRAW IN G…
9-1
Section 9 01-E12630 (MOXS) ADIC OUTPUT MAGAZINE HANDLER A
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV
(MOXS) ADIC OUTPUT MAGAZINE HANDLER
01-E12630
CS-01-E12630
11
FROM: 01-E12630_A_2010.11.20
A1
A
ITEM PART NO. DESCRIPTION QTY.

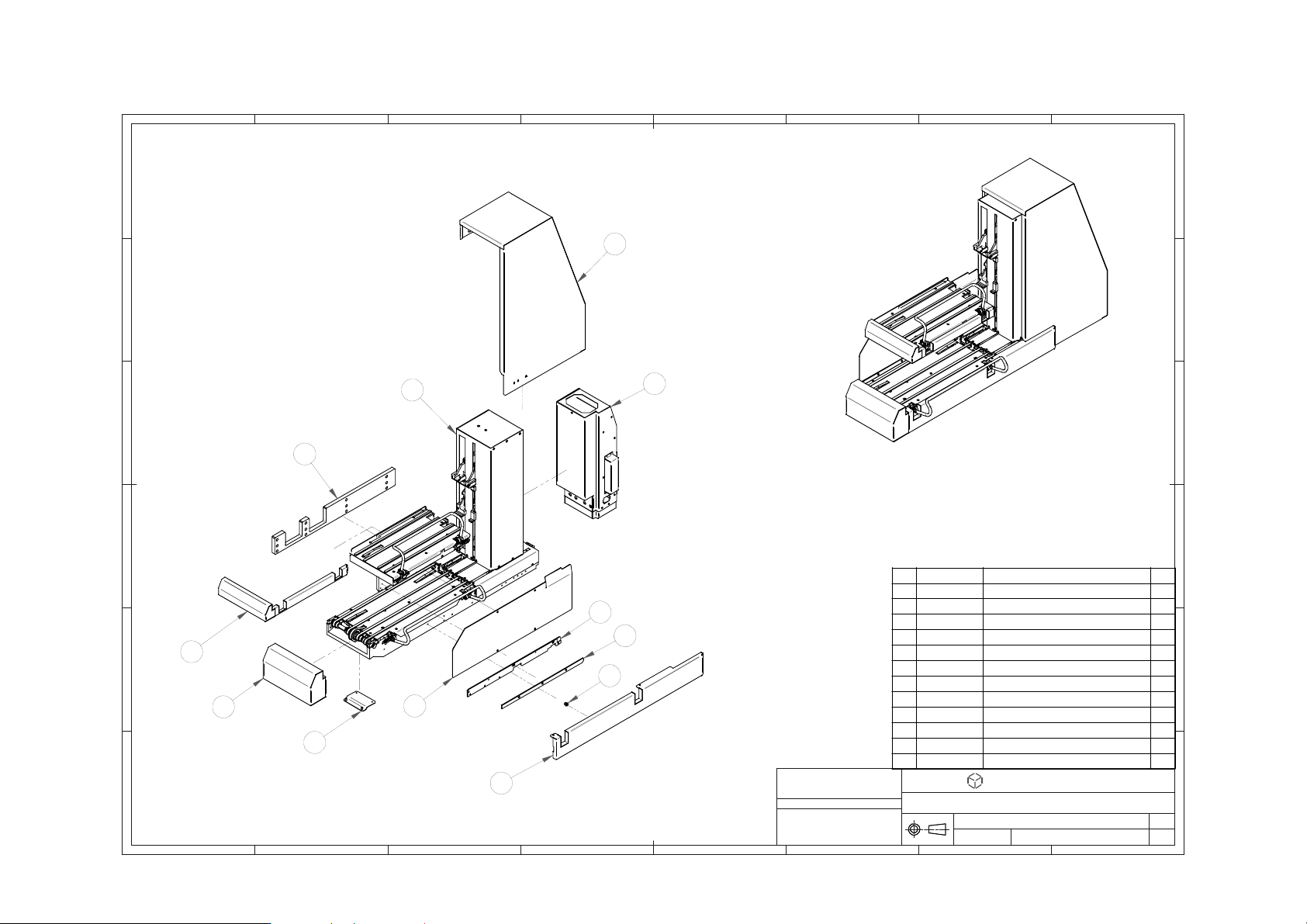

1 01-E07373 (OP) ELEVATOR REAR COVER ASSY 1
2 01-E12094 (OUT) ELEVATOR (SHORT MAG,130MM) ASSY 1
3 01-E12191 DRIVER BOX ASSY (OUTPUT ELE) 1
4 26-F28193 (MH) SPACER 14.5MM 1
5 26-F42335 (MH) WORKHOLDER OUTPUT COVER 1
6 S26-E06435 (MO) LOWER GUIDE BAR 1
7 S26-E07497 (MI) SPACER, MID SIDE 1
8 S26-E07502 (MO) OUT ELE, LOWER CV, MID SIDE 1
9 S26-E07515 (MI) ELE, LOWER CV SUP, FRONT 1
10 S26-E09183 (CV) 8912 OUT ELE, UPPER CV 1
11 S26-E09184 (CV) 8912 OUT ELE,LOWER CV,FRT SIDE 1
12 S26-F98213 (MH83) OP LOWER 2.5MM GUIDE BAR 1
Assembly View
4
5
3
2
1
6
7
8
9
10
11
12
(MOXS) ADIC OUTPUT MAGAZINE HANDLER
9-2
1 01-E12094 (OUT) ELEVATOR (SHORT MAG,300MM) ASSY A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS D W G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
A ssembl y A utoma ti on Ltd.
A S M
DWG REV
(OUT) ELEVATOR (SHORT MAG,300MM) ASSY
01-E12094
CS-01-E12094
11
FROM: 01-E12094_A_2010.11.20
A2
A
ITEM PART NO. DESCRIPTION QTY.

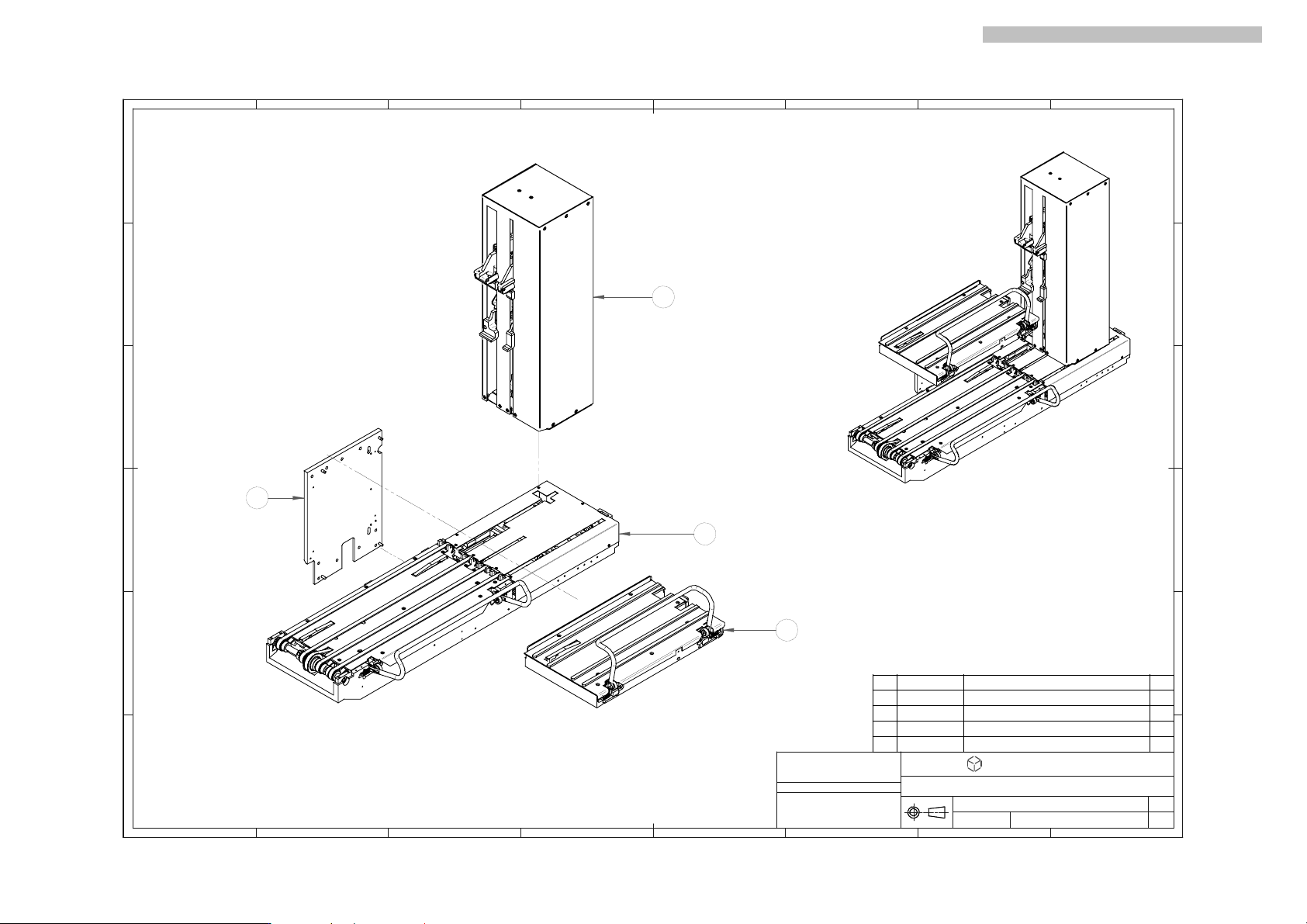

1 01-42688 (OUT) ELEVATOR GRIPPER ASSY (SHORT MAG) 1
2 01-E12095 (OUT) UPPER PLATFORM ASSY 1
3 01-E12096 (MO) BASIC SUPPORT 300MM 1
4 S01-17819 (MO) SIDE PLATE ASSY 1
Assembly View
3
2
NOTE:The item 4 is not included in the assembly.
1
4
