(MOXS) ADIC OUTPUT MAGAZINE HANDLER 9-3 1.1 01-42688 (OUT) ELEVATOR GRIPPER ASSY (SHORT MAG) I ASM CUSTOMER SERVICE DRA WING ASM CUST OMER SERV IC E DRAWI NG ASM CUSTOMER SERVICE DRAWING ASM C USTOMER SERVI CE DRA WING A…
(MOXS) ADIC OUTPUT MAGAZINE HANDLER
9-2
1 01-E12094 (OUT) ELEVATOR (SHORT MAG,300MM) ASSY A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW INGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS D W G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
A ssembl y A utoma ti on Ltd.
A S M
DWG REV
(OUT) ELEVATOR (SHORT MAG,300MM) ASSY
01-E12094
CS-01-E12094
11
FROM: 01-E12094_A_2010.11.20
A2
A
ITEM PART NO. DESCRIPTION QTY.
1 01-42688 (OUT) ELEVATOR GRIPPER ASSY (SHORT MAG) 1
2 01-E12095 (OUT) UPPER PLATFORM ASSY 1
3 01-E12096 (MO) BASIC SUPPORT 300MM 1
4 S01-17819 (MO) SIDE PLATE ASSY 1
Assembly View
3
2
NOTE:The item 4 is not included in the assembly.
1
4
(MOXS) ADIC OUTPUT MAGAZINE HANDLER
9-3

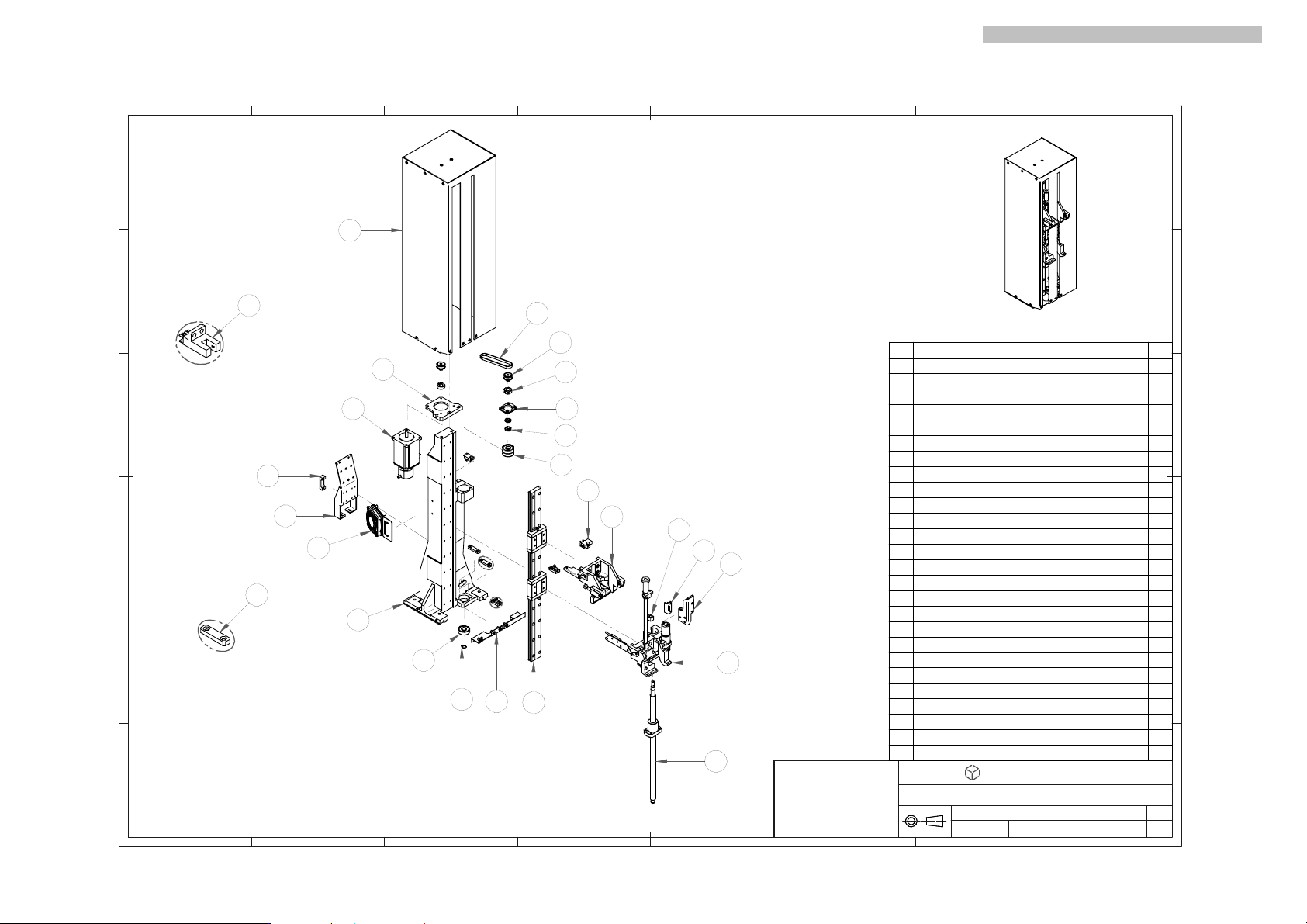

1.1 01-42688 (OUT) ELEVATOR GRIPPER ASSY (SHORT MAG) I
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESI STORS ARE IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(OUT) ELEVATOR GRIPPER ASSY (SHORT MAG)
01-42688
CS-01-42688
11
FROM: 01-42688_I_2010.10.09
I1
I
ITEM PART NO. DESCRIPTION QTY.
1 01-31710 (OUT) UPPER GRIPPER ASSY 1
2 01-43489 Z- MOTOR COOLING FAN ASSY 1
3 01-43498 (OUT)LOWER GRIPPER ASSY 1
4 02-51005 GRIPPER HOME SEN ASSY 1
5 02-51064 MAG Z MTR ASSY 1
6 19-40219 RETAINING RING MD0471MQB010 1
7 24-00074 DEEP GROOVE BALL BEARING 6200 ZZ 1
8 24-09006-1 A/C BALL BEARING 10X30X9 1
9 24-30304 LM GUIDE HRW 21CR 2 UUC1+530 L 1
10 26-35493 PULLEY CLAMP RING 2
11 26-48677 (OU) Z MOTOR MOUNT 1
12 26-E11270 (OUT) Z-COVER (FRONT BOTTOM) 1
13 26-E48620 (MO) Z FLAG (SHORT) 1
14 26-E48621 (OP) ST Z CABLE MOUNT 1
15 26-E52953 (OUT) Z-COVER (FRONT TOP) 1
16 26-E71669 (I/O)Z WIRING BRACKET 1
17 26-E89245 STANDARD STOPPER 1
18 53-40196 FORK SENSOR EE-SX673 3
19 73-10475 TIMING BELT 6 AT3/201 1
20 S01-17447 (MI) Z BALLSCREW BSK14X4C 1
21 S26-E02212 TUBE MOUNT(4 TUBE)-HOLE 1
22 S26-E05937 (MI) Z BEARING COVER 1
23 S26-E05963 (MI) LOCKING NUT 2
24 S26-E06445 (MO) MAIN BODY 1
25 S26-F21693 CASSETTE BACK STOPPER 2
26 S27-60339 (IN) Z-PULLEY 2
9
12
14
1
21
B
DETAIL B
6
7
11
15
16
17
19
3
4
5
24
25
18
Assembly View
13
NOTE:The item 13 is not included in the assembly.
For the assembly position of 02-58124,
Please refer to 01-43498.
26
10
22
23
8
A
DETAIL A
20
2
(MOXS) ADIC OUTPUT MAGAZINE HANDLER
9-4

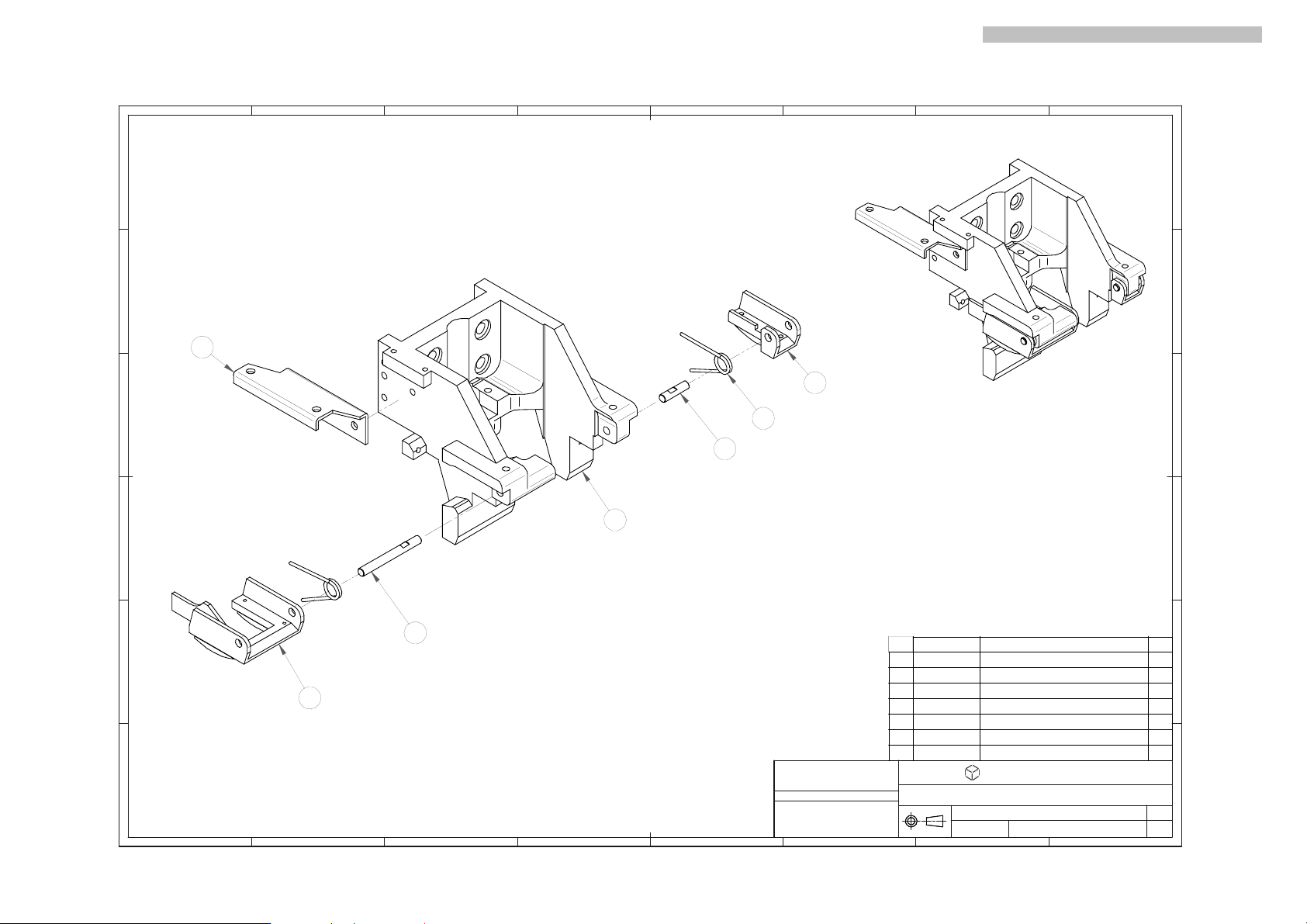

1.1.1 01-31710 (OUT) UPPER GRIPPER ASSY D
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(OUT) UPPER GRIPPER ASSY
01-31710
CS-01-31710
11
FROM: 01-31710_D_2008.09.18
D3
D
ITEM PART NO. DESCRIPTION QTY.
1 01-41521 (OU) CLAMP W/FLAG (36MM) 1
2 26-E10774 (IN) CLAMP PIVOT 1
3 26-E11271 (OUT) UPPER GRIPPER BODY 1
4 S01-32245 (MO) CLAMP 1
5 S26-E05939 (MI) CLAMP PIVOT 1
6 S26-E06440 (MO) WIRING MOUNT-UC 1
7 S26-E07832 (MI) GRIPPER TORSION SPRING 2
Assembly View
2
3
1
4
5
6
7
