(MIXS) ADIC INPUT MAGZINE HANDLER 1-9 2.2 01-E12090 (IN) UPPER PLATFORM ASSY (SHORT MAG) A ASM CUSTOMER SERVICE DRA WING ASM CUST OMER SERV IC E DRAWI NG ASM CUSTO MER SERVIC E DRA WIN G ASM CUSTOMER SE RVICE DRAWING ASM…
(MIXS) ADIC INPUT MAGZINE HANDLER
1-8
2.1.2 01-43780 (IN) UPPER GRIPPER ASSY (SHORT MAG) D
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESI STORS ARE IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V

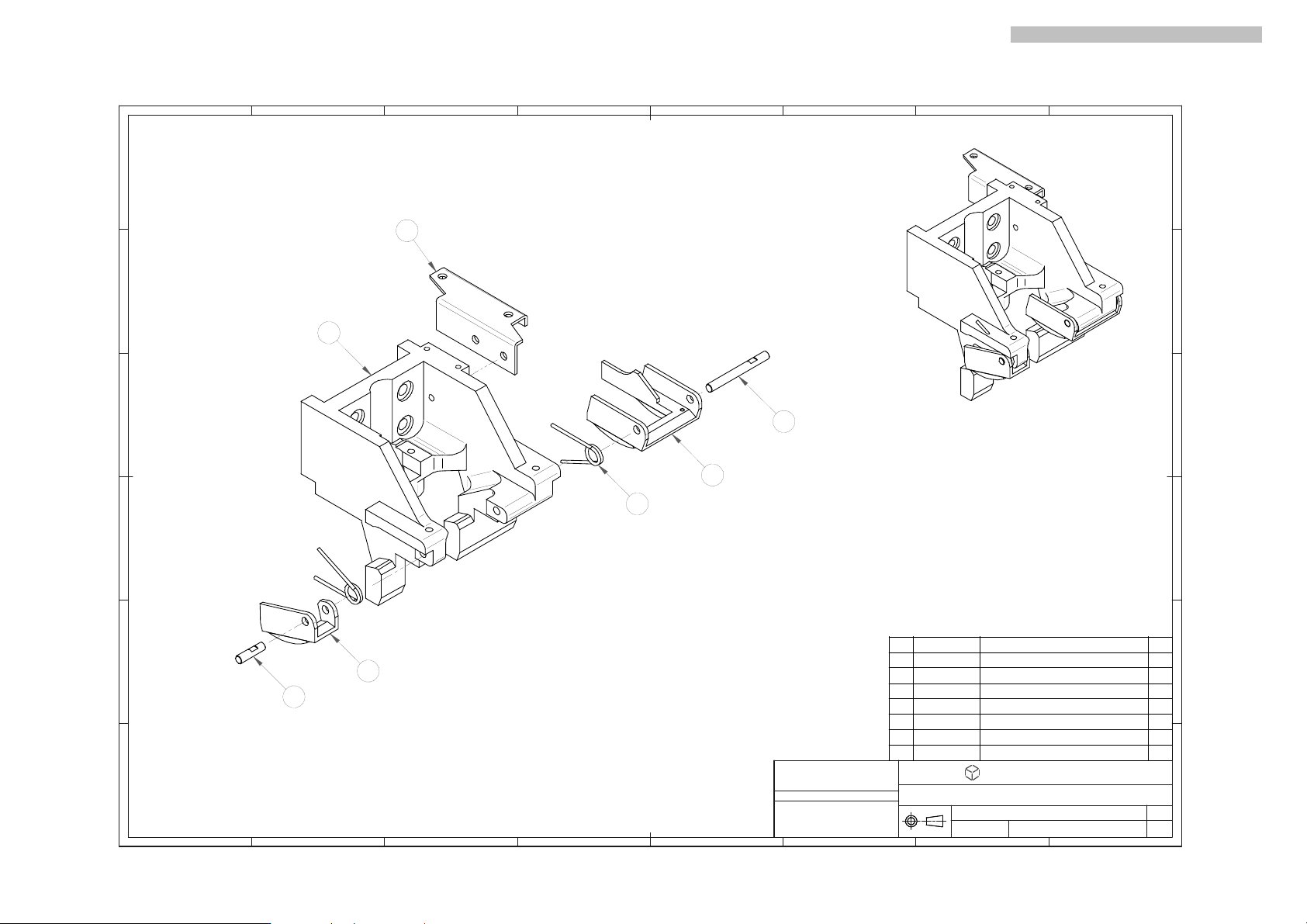

(IN) UPPER GRIPPER ASSY (SHORT MAG)
01-43780
CS-01-43780
11
FROM: 01-43780_D_2010.10.09
D1
D
ITEM PART NO. DESCRIPTION QTY.
1 01-41520 (IN) CLAMP W/FLAG (36MM) 1
2 26-E10772 (IN) UPPER GRIPPER BODY 1
3 26-E10774 (IN) CLAMP PIVOT 1
4 S01-32247 (MI) CLAMP 1
5 S26-E05935 (MI) WIRING MOUNT-UC 1
6 S26-E05939 (MI) CLAMP PIVOT 1
7 S26-E07832 (MI) GRIPPER TORSION SPRING 2
Assembly View
1
2
3
4
5
6
7
(MIXS) ADIC INPUT MAGZINE HANDLER
1-9
2.2 01-E12090 (IN) UPPER PLATFORM ASSY (SHORT MAG) A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(IN) UPPER PLATFORM ASSY (SHORT MAG)
01-E12090
CS-01-E120 90
11
FROM: 01-E12090_A_2010.11.11
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 01-25570 (MI) MAG SNR ASSY, UPPER PLATFORM 1
2 02-51058 MAG BUFFER FULL SEN ASSY 1
3 02-51060 MAG SAFETY SEN ASSY 1
4 26-42936 (MI) ANTI-FRICTION BAR 3
5 26-E10676 (IN) UPPER PLATFORM 1
6 26-E10677 (IN) MIRROR PLATE 1
7 26-E10678 (IN) MAG STOPPING PLATE 1
8 26-E10764 (IN) PIVOT 1
9 26-E10765 (IN) SAFETY GUARD 1
10 26-E10766 (IN) SHORT ANTI-FRICTION BAR 1
11 S26-E05891 (MI) ROLLER SHAFT 2
12 S26-E05892 (MI) ROLLER 2
13 S26-E05893 (MI) SPRING SPACER 2
14 S26-E05897 (MI) MAG GUIDE PIVOT 2
15 S26-E05898 (MI) PIVOT SPACER 2
16 S26-E05899 (MI) TORSION SPRING-R 1
17 S26-E05900 (MI) TORSION SPRING-L 1
18 S26-E06013 (MI) RETURN SPRING HOLDER 2
19 S26-E06015 (MI) SPRING GUIDE 2
20 S26-E06017 (MI) STOPPING PLATE 2
21 S26-E06372 (MI) BOTTOM COVER 1
22 S26-E06373 (MI) CLIP NUT 2
23 S26-E06374 (MI) FLAG-1 1
24 S26-E06381 (MI) STOPPING SCREW 1
25 S26-E06382 (MI) UPPER GUIDE BAR 1
26 S26-E06387 (MI) FLAG-2 1
27 S26-E07164 (MI)COMPRESSION SPRING 2
28 S26-E08371 (MI) SAFETY GUARD SPRING 5
29 S26-G05360 (MI) UPPER MAG. GUIDE ROD 1
4
5
6
8
9
10
1
2
11
12
20
21
22
25
29
28
A
DETAIL A
13
16
14
B
DETAIL B
7
23
24
Assembly View
15
3
26
18
C
DETAIL C
27
19
17
(MIXS) ADIC INPUT MAGZINE HANDLER
1-10
2.2.1 01-25570 (MI) MAG SNR ASSY, UPPER PLATFORM A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(MI) MAG SNR ASSY, UPPER PLATFORM
01-25570
CS-01-25570
11
FROM: 01-25570_A_2010.10.09
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 26-63208 (MI) SENSOR FLAG, UPPER PLATFORM 1
2 75-80003 TORSION SPRING LTL-023D-5-M 1
3 S26-E05924 (MI) SENSOR BRACKET 1
4 S26-E05925 (MI) MAGAZINE SENSOR SHAFT 1
Assembly View
1
2
3
4
