(EW83) AUX EPOXY WRITER 6-4 2 01-E07582 (AEW83) EPOXY WRITER TABLE D ASM CUST OM ER SE RV ICE DRAW ING AS M C UST OMER S ERV ICE D RAWIN G ASM CUST OME R SERV ICE D RAW IN G ASM CUST OM ER S ERVICE D RAW IN G ASM CUST OM…
(EW83) AUX EPOXY WRITER
6-3
1.1 01-E04292 (OE83) EPOXY OPTICS A
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERV ICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERV ICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV
(OE83) EPOXY OPTICS
01-E04292
CS-01-E04292
11
FROM: 01-E04292_A_2010.01.26
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 01-31455 EPOXY WRITER OPTICS 1
2 01-42136 PROGRESSIVE OPTICS FOV 24.8X18.6 KIT 1
3 01-69498 CA_7.4-B/W CAMERA HEAD ASSY-600 1
Assembly View
3
1
2
(EW83) AUX EPOXY WRITER
6-4
2 01-E07582 (AEW83) EPOXY WRITER TABLE D
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERV ICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERV ICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV
(AEW83) EPOXY WRITER TABLE
01-E07582
CS-01-E07582
21
FROM: 01-E07582_D_2011.02.09
D1
D
ITEM PART NO. DESCRIPTION QTY.
1 02-74529 (EW83) Y HOME ELEC ASSY 1
2 02-74530 (EW83) X HOME ELEC ASSY 1
3 02-76802 (AEW83) Z MTR ASSY 1
4 02-76803 (AEW83) X MTR ASSY 1
5 02-76804 (AEW83) Y MTR ASSY 1
6 05-00448 B-SCREW 12-10X150X30X50, P-C5Z 1
7 05-20080 MOD.NSKW12O1FA-5P-C5Z10BALLSCREW106 1
8 19-40220 RETAINING RING FOR DIA 8MM STW-8 2
9 24-00042 A/C BALL BEARING 10 X 26 X 8 C9 3
10 24-00050-1 BALL BEARING 8X22X7 608Z 2
11 24-11023 BALL BEARING 6X15X5 696ZZ 1
12 24-30156 LM GUIDE HSR10 R 2UUM+95LPM-II 1
13 24-30157 LM GUIDE HSR12R2UUM+150LPM-II 1
14 24-30317 LM GUIDE SSR15XW2UUC1M+280LYUPM-II 1
15 26-E41104 (EW) Z-SLIDER 1
16 26-E41106 (EW) Y BASE 1
17 26-F07367 (EW) X SENSOR FLAG 1
18 26-F07368 (EW) X SENSOR MNT 1
19 26-F21467 (EW)X-STOPPER MNT 1 1
20 26-F21468 (EW) X STOPPER MNT 2 1
21 26-F21470 (EW) STOPPER PAD 3
22 26-F22611 (EW) Y SENSOR FLAG 1
23 26-F28607 (EW) RETURN SPRING MOUNT 1
24 26-F30454 (EW) SENSOR MNT 1
25 26-F37025 (EW) Z-BEARING COVER 1
26 26-F39283 (EW)X - SLIDER - 2"X 1
27 26-F57322 (EW) Y STOPPER MNT 1
28 53-40071 PHOTO SENSOR EE-SX473 1
29 71-10067 BELLOW COUPLING DKN 20/38-8H7-8H7 2
30 71-10080 BELLOW COUPLING DKN15/26-6.35H7-8H7 1
31 S26-48682 (EW) A/C BEARING SPACER 2
32 S26-48683 (EW) Y-A/C BEARING COVER 1
33 S26-48684 (EW) X BEARING COVER 1
34 S26-48691 (EW) Z-ECCENTRIC SHAFT 1
35 S26-48692 (EW) Z-A/C BEARING SPACER 1
36 S26-48695 (EW) M10X1 NUT 1 3
ITEM PART NO. DESCRIPTION QTY.
37 S26-48696 (EW) M10X1 NUT 2 3
38 S26-48698 (EW) FOLLOWING BEARING SPACER (F) 1
39 S26-48699 (EW) FOLLOWING BEARING SPACER (R) 1
40 S26-48784 (EW) SPRING PIN 4
41 S26-48990 (EW) Z-ADJUSTMENT 1
42 S26-48998 (EW) SPRING 1(X) 1
43 S26-48999 (EW) PLUG 1
44 S26-49624 (EW) PIVOT 1
45 S26-49625 (EW) Z-ADJUSTMENT SPRING 2
46 S26-50751 (EW) X LEVEL ADJUSTMENT MOUNT 1
47 S26-50804 (EW)Y-SLIDER-2"X 1
48 S26-52216 (EW) X-SENSOR CABLE MOUNT 1
49 S26-E02006 SENSOR FLAG Z-HOME 1
50 S26-F60716 (EW) SLIDING PLATE 1
51 S26-F90697 (EW) Z-SPRING (COIL 56) 2

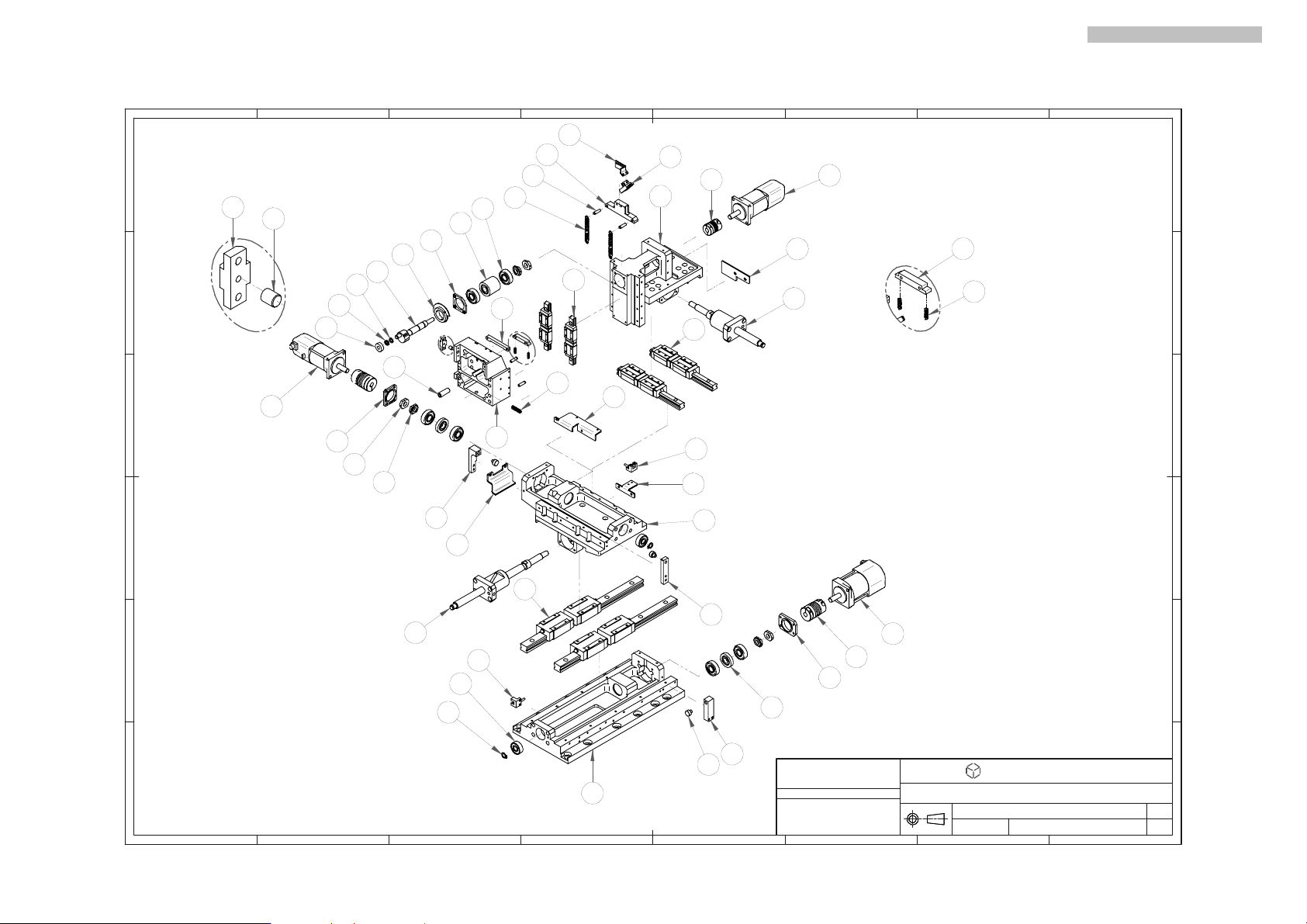

Assembly View
NOTE:The exploded view is on the page 6-5
(EW83) AUX EPOXY WRITER
6-5
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV
(AEW83) EPOXY WRITER TABLE
01-E07582
CS-01-E07582
22
FROM: 01-E07582_D_2011.02.09
D1
D
16
3
4
5
6
7
8
9
10
11
13
14
15
17
19
20
21
25
26
28
29
30
47
31
32
33
34
35
38
39
40
42
48
49
51
36
37
A
DETAIL A
46
43
50
44
1
B
DETAIL B
41
45
12
18
22
23
24
2
27
NOTE:The part table is on the page 6-4
