ASMPT AD8312 Mech & Elec Drawing Album.pdf - 第22页
(MIXS) ADIC INPUT MAGZINE HANDLER 1-10 2.2.1 01-25570 (MI) MAG SNR ASSY, UPPER PLATFORM A ASM CUSTOMER SERVICE DRA WING ASM CUST OMER SERV IC E DRAWI NG ASM CUSTO MER SERVIC E DRA WIN G ASM CUSTOMER SE RVICE DRAWING ASM …
(MIXS) ADIC INPUT MAGZINE HANDLER
1-9
2.2 01-E12090 (IN) UPPER PLATFORM ASSY (SHORT MAG) A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V

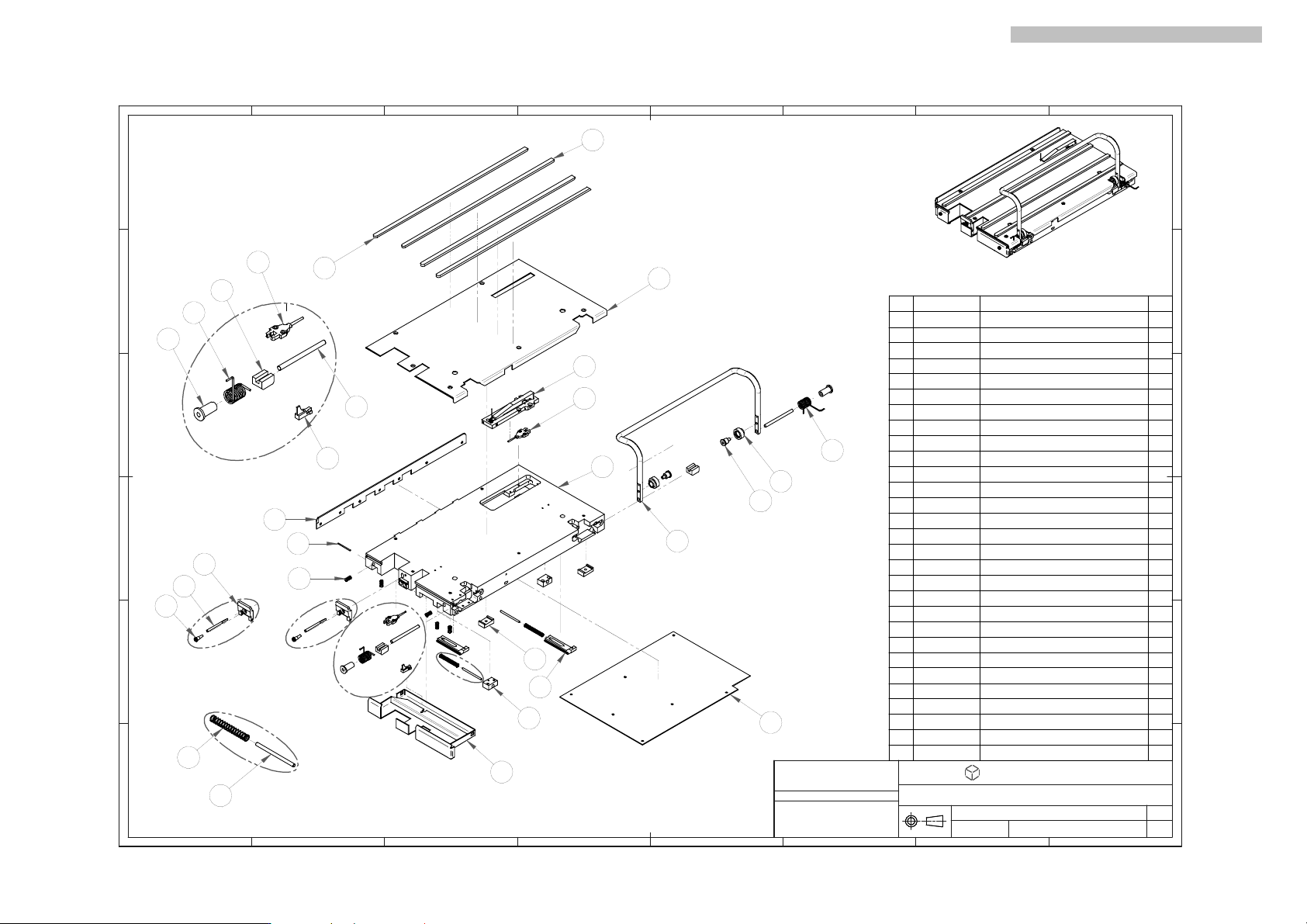

(IN) UPPER PLATFORM ASSY (SHORT MAG)
01-E12090
CS-01-E120 90
11
FROM: 01-E12090_A_2010.11.11
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 01-25570 (MI) MAG SNR ASSY, UPPER PLATFORM 1
2 02-51058 MAG BUFFER FULL SEN ASSY 1
3 02-51060 MAG SAFETY SEN ASSY 1
4 26-42936 (MI) ANTI-FRICTION BAR 3
5 26-E10676 (IN) UPPER PLATFORM 1
6 26-E10677 (IN) MIRROR PLATE 1
7 26-E10678 (IN) MAG STOPPING PLATE 1
8 26-E10764 (IN) PIVOT 1
9 26-E10765 (IN) SAFETY GUARD 1
10 26-E10766 (IN) SHORT ANTI-FRICTION BAR 1
11 S26-E05891 (MI) ROLLER SHAFT 2
12 S26-E05892 (MI) ROLLER 2
13 S26-E05893 (MI) SPRING SPACER 2
14 S26-E05897 (MI) MAG GUIDE PIVOT 2
15 S26-E05898 (MI) PIVOT SPACER 2
16 S26-E05899 (MI) TORSION SPRING-R 1
17 S26-E05900 (MI) TORSION SPRING-L 1
18 S26-E06013 (MI) RETURN SPRING HOLDER 2
19 S26-E06015 (MI) SPRING GUIDE 2
20 S26-E06017 (MI) STOPPING PLATE 2
21 S26-E06372 (MI) BOTTOM COVER 1
22 S26-E06373 (MI) CLIP NUT 2
23 S26-E06374 (MI) FLAG-1 1
24 S26-E06381 (MI) STOPPING SCREW 1
25 S26-E06382 (MI) UPPER GUIDE BAR 1
26 S26-E06387 (MI) FLAG-2 1
27 S26-E07164 (MI)COMPRESSION SPRING 2
28 S26-E08371 (MI) SAFETY GUARD SPRING 5
29 S26-G05360 (MI) UPPER MAG. GUIDE ROD 1
4
5
6
8
9
10
1
2
11
12
20
21
22
25
29
28
A
DETAIL A
13
16
14
B
DETAIL B
7
23
24
Assembly View
15
3
26
18
C
DETAIL C
27
19
17
(MIXS) ADIC INPUT MAGZINE HANDLER
1-10
2.2.1 01-25570 (MI) MAG SNR ASSY, UPPER PLATFORM A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V

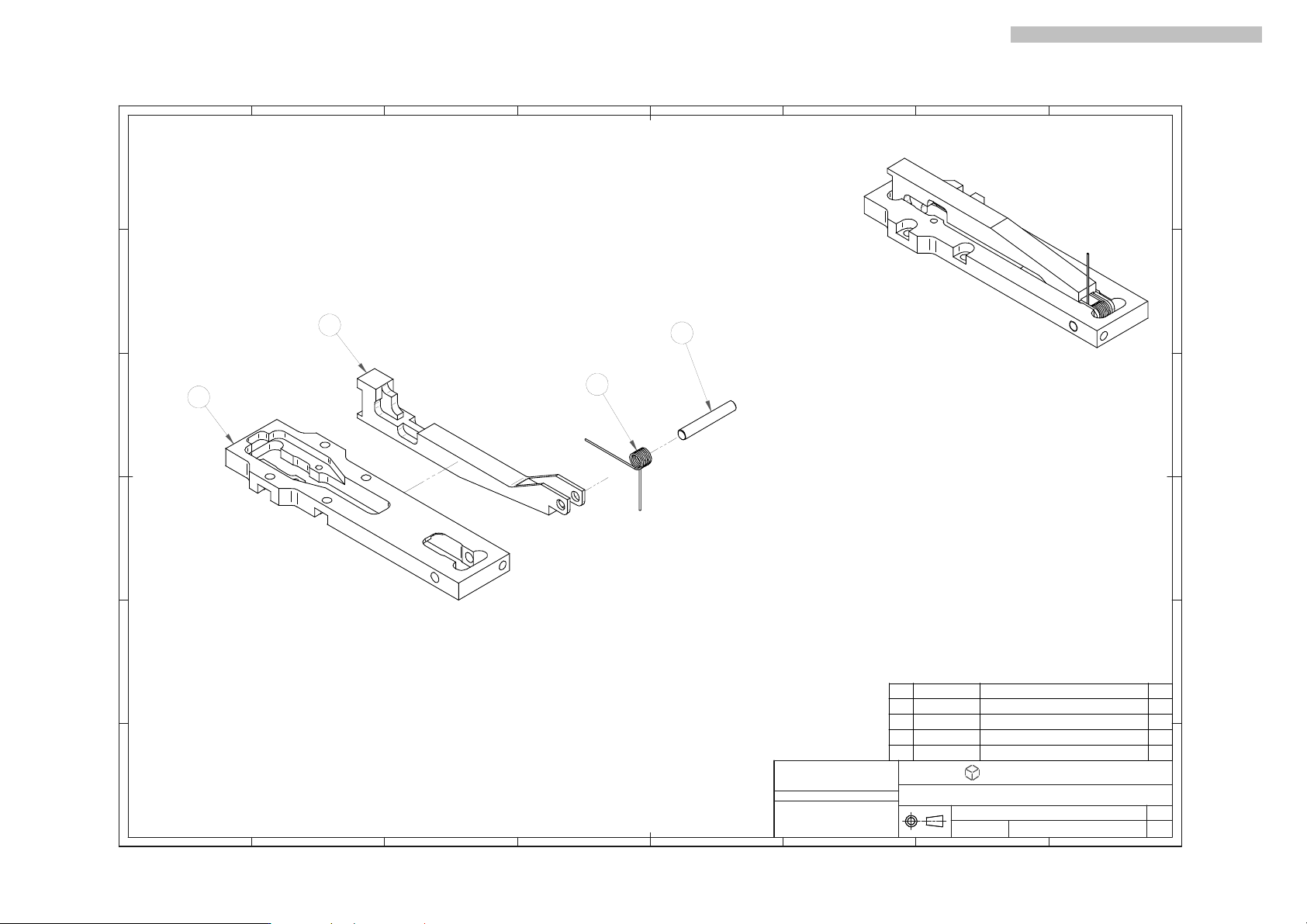

(MI) MAG SNR ASSY, UPPER PLATFORM
01-25570
CS-01-25570
11
FROM: 01-25570_A_2010.10.09
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 26-63208 (MI) SENSOR FLAG, UPPER PLATFORM 1
2 75-80003 TORSION SPRING LTL-023D-5-M 1
3 S26-E05924 (MI) SENSOR BRACKET 1
4 S26-E05925 (MI) MAGAZINE SENSOR SHAFT 1
Assembly View
1
2
3
4
(MIXS) ADIC INPUT MAGZINE HANDLER
1-11
2.3 01-E12091 (MI) BASIC SUPPORT 300MM A
ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER S ERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW ING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER S ERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAW ING
ASM CUSTOMER SERV ICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO .
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV

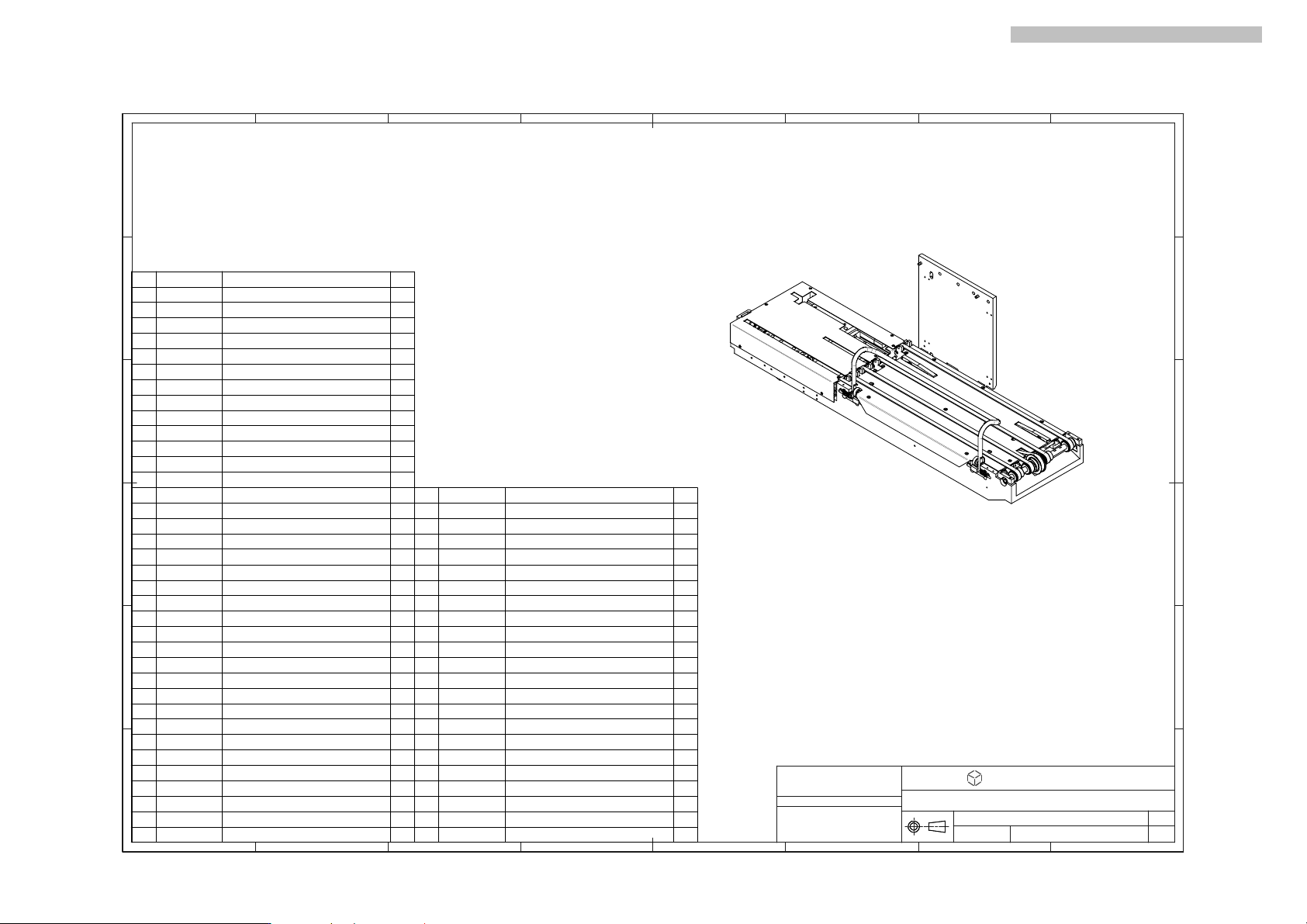

(MI) BASIC SUPPORT 300MM
01-E12091
CS-01-E12091
21
FROM: 01-E12091_A_2011.02.12
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 01-43490 Y- MOTOR COOLING FAN ASSY 1
2 01-46260 BASE MAGAZINE READY SENSOR ASSY 1
3 01-46261 BASE MAGAZINE DETECTING SENSOR ASSY 1
4 01-52943 Y LEADSCREW (5") ASSY 1
5 02-51063 MAG Y MTR ASSY 1
6 02-51065 MTR CONVEY MTR ASSY 1
7 19-40220 RETAINING RINGS MD0471MQB008 1
8 24-00050-2 BALL BEARING 608-2Z 1
9 24-09007 A/C BALL BEARING 8X22X7 1
10 24-11105 FLANGED BALL BEARING FL698ZZ 2
11 24-30195 LM GUIDE HSR15R2UUC1+280LP II 1
12 26-35493 PULLEY CLAMP RING 2
13 26-E10674 (IN) L-MOUNT 1
14 26-E10767 (IN) BELT COVER 1
15 26-E10768 (IN) DRIVING PULLY SHAFT 1
16 26-E10769 (IN) STOPPING PLATE 2
17 26-E10770 (IN) SPRING GUIDE 2
18 26-E10771 (IN) CONVEYOR MTR MOUNT 1
19 26-E26372 (MI) TENSIONER BRACKET 4
20 26-E41996 (MI) Y END STOPPER 1 1
21 26-E48628 MI ST BASE SUPPORT (SHORT MAG.) 1
22 26-E48724 (MI) Y SENSOR FLAG 1
23 26-E68864 (MI) Y HOME FLAG (5") 1
24 53-40108 PHOTOMICROSENSOR EE-SX671A 2
25 73-00063 TIMING BELT 10 T5/1100 4
26 73-10474 TIMING BELT 10 T5/245 1
27 73-10476 TIMING BELT 10 T5/365 1
28 S01-17442 (MI) DRIVEN PULLEY ASSY 4
29 S01-17563 (MI) SIDE PLATE ASSY 1
30 S26-E02212 TUBE MOUNT(4 TUBE)-HOLE 2
31 S26-E05883 (MI) M4 NUT PLATE 4
32 S26-E05888 (MI) BEARING COVER 1
33 S26-E05890 (MI) Y END STOPPER 2 1
34 S26-E05891 (MI) ROLLER SHAFT 2
35 S26-E05892 (MI) ROLLER 2
36 S26-E05893 (MI) SPRING SPACER 2
ITEM PART NO. DESCRIPTION QTY.
37 S26-E05897 (MI) MAG GUIDE PIVOT 2
38 S26-E05898 (MI) PIVOT SPACER 2
39 S26-E05899 (MI) TORSION SPRING-R 1
40 S26-E05900 (MI) TORSION SPRING-L 1
41 S26-E05906 (MI) TENSIONER 4
42 S26-E05911 (MI) TENSIONER SHAFT 4
43 S26-E05913 (MI) TENSIONER SHAFT 4
44 S26-E05916 (MI) LOCKING NUT 2
45 S26-E05926 (MI) BEARING KEEPPER 2
46 S26-E06013 (MI) RETURN SPRING HOLDER 2
47 S26-E06014 (MI) M5 FLANGE 2
48 S26-E07164 (MI)COMPRESSION SPRING 2
49 S26-E25248 (MI) Y SLIDE PLATE (5") 1
50 S26-E25251 (MI) Y TABLE COVER (5") 1
51 S26-E25685 (MI) Y BEARING HOUSING 2 (5") 1
52 S26-G05361 (MI) LOWER MAG. GUIDE ROD 1
53 S27-60342 (IN) Y SCREW PULLEY 1
54 S27-60343 (IN) MOTOR DRIVEN PULLEY 1
55 S27-60344 (IN) DRIVING PULLEY 1
56 S27-60345 (IN) Y MOTOR PULLEY 1
57 S27-60359 (IN) TENSION PULLEY 16G 4
58 S27-60872 (IN) Y BEARING HOUSING 1 1
Assembly View
NOTE:The exploded view is on the page 1-12
