(WT83) WAFER TABL E 12-16 3.8 01-60558 (WT) ROTATING RING ENCODER IDLER B ASM CUSTOMER SERVICE DRA WING ASM CUST OMER SERV IC E DRAWI NG ASM CUSTOMER SERVICE DRAWING ASM C USTOMER SERVI CE DRA WING ASM CUSTOMER S ERVICE …

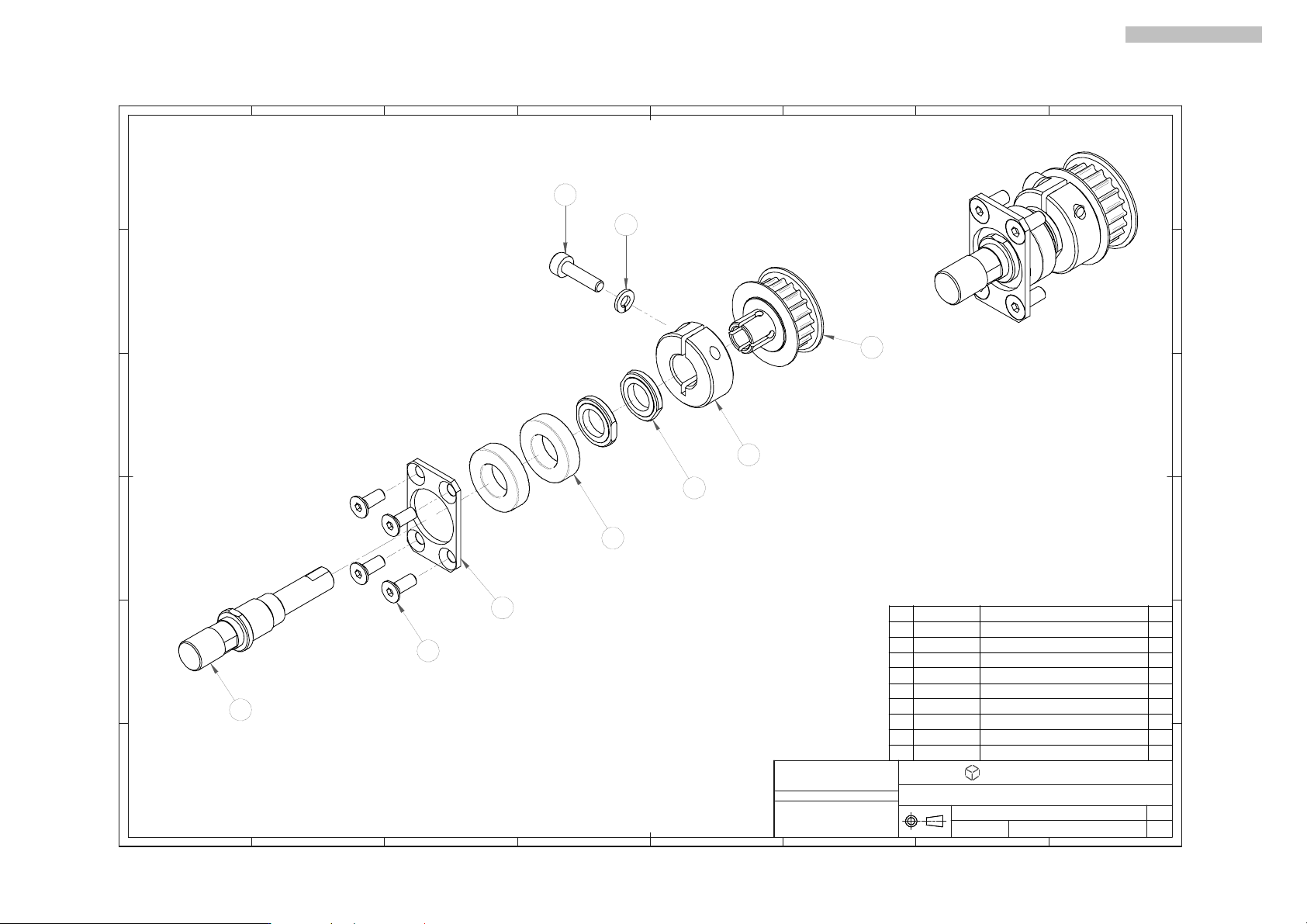

(WT83) WAFER TABLE
12-15
3.7 01-60557 (WT) ROTAING RING DRIVING SHAFT ASSY A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESI STORS ARE IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(WT) ROTAING RING DRIVING SHAFT ASSY
01-60557
CS-01-60557
11
FROM: 01-60557_A_2010.10.08
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 20-45474 FLAT HD SOC SCREW M3 X 8 4
2 20-60478 SOC HD CAP SCREW M3 X 12 2
3 22-20103 WASHER SPRING M3 2
4 24-09007-1 A/C BALL BRG 8X22X7 708CTYDBC8P4 1
5 26-E26668 (WT) SET COLLAR D8.5 2
6 26-E26680 (WT) TIMING PULLEY (GT 3, 20T, W7) 1
7 26-E26765 (WT) A/C BEARING COVER, B22 1
8 26-E38192 (WT) TIMING PULLEY (HTD 3, 36T, W7) 1
9 26-E89097 (WT) ROTATING RING DRIVE SHAFT 1
10 26-E89100 LOCK NUT M8X0.75 T2 2
Assembly View
1
2
3
4
5
6
7
8
9
10

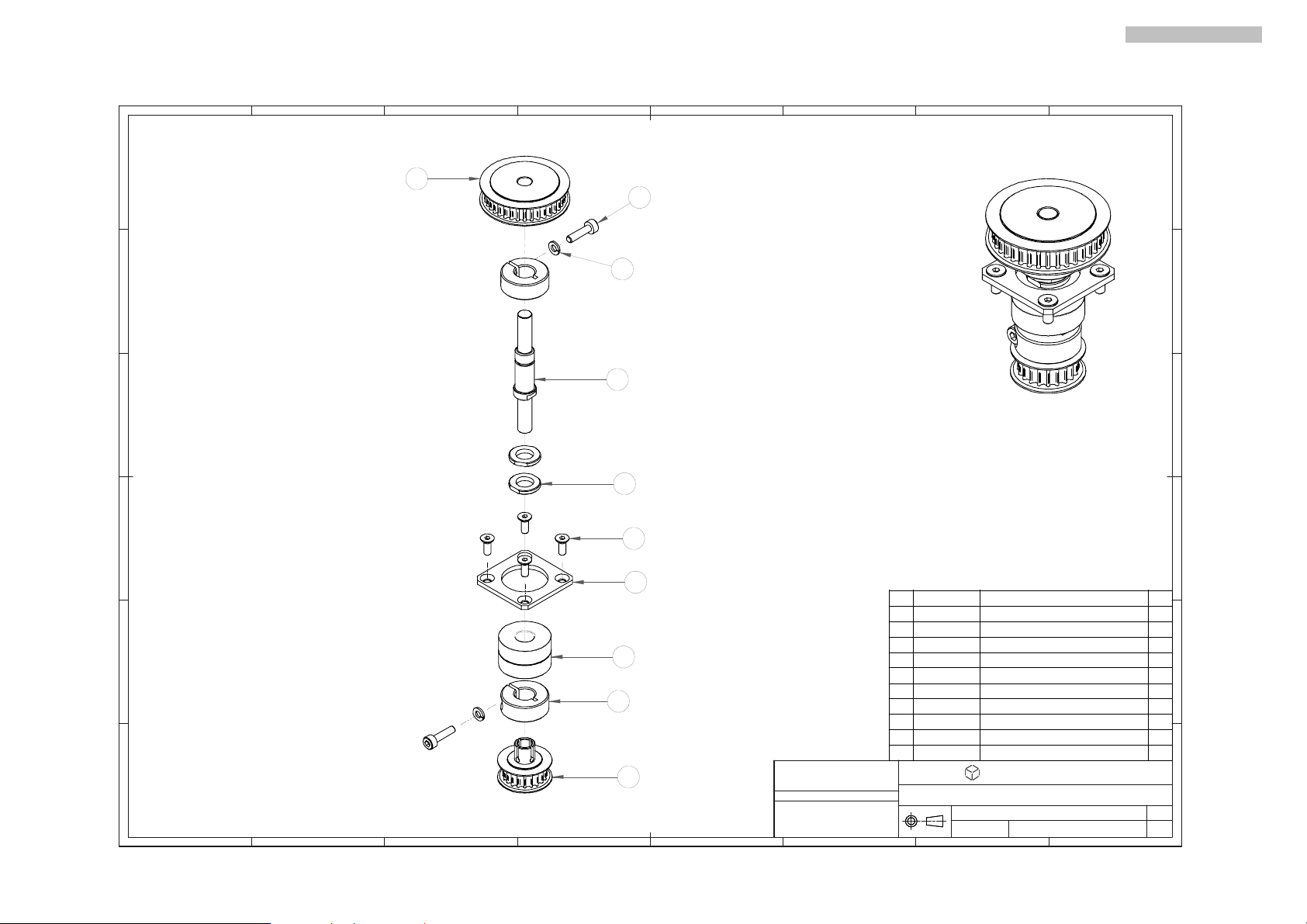

(WT83) WAFER TABLE
12-16
3.8 01-60558 (WT) ROTATING RING ENCODER IDLER B
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESI STORS ARE IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(WT) ROTATING RING ENCODER IDLER
01-60558
CS-01-60558
11
FROM: 01-60558_B_2010.10.08
B1
B
ITEM PART NO. DESCRIPTION QTY.
1 20-45474 FLAT HD SOC SCREW M3 X 8 4
2 20-60478 SOC HD CAP SCREW M3 X 12 1
3 22-20103 WASHER SPRING M3 1
4 24-00151 BALL BEARING 689 2
5 26-E26668 (WT) SET COLLAR D8.5 1
6 26-E26680 (WT) TIMING PULLEY (GT 3, 20T, W7) 1
7 26-E38682 (WT) BEARING COVER, B17 1
8 26-E89100 LOCK NUT M8X0.75 T2 2
9 26-E89101 (WT) ROTATING RING IDLER SHAFT 1
Assembly View
1
2
3
4
5
6
7
8
9

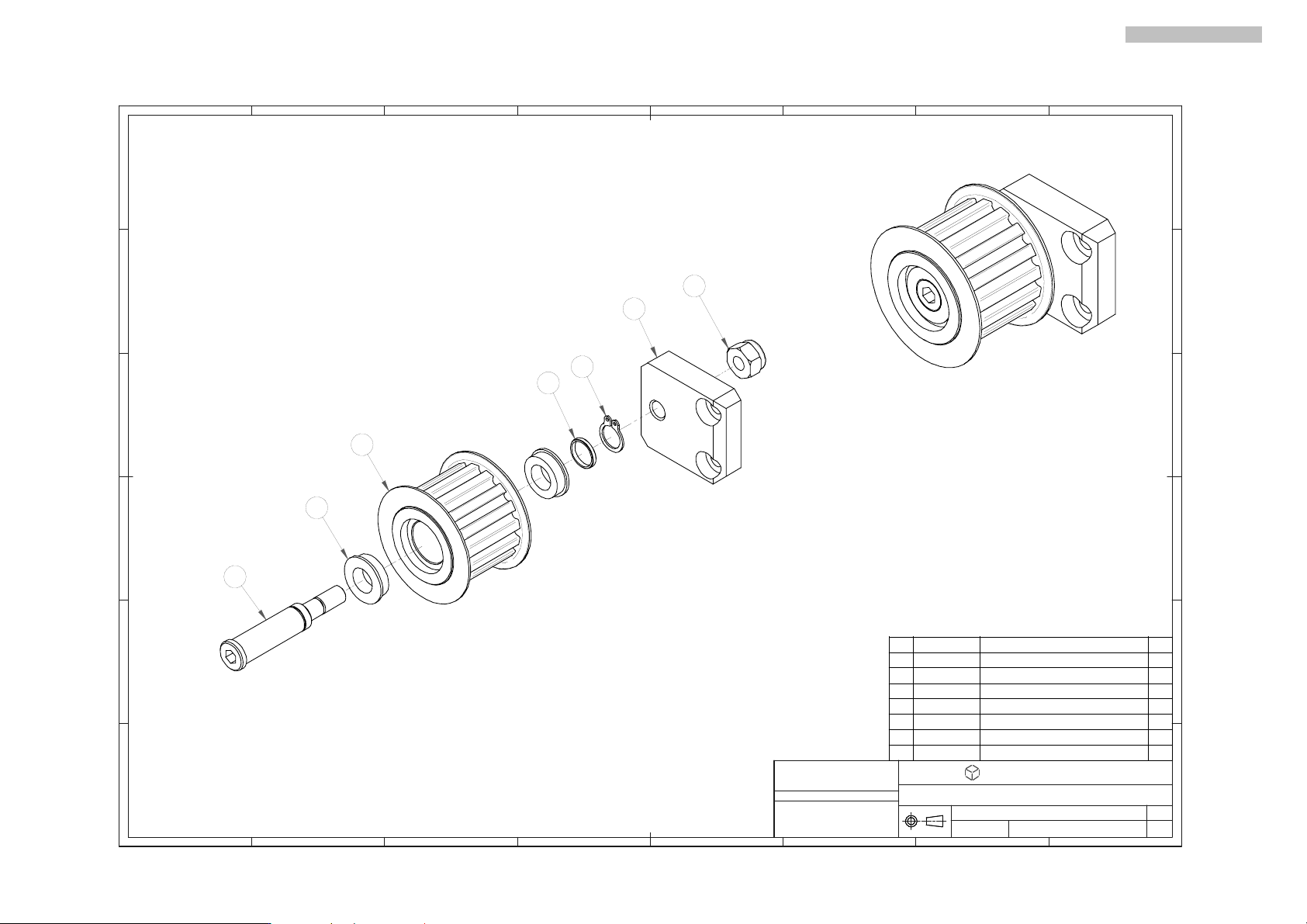

(WT83) WAFER TABLE
12-17
3.9 01-62979 (WT) EXPANDER INSIDE IDLER ASSY A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESI STORS ARE IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V
(WT) EXPANDER INSIDE IDLER ASSY
01-62979
CS-01-62979
11
FROM: 01-62979_A_2010.10.14
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 19-00009 RETAINING RING FOR SHAFT 6MM STWS6 1
2 21-60004 SELF LOCKING NUT M4 1
3 24-11113 BEARING MF106ZZS 2
4 26-E26603 (WT) BEARING SPACER (OD7, ID6, W1) 1
5 26-E26648 (WT) IDLER MNT 1
6 26-E97075 (WT) IDLER PULLEY SHAFT 1
7 26-F33802 (WT) TIMING BELT IDLER (HTD 5,16T,W16) 1
Assembly View
1
2
3
4
5
6
7
