6-1 Section 6 01-E04286 (EW83) AUX EPOXY WRITER D ASM CUST OM ER SE RV ICE DRAW ING AS M C USTO MER S ERV ICE D RAWIN G ASM CUST OMER S ERV ICE DRA WIN G ASM C USTOM ER S ERVICE DR AW ING ASM CUST OMER S ERV ICE D RAW IN…
6-1
Section 6 01-E04286 (EW83) AUX EPOXY WRITER D
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAW INGASM CUSTOMER S ERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO .
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRA WING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV

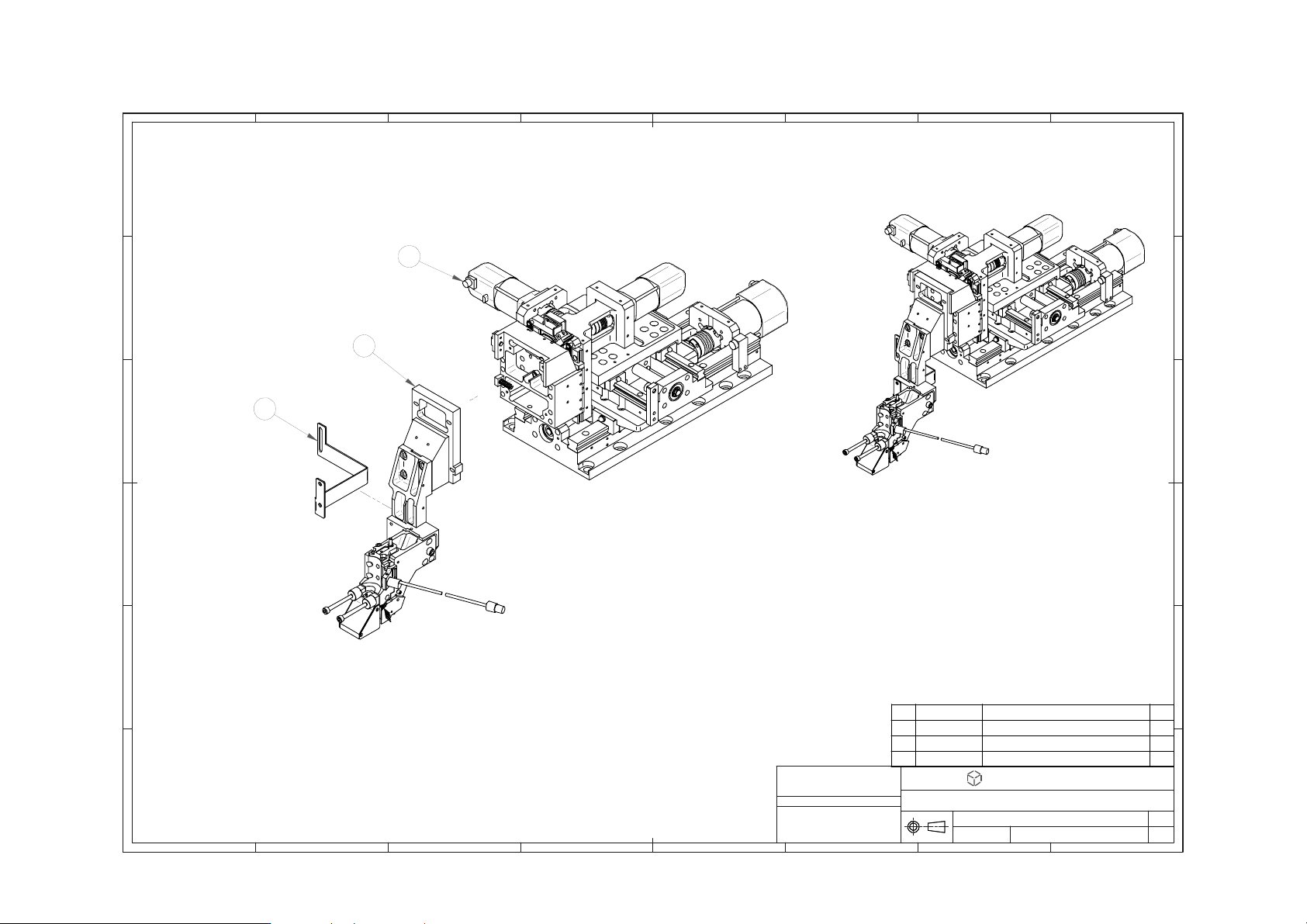

(EW83) AUX EPOXY WRITER
01-E04286
CS-01-E04286
11
FROM: 01-E04286_D_2011.02.24
D1
D
ITEM PART NO. DESCRIPTION QTY.
1 01-E04253 (EW83) AUX WRITING HEAD ASSY 1
2 01-E07582 (AEW83) EPOXY WRITER TABLE 1
3 26-F65970 AUX EW PACKING MNT 1
Assembly View
1
2
NOTE:The item 1 is not included in the assembly.
3
(EW83) AUX EPOXY WRITER
6-2
1 01-E04253 (EW83) AUX WRITING HEAD ASSY D
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS AR E IN
Ω
ALL DIM ARE
IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG RE V

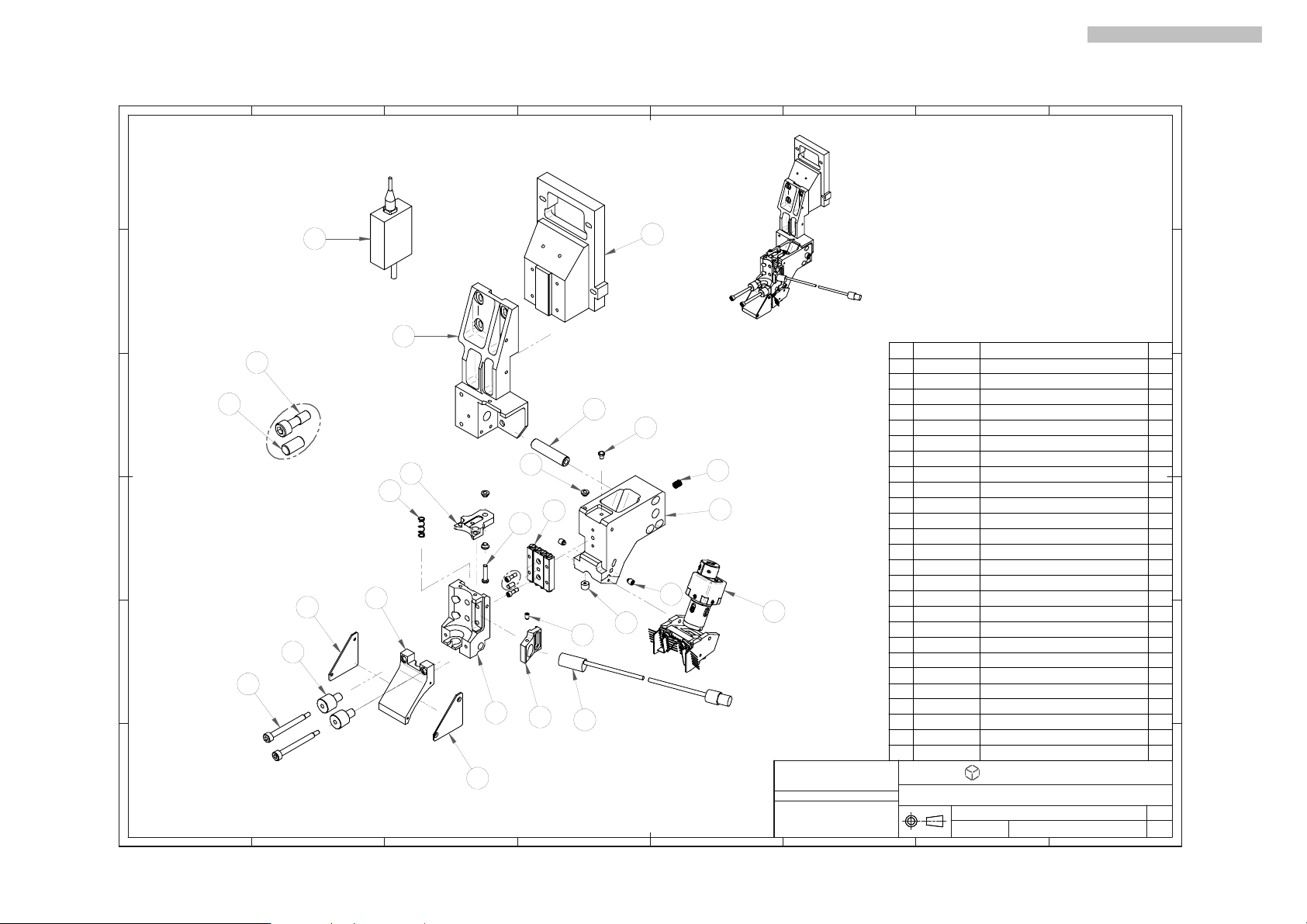

(EW83) AUX WRITING HEAD ASSY
01-E04253
CS-01-E042 53
11
FROM: 01-E04253_F_2011.02.09
F1
F
ITEM PART NO. DESCRIPTION QTY.
1 01-E04292 (OE83) EPOXY OPTICS 1
2 02-74524 CAPACITIVE SENSOR LCA-10-8-NF 1
3 02-74525 (EW) EPOXY LEVEL SEN AMP ASSY 1
4 20-71470 NYLON TIPPED SOC SET SCREW M3X4 1
5 20-71509 SOC SET CUP SCREW M4 X 4 NYLON TIP 2
6 24-40076 CROSS ROLLER WAY CRWM2-30 1
7 26-43041 (EW) M2.6 X-ROLLER SCREW 2
8 26-44179 (EW) CONTACT MUSHROOM 1
9 26-44180 (EW) CONTACT SENSOR STOPPER 1
10 26-63821 (EW) SYRINGE BRACKET (PROG CAM MNT) 1
11 26-E18233 LED COVER LEFT 1
12 26-E18234 LED COVER RIGHT 1
13 26-F22610 (EW) AUX Z-SLIDING BRACKET 1
14 26-F46310 (EW83) SYRINGE HOLDER 1
15 26-F52723 (EW) M4 STUD SCREW 2
16 26-F52735 (EW83) SENSOR MOUNTING 1
17 26-F52742 (EW83) REFLECTIVE PANEL 1
18 S26-48997 (EW) SPRING 2(Y) 1
19 S26-E01893 COMPRESSION SPRING 1
20 S26-E03536 (EW) INSULATOR 3
21 S26-E03538 (EW) SPRING CAP 1
22 S26-E05334 (EW) PIVOT 1
23 S26-E05338 (EW) V-BLOCK SUPPORT 1
24 S26-E05339 (EW) X-ROLLER LOCATING PIN 1
25 S26-E11618 (EW) Z-BRACKET 1
26 S26-F93195 (EW) LOCK 2
Assembly View
4
5
6
8
9
10
11
12
13
14
15
16
17
2
3
18
19
21
22
23
25
26
A
DETAIL A
7
24
1
20
