SECTION 8
Part No Description Rev Page
01-E06243 (BH83) BOND HEAD - THERMAL CONTROL A 8-1
01-E06244 (BA83) LARGE BF ROTARY BA D 8-3
01-E06246 (BH83)LARGE BF ROTARY BA ASSY (AC SERVO) C 8-4
01-E06245 (BH83) LINEAR BONDHEAD C 8-5
8-1
Section 8 01-E06243 (BH83) BOND HEAD - THERMAL CONTROL A
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 345678
87654312
B
A
C
D
E
F F
E
D
C
A
B
CS DW G NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN
µ
F
ALL RESISTORS ARE IN
Ω
ALL DIM A
RE IN mm
UNLESS OTHERWISE SPECIFIED
ASM
Assembly Automation Ltd.
A S M
DWG REV
(BH83) BOND HEAD - THERMAL CONTROL
01-E06243
CS-01-E06243
21
FROM: 01-E06243_A_2010.12.10
A1
A
ITEM PART NO. DESCRIPTION QTY.
1 01-E04307 (PS83) PNEUMATIC PANEL ON BH 1
2 01-E06244 (BA83) LARGE BF ROTARY BA 1
3 01-E06245 LINEAR BONDHEAD (REAR WIRING/EXT SPRING) 1
4 01-E11206 BH COOLING FLOWMETER PANEL ASSY 1
5 02-63984 ELECTRO-PNEU REGULATOR CABLE ASSY 1
6 02-65018 LARGE BF BA SOLENOID 1
7 02-69218 (BH) VAC SNR ASSY 1
8 02-74857 (BH83) AIR RESERVOIR SWITCH SOL ASSY 1
9 02-76474 BH AIR FLOW MCW SNR CABLE ASSY 1
10 02-76475 BHZ COOLING SENSOR ASSY 1
11 02-76476 BHY COOLING SENSOR ASSY 1
12 02-76477 BA COOLING FLOW SENSOR ASSY 1
13 02-76734 (BH83) AIR RESERVOIR SWITCH SOL ASSY 2 1
14 02-77407 (BH) VAC SOL 1
15 02-77408 (BH) STRONG BLOW SOL 1
16 02-77409 (BH) WEAK BLOW SOL 1
17 02-E02553 (WH) WAFER ID FIBER SENSOR CABLE 1
18 26-43117 FILTER HOUSING 1
19 26-43118 FILTER HOUSING COVER 1
20 26-53626 VACCUUM PIPE 1
21 26-53627 PCB MOUNTING 1
22 26-E41835 VACUUM SENSOR MOUNT (ERECT TYPE) 1
23 26-E82682 VACUUM SOLENOID MOUNT 1
24 26-F31598 BF SOL/REGULATOR MOUNTING 1
25 26-F33985 AIR TANK CLAMP 2
26 26-F34531 BH SOL/REG MOUNT 1
27 26-F39373 PLASTIC AIR TANK 1
28 26-F41887 AIR RESERVOIR SOL MOUNT 2 1
29 26-F48080 BH AIR FLOW SENSOR MOUNT 1
30 26-F56408 BA PACKING MOUNTING 1
31 26-F60055 LOTUS-S B/H Y PACKING MOUNTING 1
32 26-F65892 WAFER ID SENSOR MOUNT 1
33 31-40136 CONNECTOR KQ2H06-01S 2
34 31-40154 STRAIGHT TUBE FITTING CPPE3-M5 2
35 31-40158 MALE ELBOW CONNECTOR KQL04-M5 4
36 31-40174 FITTING MALE ELBOW KQL06-M5 16
ITEM PART NO. DESCRIPTION QTY.
37 31-40313 ONE-TOUCH FITTING KQL08-02S 1
38 31-40536 PUSH-IN FITTING KQT06-M5 1
39 31-40719 MALE ELBOW FITTING KQ2L06-02S 1
40 33-30016 SPEED CONTROLLER AS1211F-M5-06 2
41 33-30037 SPEED CONTROLLER AS1211F-M5-04 1
42 33-30049 PRESSURE REGULATOR LRMA-QS-6 2
43 33-40043 AIR RESERVOIR VZS-0.1 1
44 33-40045 VACUUM EJECTOR ZH10DS-01-01-01 1
45 33-40114 SILENCER AN120-M5 [23A1] 4
46 33-40175 VACUUM FILTER ELEMENT VFFE15 1
47 72-15014 O-RING 1.5 X 14 ID MM 1

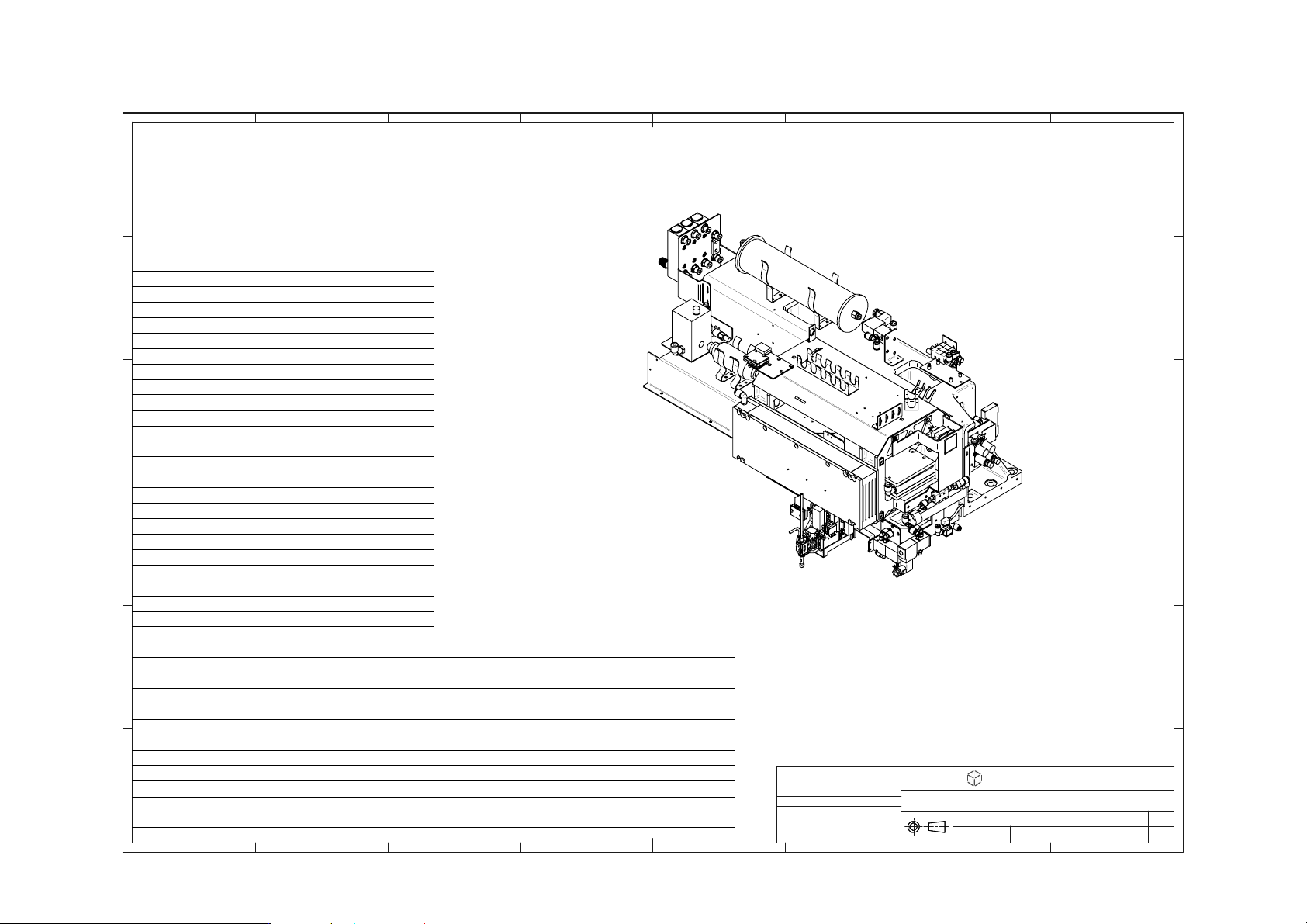

Assembly View
NOTE:The exploded view is on the page 8-2
