- 14 -
4.6. Component Placement Accuracy at X, Y and θ
*1 The regulated value of a component to be recognized with laser is “Cpk ≥ 1.”
*2 The placement accuracy that can be obtained when a placement position is corrected by
recognizing component image shall be the absolute value from the component reference
mark or PWB reference mark.
*3 The placement accuracy of a 0402 component described below is realized if local fiducial
marks are used, the distance between two marks is 20 mm or less, and a 0402
component is placed within the mark.
Placed positions (X, Y)
(Unit:μm)
Laser
Vision (VCS)
LNC60 FMLA
VCS
(when an LNC60 head is
used)
VCS
(when an IC head is used)
Square chip
0402, 0603
± 50 ― ― ―
Square chip
1005 or bigger
± 50 ± 50 ― ―
QFP
(Pitch: 0.5, 0.4, 0.3)
± 40
(When a component
positioning mark is used)
± 30
(When a component
positioning mark is used)
Placed posture (
θ
)
(Unit:°)
Laser
Vision (VCS)
Size LNC60 FMLA
VCS
(when an LNC60
head is used)
VCS
(when an IC head
is used)
Square chip
0402
±
5.0
―
― ―
0603 ±3.0 ―
1005
±
2.5
±
2.5
1608 or more
±
2.0
±
2.0
QFP
(Pitch: 0.5, 0.4, 0.3)
50 mm or more
―
―
－
±
0.04
From 40 mm to less
than 50 mm
― ― － ±0.05
From 30 mm to less
than 40 mm
― ― ± 1.11 ±0.07
From 20 mm to less
than 30 mm
― ― ±0.12 ±0.1
From 10 mm to less
than 20 mm
― ― ±0.22 ±0.2
10 mm or less
―
―
±
0.33
±
0.3
Adjacent pitch
- 0402: 0.15 mm
- 0603: 0.20 mm
- 15 -
4.7. Applicable PWBs
4.7.1. PWBs transport direction
Rightward flow (transporting from left to right, looking from the front side)
Leftward flow (transporting from right to left, looking from the front side)
Note
：
This direction is set at the factory (Factory-set).
4.7.2. PWB sizes and Mass
1) PWB sizes
(Unit: mm)
Minimum size (L
1
x W
1
)
<See Note 1>
Maximum size (L
2
x W
2
)
<See Note 1>
Thickness T
L-PWB specification
50.0 x 30.0
(With function of automatically
adjusting the PWB width：
50.0 x 50.0)
410.0
×
360.0
0.3 to 4.0
L-Wide specification
510.0×360.0
XL-PWB specification
610.0×560.0
Note 1: “L” indicates the dimension in the board transport direction, and “W” indicates the direction
perpendicular with “L.” W/L should be 2 or less.
Note 2: Contact us for a notched board or board whose shape is irregular.
Note 3: A PWB whose reflection ratio is low may not be able to be detected regardless of its material
or color.
2) Maximum allowance of PWB mass :2,000 g
3) Allowable warpage of a PWB
0.2 mm or less per 50 mm area, and 1 mm or less for both upper and lower directions
(these values conform to the JIS B 8461 regulation.)
- 16 -

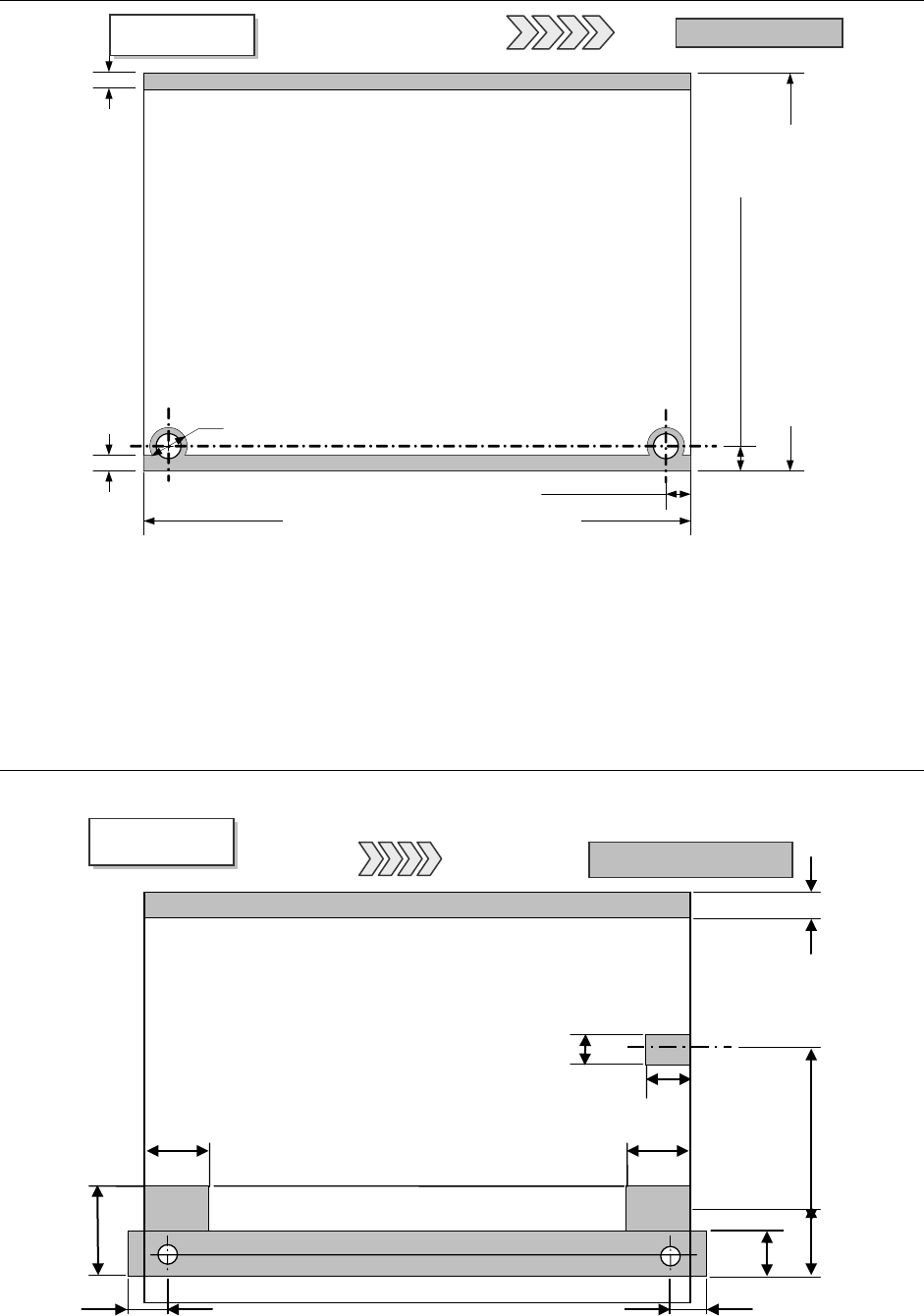

4.7.3. Unavailable areas for placing components on the board
Note 1: This is a size at shipments from the factory. Another restricted area is added when centering pin
(option) is used.
Note 2: Minimum board size becomes 50 mm when Automatic PWB transportation Width adjustment device is
attached on the machine.)
Figure 1
Unavailable areas for placing components
4.7.4. Unavailable areas for setting up the support pins
Note 1: Another restricted area is added when centering pin (option) is used.
Figure 2
Unavailable areas for setting up the support pins (Board size: L)
3 mm
3 mm
PWB
Top View
Unavailable areas
PWB
transportatio
L-PWB specification 30 to 360 mm *2
L-wide PWB specification 30 to 360 mm *2
XL-PWB specification 30 to 560 mm *2
5
±
0.1 mm
Customization 5 to 7 mm
（
(Factory-set) *1
6 mm (for pin diameter 4 mm)
5
±
0.1 mm
*1
L-PWB specification 50 to 410 mm
L-wide specification 50 to 510 mm
XL-PWB specification 50 to 610 mm
Board transportation rails fixed side
PWB
Bottom View
Unavailable areas
PWB transportation
26 mm *1
39.3mm
*1
26.5 mm *1
13 mm
26 mm *1
26.5 mm *1
20 mm
23 mm
22.6 mm
0 to187 mm
Flexible area
4.5 mm
Board transportation rails fixed side
