2 Brief Description
2.2 Scope of Delivery
55
SIPLACE SX1/SX2 with serial number from Nxxxx onwards:
These machines require Prepare Kit [03105008-xx] for machines with an X-module upgrade.
Quant-
ity
Prepare Kit [03105008-xx] Item No.
1 Positioning control for the gantry axes MGCU-2 03117531-xx
1 MGCU carrier complete 03122459-xx
1 Vision Hotlink Adapter VHA 03050555-xx
1 Trailing cable interface 03064127-xx
1 Support for trailing cable interface complete 03068747-xx
1 C-parts trailing cable interface support 03094645-xx
4 Label grounding point GNYE d12.5 00341997-xx
1 GR Y trailing cable vacuum complete 03075584-xx
16 ISO 4762 - M 5 x 18-8.8-E2J 03080697-xx
1 Plastic case with foam insert 03081445-xx
1 Support for MGCU rear complete SX1/2 03122405-xx
4 Secondary section 03064172-xx
1 Cable set for gantry 2 SIPLACE SX12 03052290-xx
SIPLACE SX1/SX2 with serial number from Pxxxx onwards:
These machines require Prepare Kit [03138211-xx] for machines with MGCU 3 (full mode).
Quant-
ity
Prepare Kit [03138211-xx] Item No.
1 Positioning control for the gantry axes MGCU-3 03103477-xx
1 MGCU carrier complete 03122459-xx
1 Vision Hotlink Adapter VHA 03050555-xx
1 Trailing cable interface 03064127-xx
1 Support for trailing cable interface complete 03068747-xx
1 C-parts trailing cable interface support 03094645-xx
4 Label grounding point GNYE d12.5 00341997-xx
1 GR Y trailing cable vacuum complete 03075584-xx
16 ISO 4762 - M 5 x 18-8.8-E2J 03080697-xx
1 Plastic case with foam insert 03081445-xx
1 Support for MGCU rear complete SX1/2 03122405-xx
4 Secondary section 03064172-xx
1 Cable set for gantry 2 SIPLACE SX12 03052290-xx
1 Cable set Full Mode SX12 03138304-xx
2 Brief Description
2.3 Tools and Equipment Required
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
56
2.3 Tools and Equipment Required
●
Torque wrench 6Nm with socket-head adapter SW 4 and 8
●
Spacer for Y magnets [03065304-xx]
●
Emergency kit for magnets:
– Plastic wedges [03097870-xx]
– Copper hammers [03097897-xx]
Circuit diagram folder for your machine:
●
Detailed circuit diagrams folder for SIPLACE SX1/SX2/DX1/DX2 (up to Kxxxx)
[DE+EN:00196475-xx]
●
Detailed circuit diagrams folder for SIPLACE SX1/SX2 V2 (from Lxxxx)
[DE+EN:00196979-xx]
●
Detailed circuit diagrams folder for SIPLACE SX1/SX2 V2 (from Nxxxx)
[DE+EN:00197899-xx]
2.4 Required Working Time
The complete installation will take approx. 3 hours.
The machine standstill time is approx. 4 hours.
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
3 Fitting the Prepare Kit
3.1 Preparations at the Machine
57
3 Fitting the Prepare Kit
3.1 Preparations at the Machine
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}48].
► Remove the changeover table from location 2.

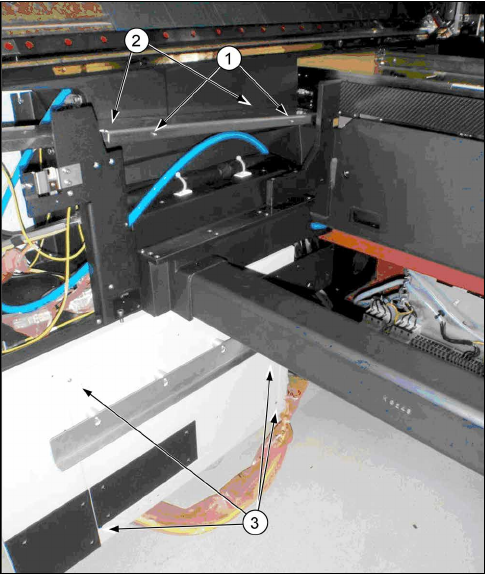

Fig.6: Removing the covers
1. Side cover
2. Trailing cable cover
3. Cover on infrastructure box
► Remove the side cover(1) and the trailing cable
cover(2) from the left side of the location.
► Remove the inner cover on the infrastructure box
(3).
